Learn to Use Flickr Photos in the Map Tour Story Map

By Bern Szukalski
Esri Technical Evangelist

Want to use Flickr photos in your Map Tour story maps?

It's easier than ever thanks to some recent updates to the Map Tour story map template available in ArcGIS Online. Here's how to do it.

Step 1: Author and save a map

To create a map tour using Flickr photos, first author and save a new web map in ArcGIS Online. Click Share to make the map available to others in your organization or publicly, then click Make A Web Application.

______________

Step 2: Choose the Map Tour template

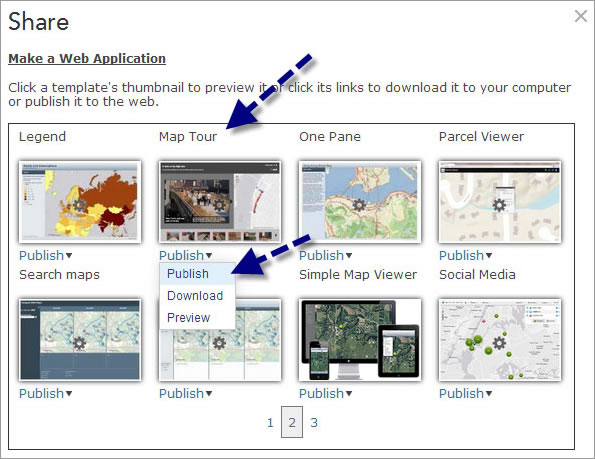

You will currently find the Map Tour story map template on the second page of the Make A Web Application gallery. From the drop-down list under the template, choose Publish:

______________

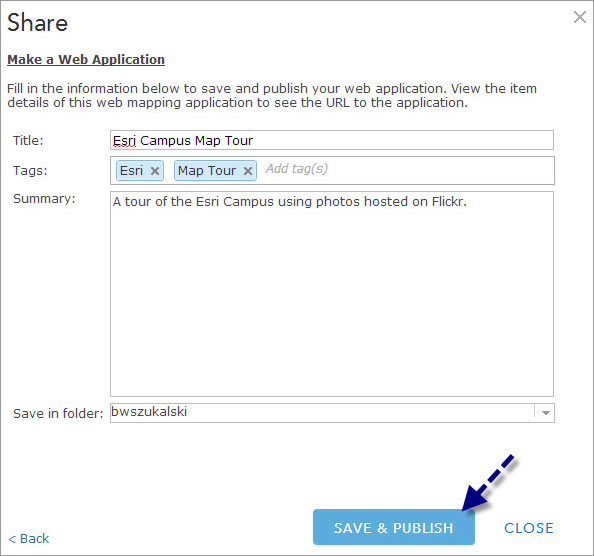

Next, add a title, tags, and summary and then click Save & Publish.

______________

You have successfully published your web application. Now you can begin to configure your map tour.

Step 3: Start to configure your tour with Map Tour Builder

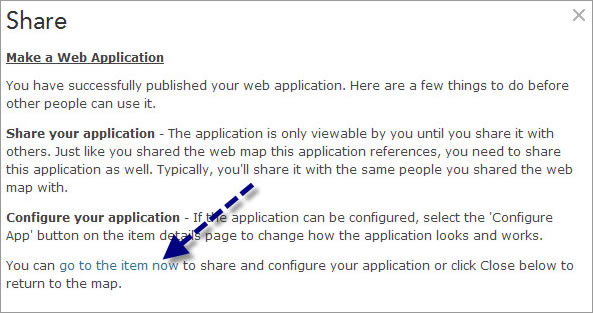

Your application is now an item in My Contents. You can go to the item now by clicking the link in the Share dialog box (which appears immediately after you click Save & Publish) as shown below:

______________

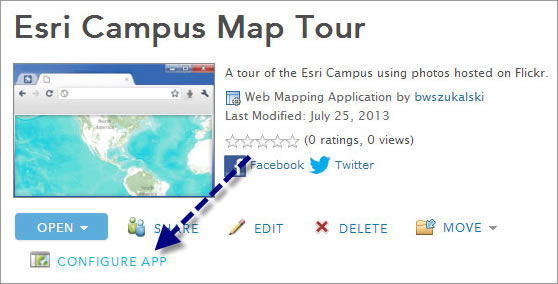

Or you can open the item later. When you are ready to add your Flickr photos, go to the item and click Configure App:

______________

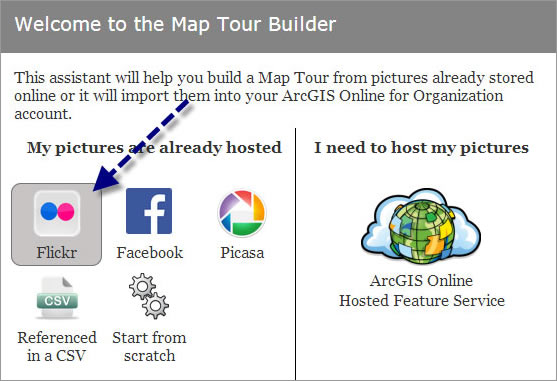

The Map Tour Builder will open automatically. Choose Flickr under the My pictures are already hosted section:

______________

Step 4: Add Flickr photos

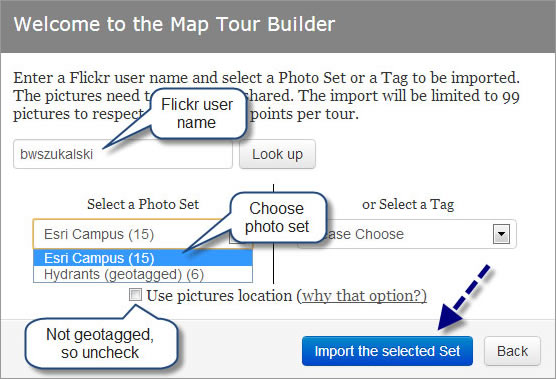

For the purposes of this tip, a map tour of the Esri campus will be created. To start, enter a Flickr user name and choose Look up. The drop down list will display all available photo sets. Choose a set and then click Import the Selected Set.

The photos in this set are not geotagged, so you can place them by dragging and dropping them on the map. Uncheck the Use pictures location to ensure that if the photo set has a location, it is not used for all photos.

______________

Step 5: Use the Map Tour Builder to place photos on your map

The photos from your selected set will be displayed in a list; select a photo and place it interactively on the map. You can adjust the location of photos by clicking and dragging the symbol, and you can edit locations, photos, and symbols later if desired.

______________

Click Import when you finish.

Step 6: Complete your map tour configuration

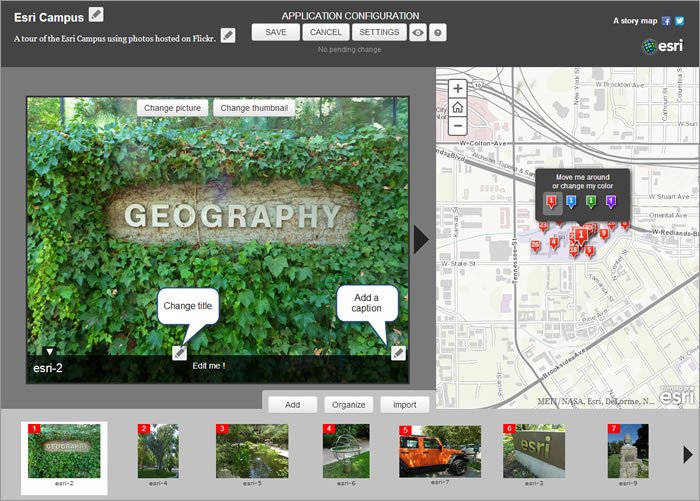

You've successfully added your photos to your map. You can make other edits while in application builder mode to complete your tour. You will want to add titles and captions for your photos. You can also reorder them, change the symbol, adjust the location, set the map zoom extent, change the color scheme and layout, add a logo, and more. Experiment with the various options to learn more about what you can do.

______________

Once completed, click Save. Now you are ready to share your map tour with others.

Note that as the owner of the application, you can enter builder mode to make changes and edits at any time. Open the item and click Switch to builder mode in the upper right corner of the app. This button won't appear unless you are the tour owner.

______________

Add geotagged photos from Flickr

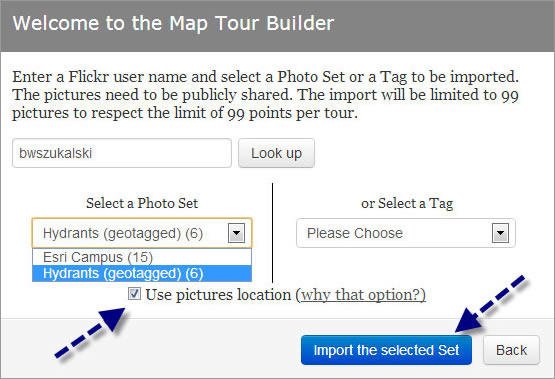

To add geotagged photos from Flickr, follow the same steps as above until step 4. At step 4, select the photo set with the geotagged photos, and make sure Use picture location is checked. All the geotagged photos will be placed on the map using the location information stored in the photo. You can drag and drop the pictures that aren't geotagged.

______________

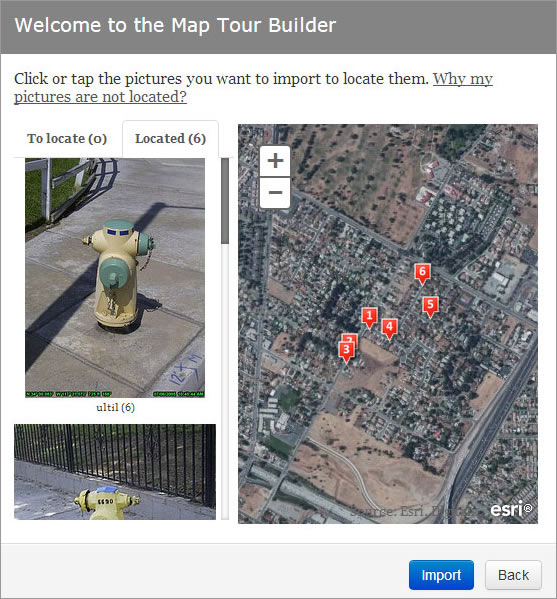

In this example, a set containing geotagged photos has been automatically placed on the map. Click a symbol to select and adjust the photo location if needed. If photos in the set were not geotagged, they will appear in the To locate tab and can be placed interactively, as described in step 5 above.

______________

Follow the instructions in step 6 to complete and save your map tour.

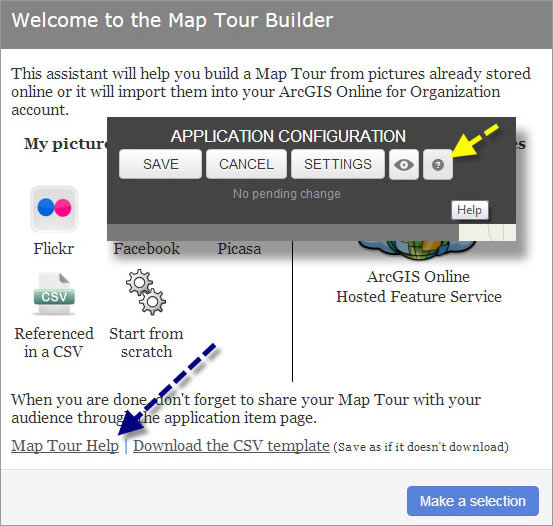

Visit Map Tour Help found in several places in the Map Tour Builder application for more information.
