ArcWatch: Your e-Magazine for GIS News, Views, and Insights

October 2008

Abandoned Coal Mine Reclamation Group Designs GIS Application to Target High-Priority Areas in Pennsylvania

Organization Promotes the Use of GIS for Mine Cleanup

By Matthew DeMeritt, Esri Writer

Abandoned coal mines cover hundreds of thousands of acres throughout the eastern United States. It is important to have accurate maps of the mined areas in order to keep those involved in mine cleanup spatially informed.

  click to enlarge

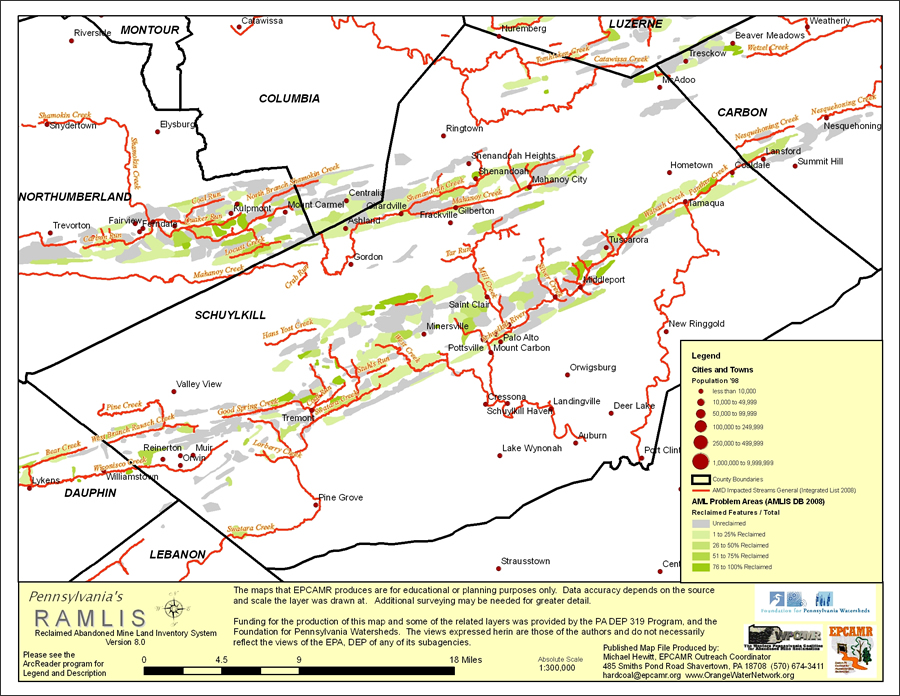

A map showing the streams impacted by pollutant run-off from an abandoned mine in Shuylkill County, Pennsylvania.

In Pennsylvania, a regional nonprofit abandoned mine reclamation group is promoting the use of a state-of-the-art GIS mapping tool to assist in the reclamation of mined-out land. The tool, created by the Eastern Pennsylvania Coalition for Abandoned Mine Reclamation (EPCAMR), has proven successful in maximizing the limited funds available for restoring this blighted land to its approximate premined state.

As recently as 30 years ago, coal mine companies weren't required to clean up and restore the land they excavated. Streams ran orange, green, and white with heavy metals leached from nearby mines. Strip pits with sheer cliffs were a hazard, causing many people to fall to their deaths. Pennsylvania was left with more than 200,000 acres of mine-scarred land and 5,000 miles of polluted streams. As the impact of surface mining became evident in the mid-1970s, Congress passed the Surface Mining Control and Reclamation Act (SMCRA) in 1977. SMCRA attached a per-ton fee to all extracted coal to create an interest-accruing federal reclamation fund. The fund is maintained by the U.S. Office of Surface Mining (OSM) and is dispersed to states and Native American tribes that still face problems caused by coal mines abandoned before 1977.

Because Pennsylvania leads most states in the amount of reclamation that needs to be done, Congress in 2006 authorized an increase in Pennsylvania's reclamation allotment, providing $1.4 billion over the next 15 years. With so many abandoned mines still awaiting reclamation in Pennsylvania, EPCAMR sought a way to more efficiently pinpoint the areas in need of remediation. Although the new allotment will significantly increase the work that can be done, $1.4 billion still needs to go a long way.

With a grant from the Foundation for Pennsylvania Watersheds and an agreement with the U.S. Department of the Interior's Office of Surface Mining's Technical Innovation Professional Services (TIPS) Program, EPCAMR used Esri's ArcGIS Desktop software with the ArcGIS Publisher extension, to create a tool to keep track of abandoned mines. Called the Reclaimed Abandoned Mine Land Information System (RAMLIS), the application creates highly detailed maps at different scales with layers of information that help identify the areas most in need of remediation. RAMLIS also combines state, federal, and local data in maps that reveal all the components of each mine such as mine discharge points, backfilled stripping pits, and reclaimed mine shafts. To work safely and effectively, reclamation crews must know the locations of these features. Knowing the location of flooded voids, for example, can potentially save enormous expense—and even lives.

The dynamic, interactive maps assist reclamation efforts because they allow the public and local municipalities to understand what features are contained within a mine site and which features can be fixed using SMCRA funding.

Map Layers Tell Stories about Mines

  click to enlarge

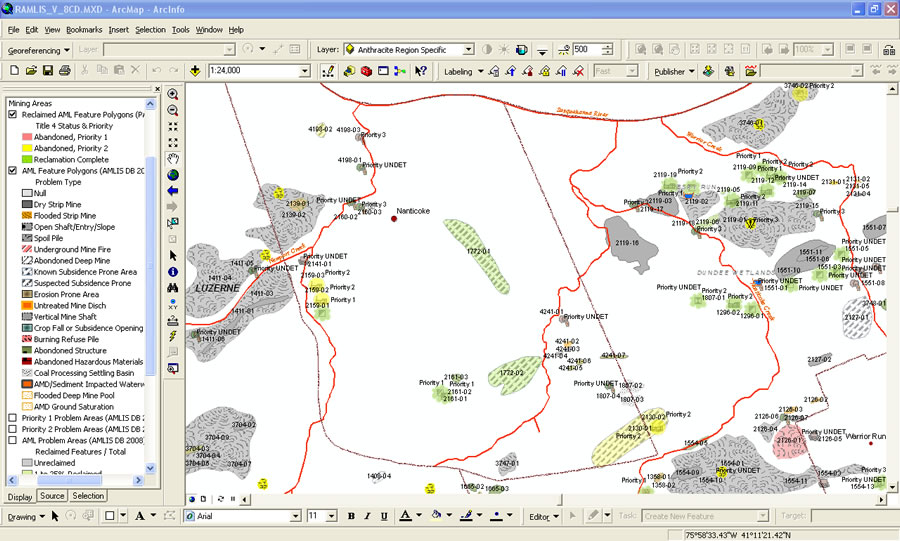

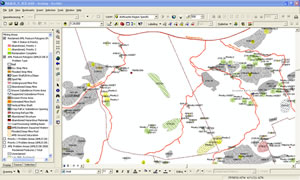

With the Status and Priority layer turned on, public officials can see the areas in their districts that require reclamation labeled by degree of priority. The Problem Type layer shows the specific hazards that are common in abandoned mines such as burning refuse piles and vertical mine shafts.

Map layers can reveal a multitude of problems caused by leaving mines unattended. For example, the quality of the water running off these sites is identified in a stream layer provided by the Pennsylvania Department of Environmental Protection (DEP) called the Integrated List of Waters. This layer shows streams that meet (or do not meet) their intended use because pollution from mining by-products seeps into the stream. By turning on this layer, users can see certain sections of stream that are impacted by mine drainage of heavy metals such as iron or aluminum into the stream. Toxic discharge from this runoff also decreases the pH to uninhabitable levels for fish and other aquatic organisms.

RAMLIS is also useful for civic management and land development. Elected officials can add their layers to this system for further analysis of a problem (e.g., input a tax parcel layer to examine neighborhoods for economic impacts because of local mine hazards). Local and county planning commissions use the program as a tool for land-use planning, stormwater and floodplain management, and a host of other development-related issues. The tool contains road centerlines; municipal, county, and watershed boundaries; full-color aerial photos; and land-use datasets as background data.

EPCAMR Hosts GIS Workshops

Recently, EPCAMR took its application on the road to demonstrate the benefits to municipal officials throughout northeastern Pennsylvania. The goal of the workshops was to show how GIS not only maximizes the value of reclamation budgets but also increases public awareness of mine hazards. In a flagging economy, and following a string of harrowing coal mine accidents in the past few years, EPCAMR's message couldn't have been more timely.

To show municipal planners and public officials what GIS is capable of, EPCAMR offered to produce up to three free maps for municipalities containing abandoned mines. One map was required to depict mined-out land while the content of the other two maps was left up to elected officials to decide. In a survey conducted after the tour, many of these municipalities responded that the new maps were helpful since the old maps used for planning and maintenance were an average of 15 years old. Several municipalities were also interested in obtaining their own GIS software and technicians.

"If we can convince public officials that are in charge of making sound land-use planning decisions for their communities, it might turn the light bulb on for them," says Robert Hughes, regional coordinator for EPCAMR. "We're trying to say, 'Let us show you how GIS can be used to effectively allocate a limited amount of funding and resources over time.'" GIS helps municipalities, as well as state and federal officials, by providing concrete evidence of potential health and safety hazards such as subsidence-prone areas. "Pollution from residual coal mine chemicals, illegal dumping, and land cave-ins are a real concern to some of these communities," continues Hughes. "GIS gives us the best solution to identify and respond to these problems on a local level."

To date, approximately 22,500 acres of mine lands in Pennsylvania have been cleaned up, and more than 280 mine drainage treatment systems are in place to treat polluted water. EPCAMR hopes the workshops in Pennsylvania continue to spread the GIS message to other organizations.

For questions regarding the use of GIS in mine reclamation, contact Robert Hughes or Michael Hewitt at 570-674-7993. To learn more about Pennsylvania's mine reclamation work, visit www.orangewaternetwork.org.
