DTU-2231 Solution

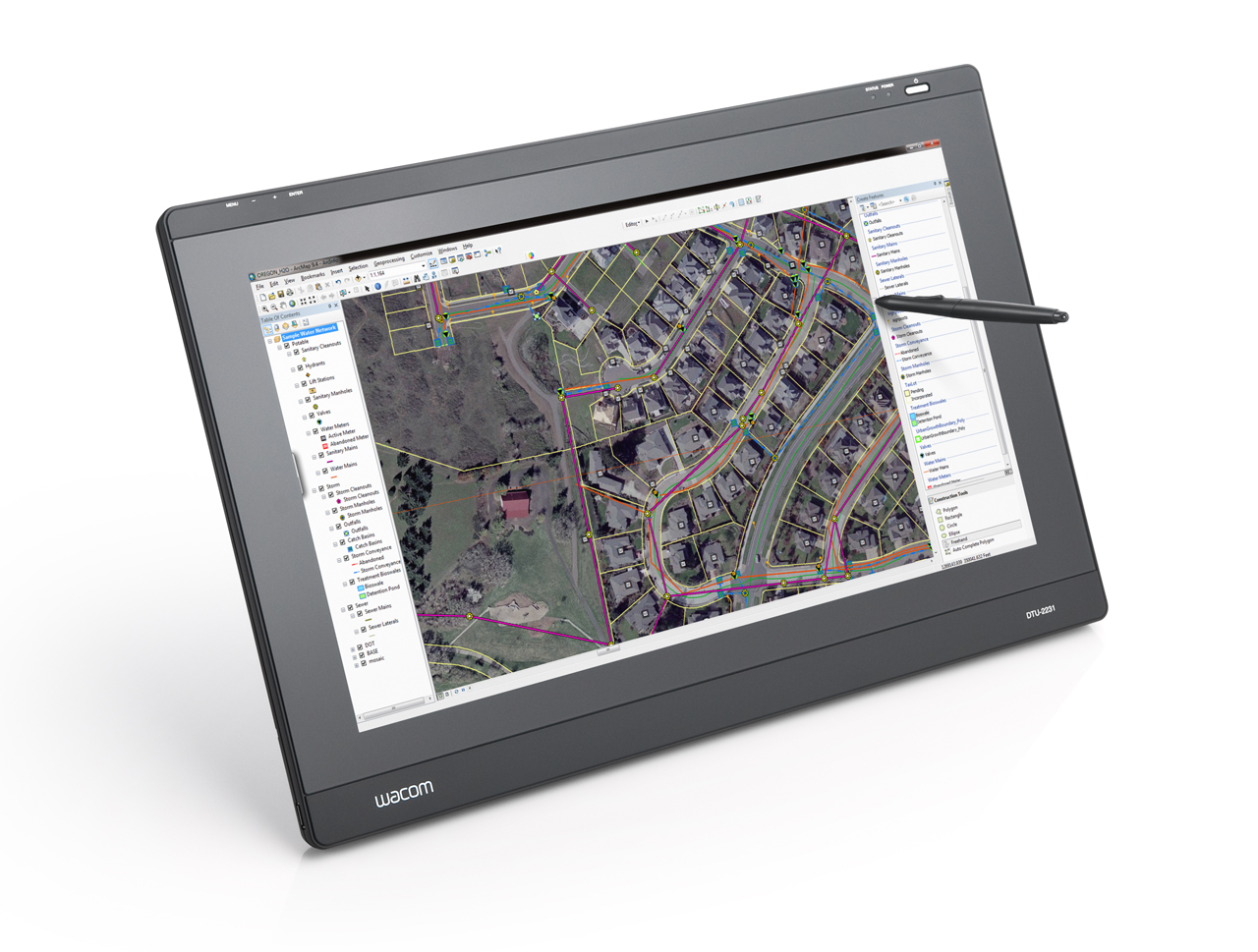

Wacom’s DTU-2231 interactive pen display provides a natural and efficient way to work. It combines a 21.5", full HD (1920 x 1080 resolution) widescreen LCD with Wacom's patented, cordless, battery-free pen technology. Using the pen directly on the display surface provides the benefits of an all-digital workflow while simulating a pen-on-paper experience.

The DTU-2231 can be used for sketch-based editing, heads-up digitizing, and red-lining in ArcGIS, as well as inputting handwritten annotations and comments. Because the pen is the input device, it provides cursor control in any software application. The Wacom pen display provides an extremely fast, efficient, and comfortable way for GIS professionals to work with their digital source materials.

Leveraging ArcGIS 10

ArcGIS 10 Feature Templates incorporate sketched-based editing for map creation and production. The concept of sketch is truly brought to life by utilizing a DTU-2231 pen display. The process becomes intuitive because you are literally drawing with a pen. Simply select the appropriate symbol from customizable on-screen feature templates and begin drawing. As you create, you create features, not graphics – ArcGIS manages the properties and attributes in the geodatabase. Map creation, feature extraction from raster imagery and vector editing are made simpler and faster.

Key Feature and Benefits

Intuitive to use.

• Take advantage of your natural hand-eye coordination to work more quickly in any software application.
• It replicates the pen on paper experience for writing, drawing, marking up.
• When navigating with absolute positioning, the cursor is exactly where you point on screen with the pen.

Natural control and accuracy.

• Wacom's patented pen technology uses electromagnetic resonance to provide pixel-level accuracy and 100% hand-rejection.
• Work with the pen on the screen—directly on your digital source files and documents.

Easy setup for productive communication.

• Built-in DVI-I pass-thru connector handles both digital and analog video signals and allows easy connection to second monitor or projector that mirrors pen display.
• Two integrated USB 2.0 ports provide easy access to USB devices.
• Integrated video scaler allows pen display to show input signals in their native resolution and/or aspect ratio.

Comfort.

• The 21.5" wide-format display provides a large yet comfortable workspace.
• The stand inclines between 15 degrees and 72 degrees so it can be set at a comfortable working angle.
• Textured, anti-glare surface reduces glare and simulates the feel of pen-on-paper.
• Completely flat surface allows the pen and hand to glide over the entire surface.

Custom configurations.

• Programmable side switches can be set to a variety of functions.
• Display Toggle feature allows you to control additional monitors from the pen display's surface.
• Driver software allows you to create universal settings for your display or alter your settings by application.
• Customizable radial menus put additional commands at your fingertips.

Superior performance.

• A full HD (1920 x 1080) resolution display for enhanced viewing.
• Hardened glass surface to provide durability and longevity.
• The LCD itself has been structured to eliminate any screen distortion when the pen tip is pressed against the surface.
• Wacom's pens are cordless and battery-free for superior reliability and performance.

Learn more about the DTU-2231 interactive pen display, or download the data sheet [PDF].
