What's new with Scene Layers (ArcGIS Pro 3.2)

  The scene layers team has been working on exciting new functionality for the ArcGIS Pro 3.2 release. Let’s take a look at some of these new features!

3D basemaps

  In local and global scenes, ArcGIS Pro supports adding 3D basemaps. Easily access this new functionality by opening a 3D scene and choosing one of the provided 3D basemaps in the basemaps dialog. Be sure to have an active portal connection to ArcGIS Online to access this functionality!

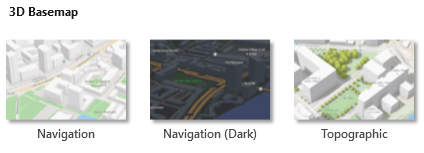

3D basemaps
List of 3D basemaps available in the basemap menu

  Once you have chosen a 3D basemap you will have access to a global 3D dataset based on open street map data. This includes realistic and thematic trees, untextured buildings and places and labels. For optimal performance, the 3D features will render once you zoom in.

  Want to mash up your own data with the 3D basemap? No problem! You can easily add a mask and add your own 3D content. In the example below I apply an exclude mask on the 3D buildings layer and then turn on a building scene layer to visualize the library with the surrounding buildings.

Apply mask to 3D basemap
Apply an exclude mask to the 3D buildings scene layer.

Relative to scene elevation mode

  When features are in the 3D category of a local or global scene you can leverage a new elevation mode relative to scene. This mode is for features that know where they are compared to the scene. These features align to the ground and 3D objects such as extruded polygons or buildings. For example, let’s say you have points that you would like to display on top of the building. Previously, these points would have to have Z values on top of the building or a field specifying the height. Now with relative to scene, the points will render on top of 3D objects even if they do not have Z values.

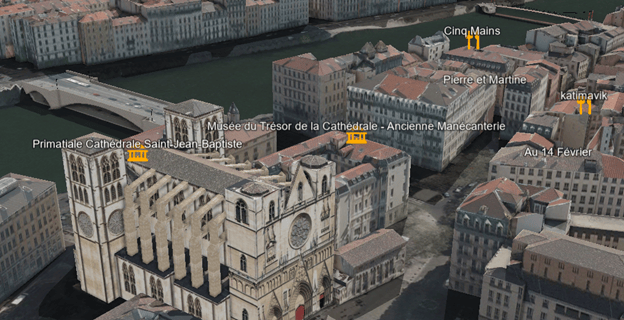

Relative to scene elevation mode
Points of interest with relative to scene elevation mode

Performance improvements

  At each release we strive to improve performance across the geoprocessing tools that we own. At this release we have improved performance considerably for the create point scene layer content tool and clip tools. For clip we focused on improving performance when using 3D object or point cloud scene services as input. For the create 3D object scene layer content tool we have improved texture performance when using the Mobile or All texture optimization performance. Take a look at the table below for some sample datasets and comparisons across the releases.

Tool Dataset ArcGIS Pro 3.1 ArcGIS Pro 3.2
Create 3D Object Scene Layer Content City of Pasadena textured buildings 14 mins 7 mins
Create Point Scene Layer Content Switzerland 80 million trees 10 hours 4 hours
Clip Point cloud service with 35 million points 45 mins 3 mins

Threshold angle

  A new property on mesh symbols has been added to enhance the look of 3D object features. Every 3D object consists of multiple faces, including a back and front side. The threshold angle is the minimum angle between the face normals at which the stroke is drawn, and the default value is 35 degrees. By enabling the apply threshold angle to both sides of faces option, the stroke is applied to both sides of the face. This will enhance the look of complex shapes and in the case below you can see the better delineation of the domes with this new property.

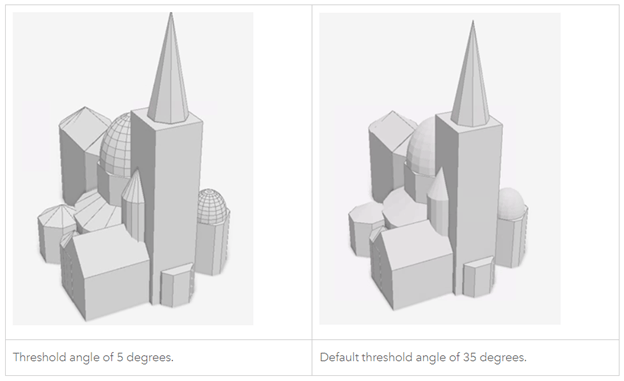

Threshold angle of a 3D object feature

Check out these new features and continue to add enhancement requests through technical support or ArcGIS ideas!
