How to Make Animated Maps with ArcGIS Maps for Adobe and Adobe After Effects

As designers, we have all had a project that required a map. And for those of us with limited cartography and GIS background, the process usually involves stitching together a series of screenshots, stock photography, or tracing a map from some kind of reference found online.

With ArcGIS Maps for Adobe Creative Cloud — a free extension for Illustrator and Photoshop — designers now have access to geographic data in a native format, making it easier to enhance storytelling around the data that actually connects us.

This blog is geared toward the design and communication professional and anyone else interested in learning how to create animated maps using ArcGIS Maps for Adobe and Adobe After Effects.

Download the data from this folder and follow the steps outlined in the blog, so you can actively practice and redesign your own animation.

In this example, we will walk through the process of how to access spatial content
from Adobe Illustrator to create and animate various ferry routes around NYC:

The ability to leverage geographic data to create maps to help enhance our storytelling is powerful and now available to designers.

The ease and flexibility offered by ArcGIS Maps for Adobe Creative Cloud gives motion graphic artists access to spatial data content to create maps for use in post-production. It moves a design and communications professional from the role of data spectator to a more hands-on role where the data is accessible in a familiar format.

Part 1:
Launching ArcGIS Maps for Adobe Creative Cloud
from Adobe Illustrator

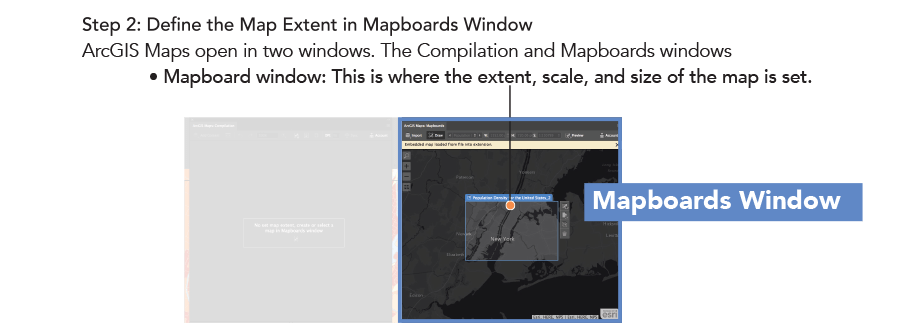

Watch Part 1  Step-by-Step

How to Make Animated Maps with ArcGIS Maps for Adobe and Adobe After Effects
How to make Animated Maps in ArcGIS Maps for Adobe

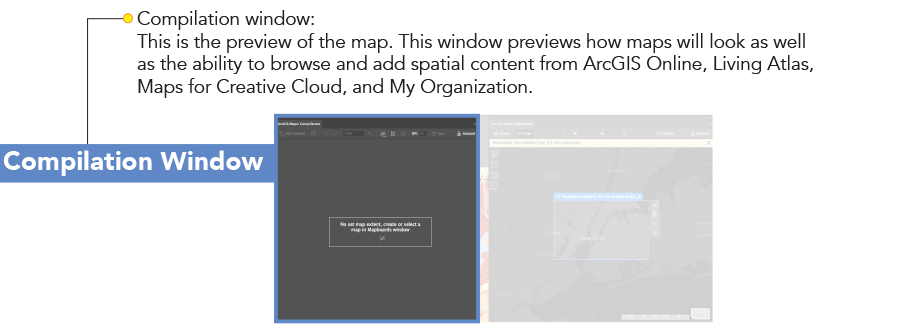

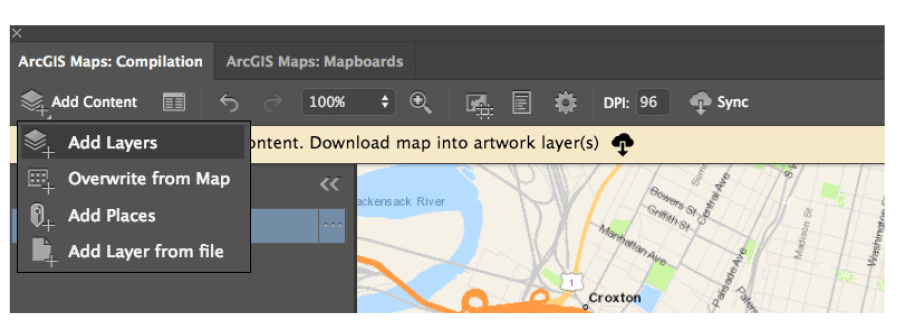

Step 3: With the Map extent selected Add Spatial Content in the Compilation Window

How to make Animated Maps in ArcGIS Maps for Adobe and Adobe After Effects

Step 4: Add Population Density layer

How to make Animated Maps in ArcGIS Maps for Adobe and Adobe After Effects

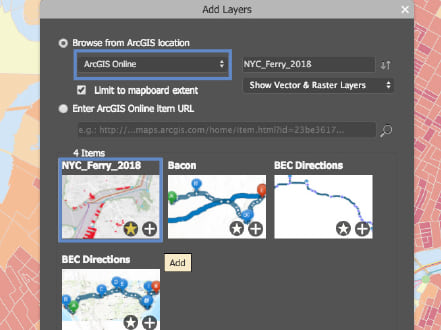

Step 5: Add NYC Ferry routes

How to make Animated Maps in ArcGIS Maps for Adobe and Adobe After Effects

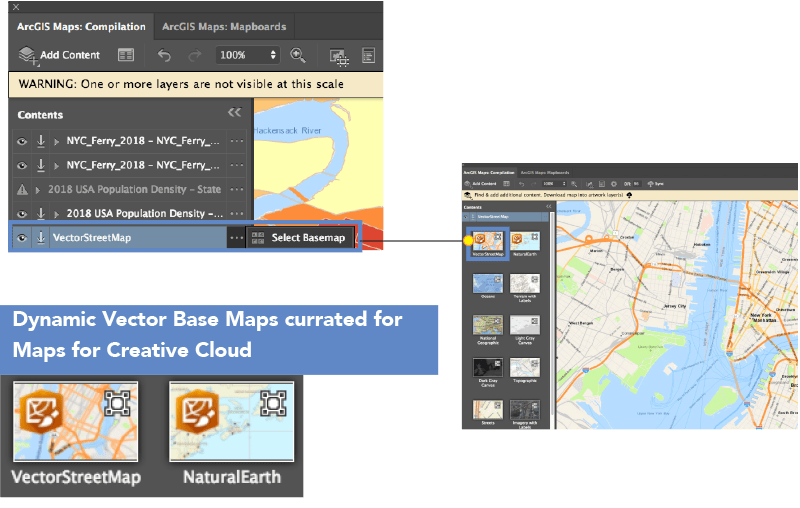

Step 6: Select a basemap

How to make Animated Maps in ArcGIS Maps for Adobe and Adobe After Effects

Step 7: Sync Export to Illustrator

How to make Animated Maps in ArcGIS Maps for Adobe and Adobe After Effects

Part 2: Prepping files for animation in Adobe Illustrator

Watch Part 2 Step-by-Step

The following steps will cover the file prep in Adobe Illustrator prior to importing into Adobe After Effects.

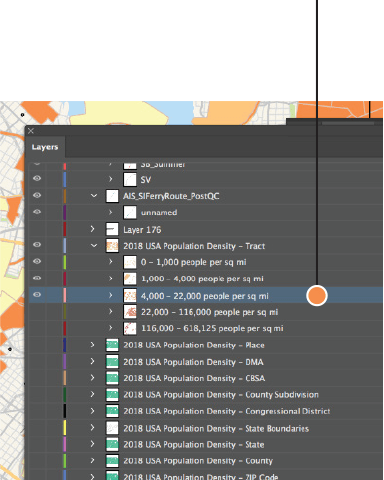

Step 1:
Based on your storyboard, determine the layers slated for animation.

How to make Animated Maps in ArcGIS Maps for Adobe and Adobe After Effects

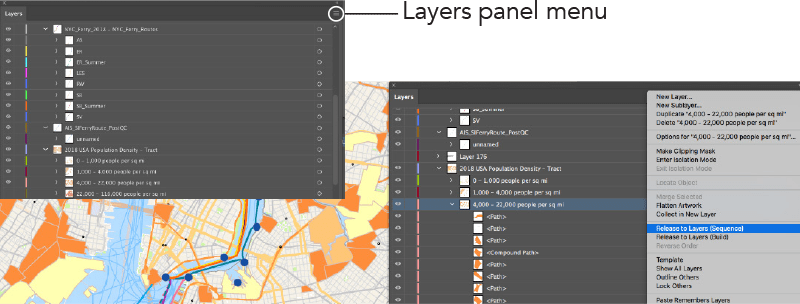

Choose “Release To Layers (Sequence)” from the Layers panel menu to release each item to a new layer.

With the “4,000 – 22,000 people per sq mi” layer selected, choose “Release To Layers (Sequence)” to break out the elements into individual layers. This will allow for each element to be imported into After Effects as an individual layer.

How to make Animated Maps in ArcGIS Maps for Adobe and Adobe After Effects

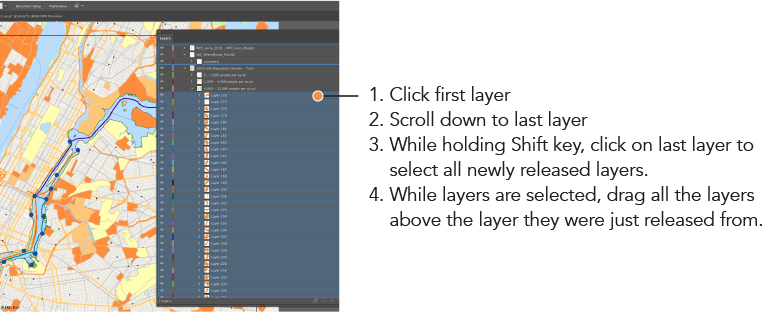

Step 2:
Select all the new layers and move them all above the layer they were just released from

How to make Animated Maps in ArcGIS Maps for Adobe and Adobe After Effects

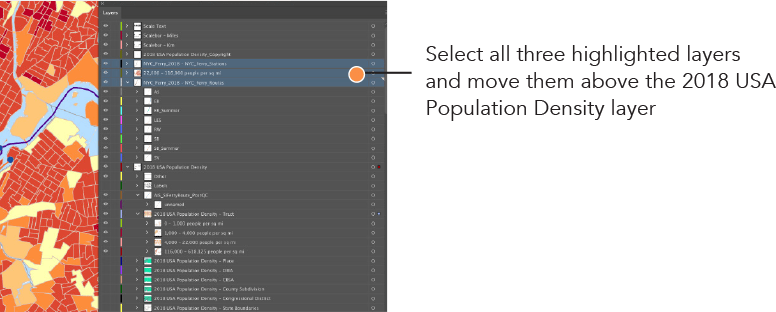

Step 3:
Now we will move the layer order for the following three layers:

1. 22,000-116,000 people per sq mi
2. NYC_Ferry_2018 – NYC_Ferry_Stations
3. NYC_Ferry_2018 – NYC_Ferry_Routes

How to make Animated Maps in ArcGIS Maps for Adobe and Adobe After Effects

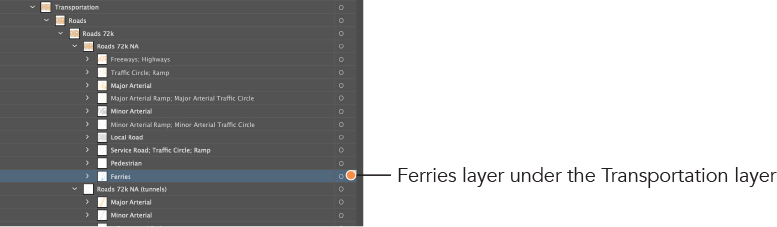

Step 4: The last layer to be moved is the Ferries layer from the basemap.

How to make Animated Maps in ArcGIS Maps for Adobe and Adobe After Effects

Part 3:Importing and animating in After Effects

Watch Part 3 Step-by-Step

The following steps will cover importing the elements into Adobe After Effects:

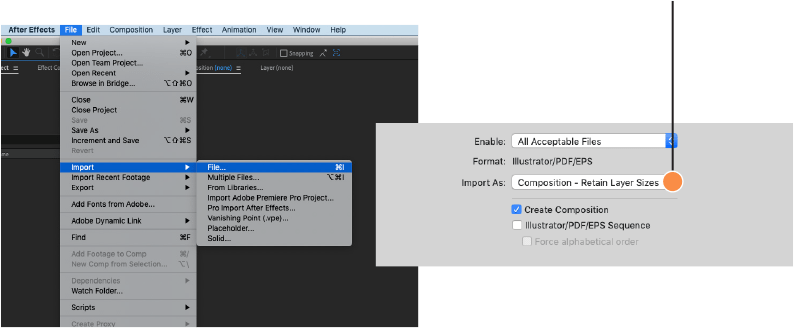

STEP 1:

  1. Under: File > Import > File
  2. Select your Illustrator file and Import As > Composition- Retain Layer

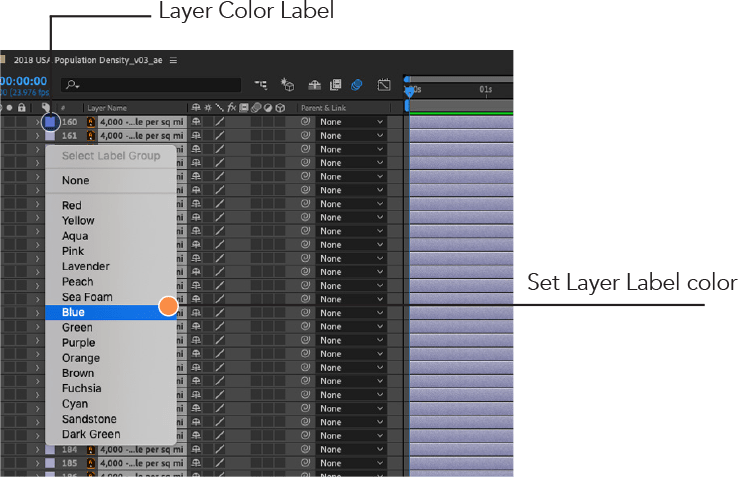

Changing layer label color

STEP 2:

  1. Select all 4,000 – 22,000 layers, by cliking on the first layer (4,000 – 22,000 Start) > holding shift> clinking on the last layer (4,000 – 22,000 Start End).
  2. With all 4,000 – 22,000 layers selected > click on the layer Label color and change all layers colors to blue
  3. While still selected move all the layers up in the timeline by holding command + ]
How to make Animated Maps in ArcGIS Maps for Adobe and Adobe After Effects

Sequencing the Layers

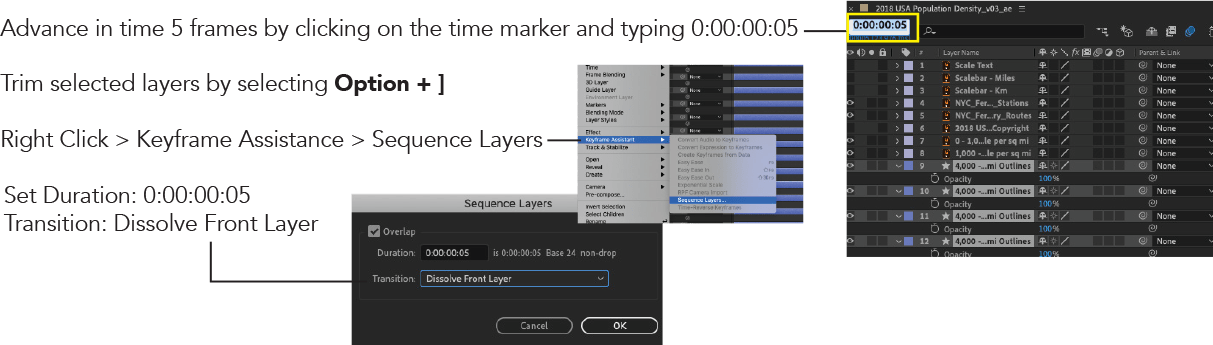

STEP 3:

The following steps will cover sequencing of the layers.

How to make Animated Maps in ArcGIS Maps for Adobe and Adobe After Effects

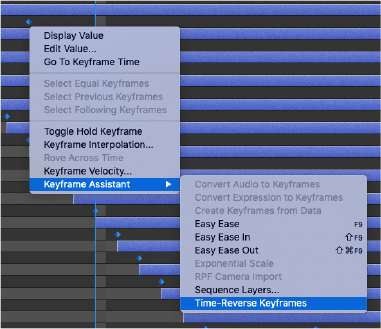

Time-Reverse Keyframes

Since we want to reveal the layers and extend the duration on screen, we will have to select all the opacity key frames and Time-Reverse the Keyframes.

STEP 4:





How to make Animated Maps in ArcGIS Maps for Adobe and Adobe After Effects

Step 5:

Animating a population data layer with an animated Luma Matte.

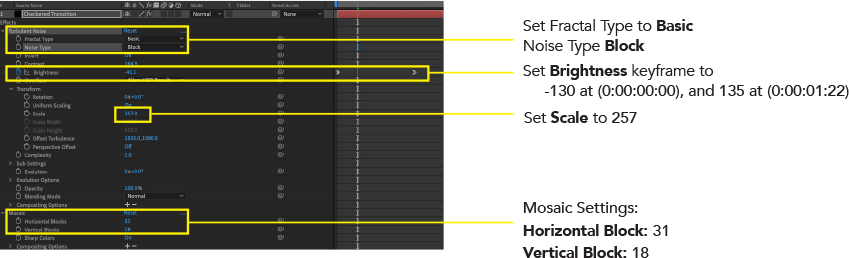

Step 6:

The following steps will cover how to create an animated mask in Adobe After Effects:

A. Select Effect > Noise and Grain > Turbulent Noise

B. Effect > Stylize > Mosaic

C. Apply the following setting and Keyframes

How to make Animated Maps in ArcGIS Maps for Adobe and Adobe After Effects

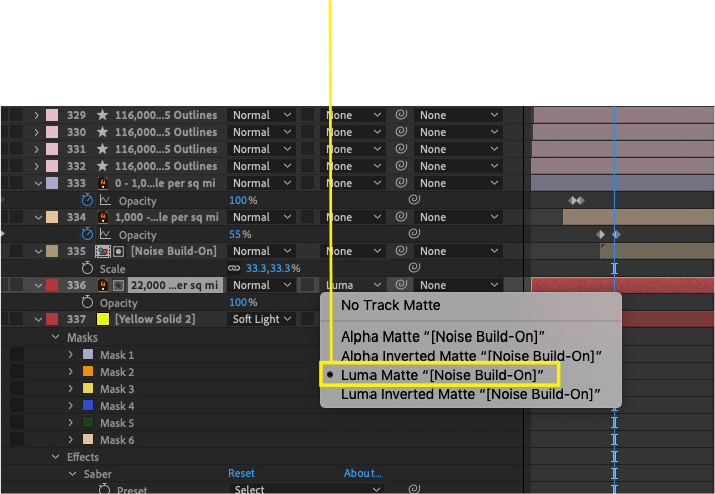

Place the Noise Build-On comp directly above
“22,000 – 116,000 people per sq mi” Layer.

Set the Track Matte to “Luma Matte {Noise Build-On}

How to make Animated Maps in ArcGIS Maps for Adobe and Adobe After Effects



With the rest of your elements now in After Effects, have fun and animate away. The possibilities and amount of data now available through ArcGIS Maps for Adobe Creative Cloud opens up a vast  library of spatial content now available to design professional in a native format.
