Breweries of the World

View live map

Why we love it

We love this map because it brings a bold aesthetic to otherwise basic point data. It was designed as a large wall hanging (17 ft or more than 5 m wide!) for a brewery tasting room. Here we see an innovative use of the Dorling cartogram approach, a technique for mapping thematic data. It allows the data to be summed up by country and mapped in an eye-catching, abstract way with beautiful symbology.

Why it works

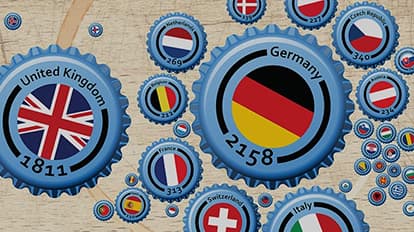

Bottle tops are scaled as proportional symbols to show the number of breweries per country. This cartogram works because it quickly gives us a sense of the major brewing nations organized by geographical areas and positioned to mimic a world map. Minimal text provides labels and numbers. The bottle tops appear to be strewn across a table, yet are carefully illuminated with a light source from the top left.

Important steps

  • Geocode locations as addresses

    Geocode locations of breweries as addresses to add latitude and longitude that can then be mapped.

  • Shape your map with manual editing

    Create a proportional symbol map; converted symbols to features and reposition with a little manual editing.

  • Customize bottle top symbols

    The bottle top symbols are many layers of symbols (bottle top, flag, text). Several styles were constructed and the Match to Style renderer used to symbolize countries.

  • Play with the layers

    Three layers of actual locations were symbolized with different sizes of dots and transparencies to build up the clusters on the hemisphere maps. The background tabletop is a large graphic added to the layout.
previous
Next

Requirements

  • Data and software

    Data was used with permission from beerme.com. Addresses were downloaded as a text file and geocoded to add latitude and longitude that could then be mapped. The country attribute was used to calculate totals for the cartogram symbol sizing. Software used: ArcGIS Desktop.
    Go to Beer Me

  • Analysis

    The data was run through the ArcGIS World Geocoding service to add latitude and longitude and totals per country were summed. The coordinates and totals became the mappable information.
    Explore ArcGIS World Geocoding

  • Time

    Two hours to download and convert the addresses, including checking and verifying accuracy. Three hours to build the cartogram. Symbols take the most time, though many are built from the same primitives and can be applied to the map using data-driven symbolization.
previous
Next

Tips and tricks

  • Experiment with scaling

    Experiment to make sure the smallest symbol can be seen and the largest does not take over the map. Scaling isn’t linear but the overall effect is still visually engaging.

  • Try new ways of processing data

    Processing data into different forms gives you flexibility to map it in different ways. Locations are used here in the inset rather than the main map. Often the interesting story is revealed by processing data this way.

  • Be creative

    Clients who want maps provoking exploration and conversation give you the opportunity to be creative. Designing highly abstract wall maps is one fun way to stretch your artistic imagination.
previous
Next

Resources

previous
Next
Ken Field, map author

Map Author

Ken Field

Professional carto-nerd, amateur drummer and snowboarder. Lifetime encourager of cartographic quality not quantity. Map with the times while building on the past.
