How to add an inner glow to polygons with the ArcGIS API for JavaScript

By John Nelson and Anne Fitz

So you want a super slick inner glow effect for some polygons in your app, to no avail. Sure, an “inner glow” effect isn’t yet supported in the JavaScript API, nor is a buffer fill. But Picture strokes are supported, and you can bake all manner of visual shenanigans into those things…

Here is the CodePen where you can check it out and play with the parameters.
Here’s the blue glow graphic.
And here’s a version in red.

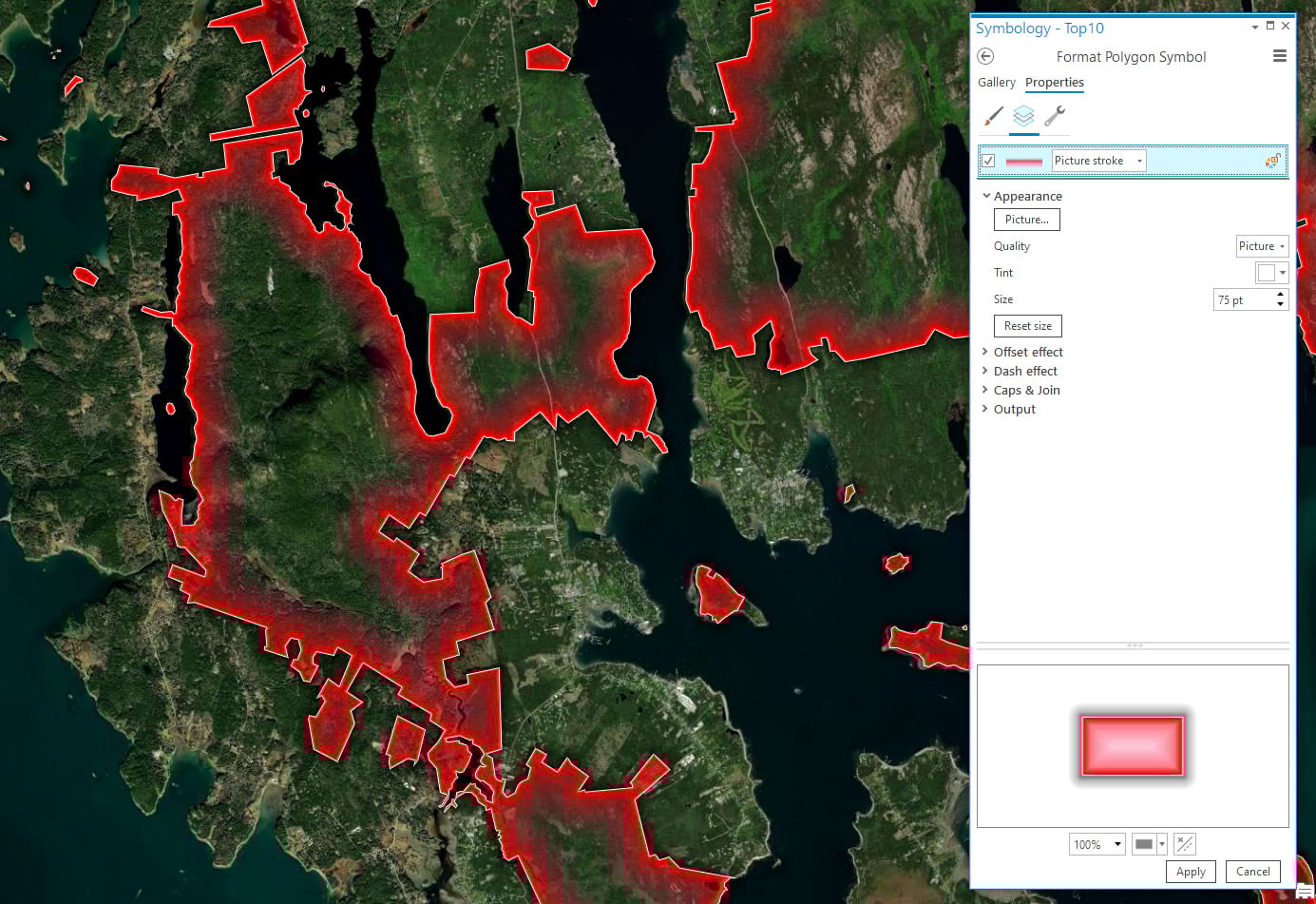

You can use these graphics as picture fills in ArcGIS Pro, as well. Here are some examples…

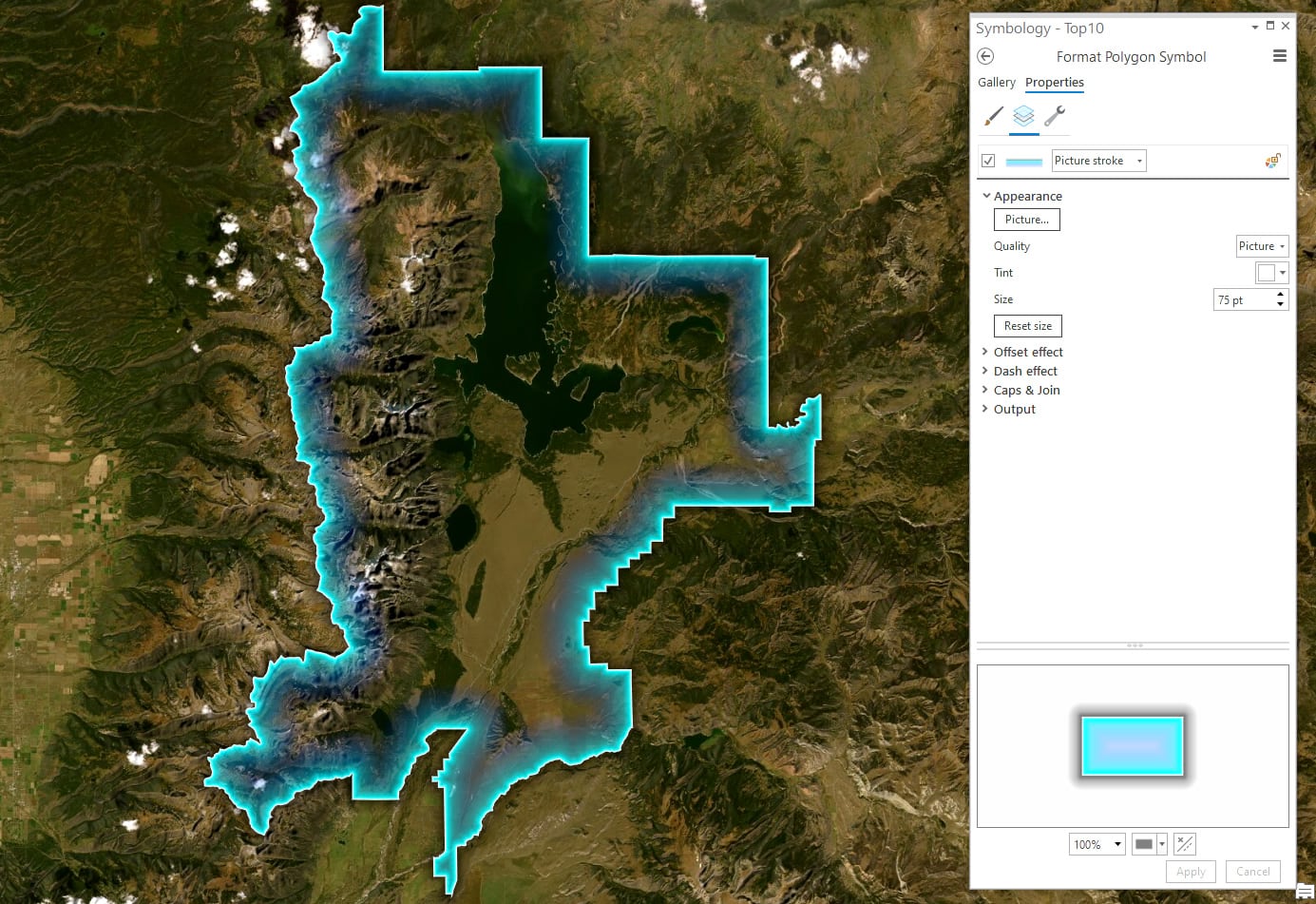

A picture stroke in ArcGIS Pro resembling an inner glow

Thanks to Anne Fitz for the collaboration, and setting up the CodePen!

Happy inner-glowing!
