Woods Hole Research Center Measures Carbon Footprints in U.S. Forests

By Jessica Wyland, Esri Writer

  click to enlarge

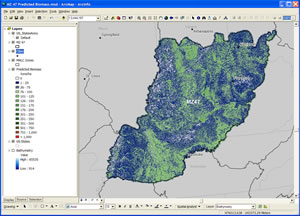

Woods Hole Research Center scientists use the ArcMap application in ArcInfo, one of the ArcGIS Desktop software products, to determine the National Biomass and Carbon Dataset.

How do we retrace our ecological footprints? Where will the footprints lead? Scientists at the Woods Hole Research Center (WHRC) are tracking carbon footprints across the globe starting with U.S. forests. One ongoing study, using geographic information system (GIS) technology, is measuring the carbon-rich biomass in heavily wooded areas to indicate the effect deforestation and land use have on rising carbon levels in our atmosphere.

The National Biomass and Carbon Dataset for the year 2000 (NBCD2000) will serve as a baseline for quantifying carbon stock in U.S. forests. The information can then be used to improve current methods of assessing carbon flux between forests and the atmosphere. To establish the baseline, researchers fed many layers of data into the GIS including National Aeronautics and Space Administration (NASA) satellite imagery, topographic survey data, land-use/land-cover information, and extensive forest inventory data collected by the United States Department of Agriculture (USDA) Forest Service's Forest Inventory and Analysis (FIA) program.

"The datasets that are now available should be of interest to natural resource managers across the country," said Josef Kellndorfer, an associate scientist at WHRC and leader of the NBCD2000 project. "The availability of high-resolution estimates of forest biomass and associated carbon stock is an important step forward in understanding the North American carbon balance."

Mapping projects target 67 ecologically diverse regions—mapping zones that span the conterminous United States. Of the nine completed zones, five were finished during a two-year pilot phase. Work on the remaining zones will be completed at a rate of roughly one zone every seven days. The project is scheduled to be completed in early 2009.

The NBCD2000 initiative started in 2005 and is funded by NASA's earth science program with additional support from United States Geological Survey (USGS)/LANDFIRE. A suite of GIS products is used to manage the data and create the maps.

Within each mapping zone, data from the 2000 Shuttle Radar Topography Mission is combined with topographic survey data from the National Elevation Database (NED) to produce a radar-based map of vegetation canopy height. Subsequently, the map illustrates estimates of actual vegetation height, biomass, and carbon stock using survey data from the FIA program and ancillary datasets from the National Land Cover Database 2001 (NLCD2001) project. The NLCD2001 data layers are crucial inputs to the NBCD2000 project as they provide land-cover and canopy density information used in the stratification/ calibration process.

  click to enlarge

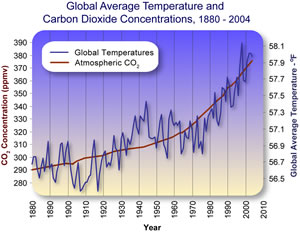

This graph shows the historical track of rising atmospheric CO2 and the correlating rise in global temperatures.

"Because this is the first systematic, regional-scale study that uses radar data to quantify carbon storage in vegetation, the end result will not only provide valuable information on how well we can do with existing data but will also allow us to see how we might improve and refine requirements for future, more capable missions," said Diane Wickland, program manager for NASA's Terrestrial Ecology program.

The Case for Measuring Carbon

Ecologists have been interested in carbon for a long time, according to WHRC scientist Richard Houghton, primarily because all plants and animals are carbon based. More recently, carbon has become interesting to scientists—and many other people—because carbon dioxide is the major greenhouse gas produced by human activity.

"The continued release of greenhouse gases is raising the temperature of the earth, disrupting the climate we and our agricultural systems depend on, and raising the sea level," Houghton said. "The concentration of CO2 in the atmosphere has already increased by about 30 percent since the start of the Industrial Revolution, sometime around the middle of the nineteenth century. It will continue to increase unless societies choose to change their ways."

Most of the increase in atmospheric CO2 concentrations has been and will continue to be from the use of fossil fuel for energy. About 25 percent of the increase over the last 150 years came from changes in land use—the clearing of forests and cultivation of soils for food production. Much of the carbon stored in trees and soils is released into the atmosphere when forests are cleared and cultivated. Some of the release occurs rapidly with burning. Some of it occurs slowly as dead plant material decomposes. When forests regrow on cleared land, they withdraw carbon from the atmosphere and store it again in trees and soils. The difference between the total amount of carbon released into the atmosphere and the total amount withdrawn from the atmosphere determines whether the land is a net source or sink for atmospheric carbon. WHRC scientists therefore study the rates of land-use change or deforestation and the sources and sinks of carbon that follow.

The Use of GIS in Conservation

With GIS, researchers are able to analyze and illustrate changes on the earth, manage findings in an easily accessible database, and model through maps the effects of various future land-use and carbon-related decisions.

  click to enlarge

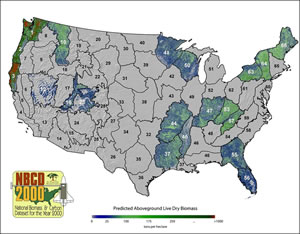

Completed Zones: A map of the contiguous United States shows the status of the National Biomass and Carbon Dataset as of May 2008.

"Almost all ecological research is inherently spatial and needs to be put into a local or regional context," said John P. Holdren, WHRC director. "Among a text-weary public, maps are perhaps the most direct route to understanding research results and the status of the earth's natural resources."

For conservation efforts to have a discernible impact, research must not only be collected and understood but also acted on, according to David Maguire, chief scientist for Esri.

"Conservation is about understanding the natural environment, looking at the causes of change in the environment, and demonstrating the political and economic effects," Maguire said. "GIS, better than any other technology and tool, is very good at integrating and interfacing with the policy context and bringing the information to the attention of a wide public."

WHRC has initiatives in the Amazon, the Arctic, Africa, Russia, Asia, and North America. Its programs focus on the global carbon cycle, forest function, land cover and land use, water cycles and chemicals in the environment, science in public affairs, and education, providing primary data and enabling better appraisals of the trends in forests.

WHRC scientists recently released initial data from the NBCD2000. All data products are available for download on a zone-by-zone basis at
