Introducing ArcGIS Tracking Analyst and ArcIMS Tracking Server

ArcGIS Tracking Analyst Extension

  click to see enlargement

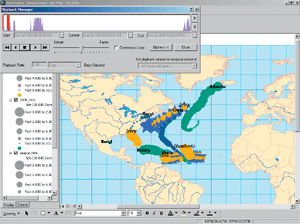

Symbolized and labeled temporal data set replaying in ArcMap using the Tracking Analyst playback manager.

The ArcGIS Tracking Analyst extension is a sophisticated visualization and analysis tool for simple or complex applications. The extension adds additional tools and functionality to the ArcMap and ArcCatalog environments within the ArcGIS suite. It can be combined with other ArcGIS extensions to create powerful applications for transportation, emergency response, military, and a host of other areas. The extension allows users to view and analyze existing temporal data, which can be set up with future time windows (for mission planning) or past time windows (for historical data analysis).

Core ArcGIS Tracking Analyst Functionality includes

  • Display point and track data (real time and fixed time)
  • Symbolize time by color (show the aging of data)
  • Interactive playback manager
  • Actions (based on attribute or spatial queries)
    • Highlight
    • Suppression
    • Custom
  • Support for lines and polygons
  • Temporal histogram in playback
  • Additional temporal symbology renderers (shape and size)
  • Layer-based time windows to manage many temporal layers
  • Temporal offset for comparisons of temporal events
  • Creation of animation files
  • Data clock for additional analysis
  • Support for military symbology (via Esri's Military Overlay Editor [MOLE], which is a new symbol generator and editor for military applications), and much more
  click to see enlargement

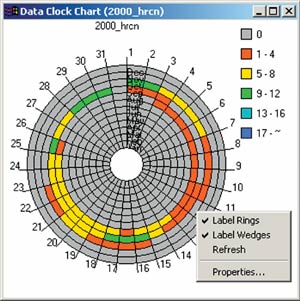

You can use the Tracking Analyst data clock to chart temporal data in a variety of time modes.

The ArcGIS Tracking Analyst extension for ArcGIS 8.3 extends the range of functionality first released in the ArcView 3.x Tracking Analyst extension. The ArcGIS Tracking Analyst extension will be compatible with existing ArcView Tracking Analyst data sets.

For more information on ArcGIS, visit www.esri.com/arcgis or call your Esri regional office, or contact your local reseller. Outside the United States, please contact your local Esri distributor.

ArcIMS Tracking Server Extension

The ArcIMS Tracking Server extension greatly expands the user's ability to view, analyze, and distribute temporal data by enabling real-time data support to multiple clients. The ArcIMS Tracking Server extension is the real-time server for tracking-based applications. It provides a central data server for all real-time clients including the ArcGIS Tracking Analyst extension and Web clients. The ArcIMS Tracking Server extension logs data directly to ArcSDE, allowing ArcSDE to be your storage mechanism for temporal data. In addition, the ArcIMS Tracking Server extension can broadcast real-time data over the Internet using a Java-based client and embedded Internet push technology. The ArcIMS Tracking Server extension provides a Web service of temporal data to ArcGIS and Web users.

For more information on ArcIMS, visit www.esri.com/arcims or call Esri at 1-800-447-9778, call your Esri regional office, or contact your local reseller. Outside the United States, please contact your local Esri distributor.
