Illustrations from More Techniques for Effective Mapping


ArcUser July-September 2001

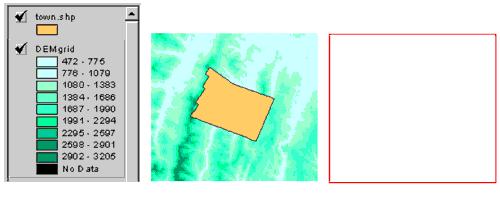

Step 2

Creating maparea.shp

The map area graphic was converted to a polygon called maparea.shp using the XTools Graphic to Shape tool.

Step 6

Using the Map Calculator

After creating a hillshade for the DEM theme, the Map Calculator in ArcView Spatial Analyst was used to add the DEM grid and grid file generated from the Mapunion shapefile together.

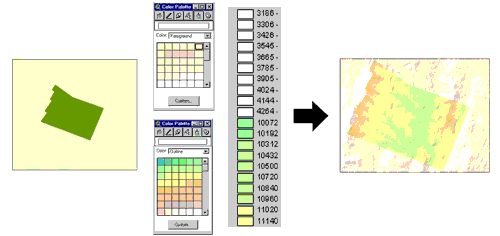

Step 8

Applying color palettes

Color from different palettes in the Shademax Color Set were applied to different ranges in mapgrid to separate the town from the surrounding area.

Return to article.
