This blog is a continuation of my previous blog where I demonstrated Map Viewer Charts for data exploration. The web app that we will be focusing on in this blog is Chart Viewer in ArcGIS Instant Apps. Why? Because using its template, we can display multiple charts to complement a map.
In this tutorial, we will use Chart Viewer from Instant Apps to publish this web app using a web map containing charts created in Map Viewer. Chart Viewer supports all chart types offered in Map Viewer (bar, line, pie, histogram and scatter plot), hence our web map can contain any or all chart types.
Let’s get started right-away with a web map-
Step 1 – Import your web map to Instant apps

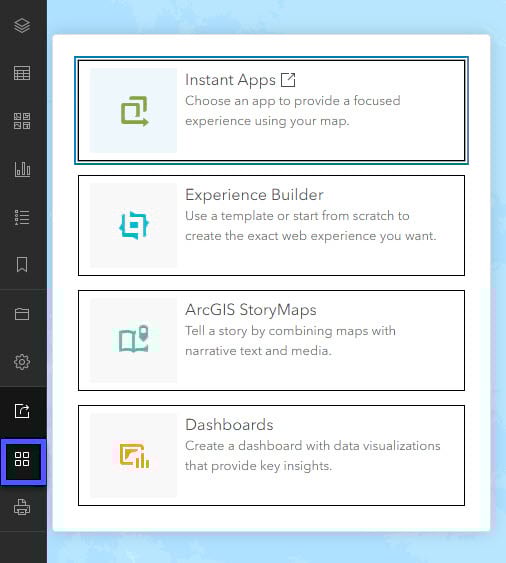

We will need to sign-in into our ArcGIS Online account to access Create App options. We will be using this web map that was created in the previous blog using Map Viewer. You can use your own web map to follow along, just ensure that the web map is saved in Map Viewer and has at least one chart in it. Once you have a web map open in Map Viewer, click on Create app and select Instant Apps from the dark pane.
Step 2 – Choose a template

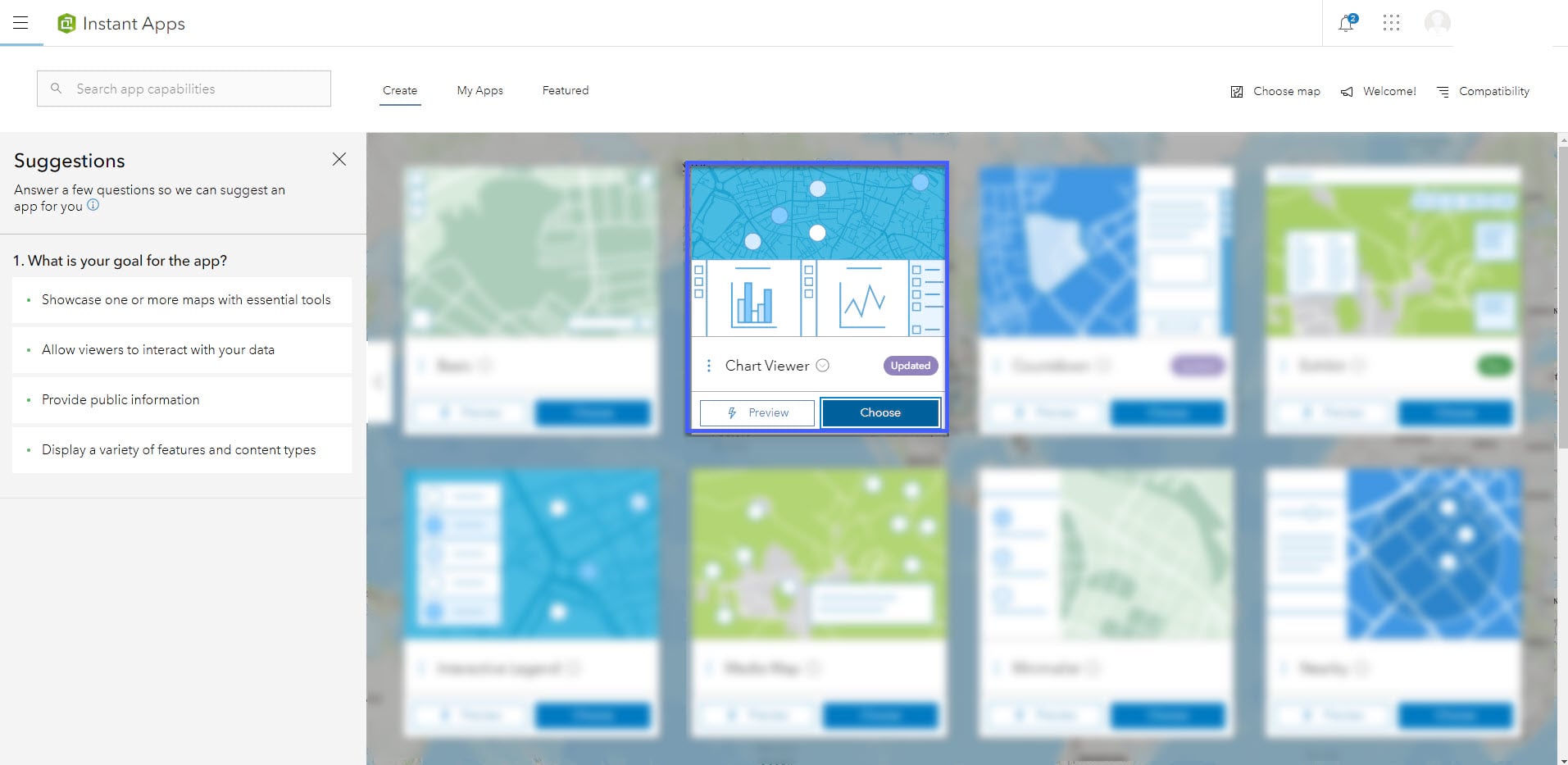

ArcGIS Instant Apps offers a variety of web app templates based on your requirements like Exhibit, Nearby, Chart Viewer etc. In this tutorial we will use the Chart Viewer template to publish our web map and charts together in a web app. Next, select Chart Viewer from the layout options. Give your app a title and hit Create app.
Step 3 – Configure Chart Viewer

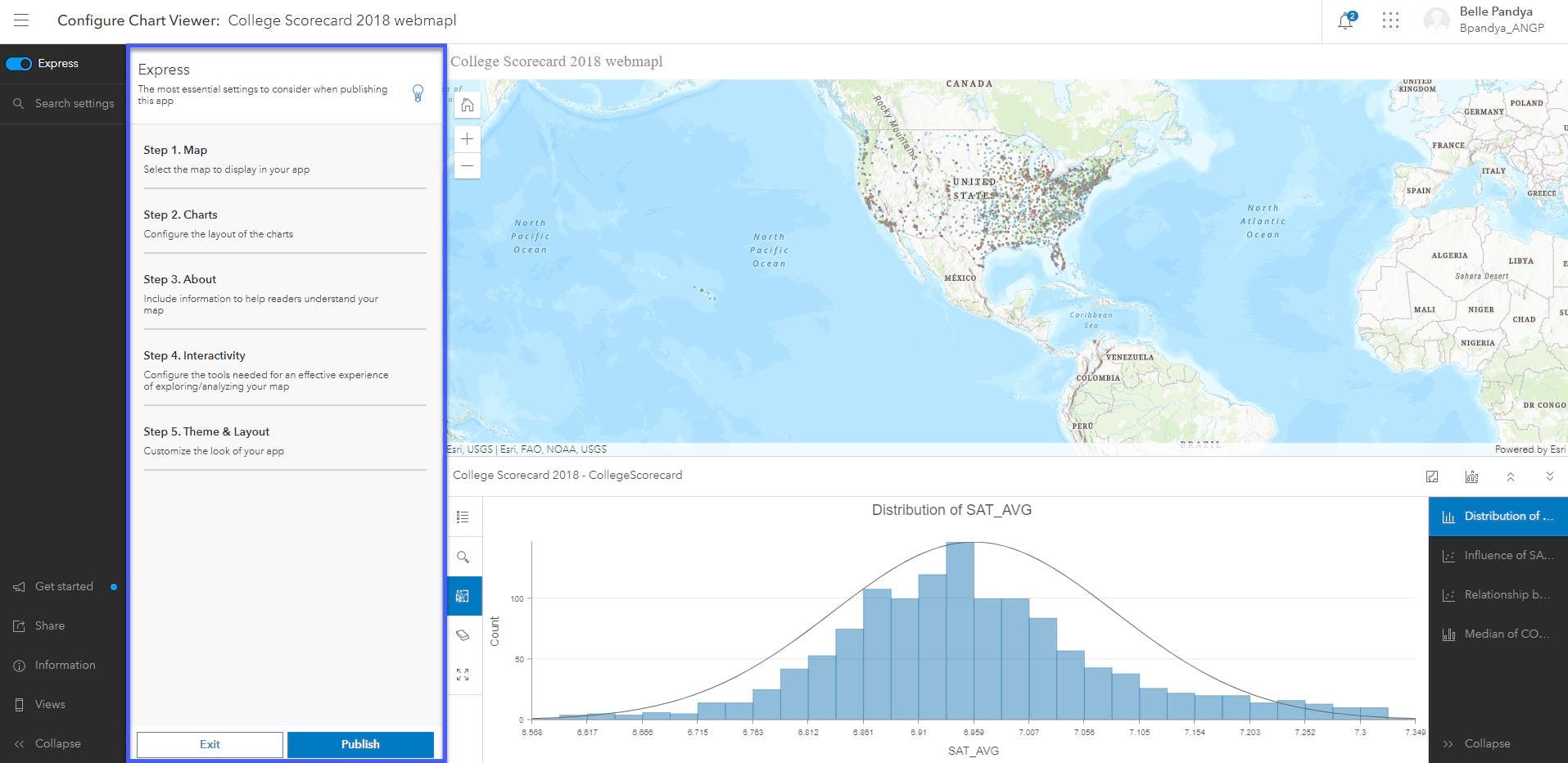

Configure your Chart Viewer app template using the five steps explained in this blog. I generally proceed with using the default settings unless I am working on more than one layer or require customization.
Step 4 – Publish your web app

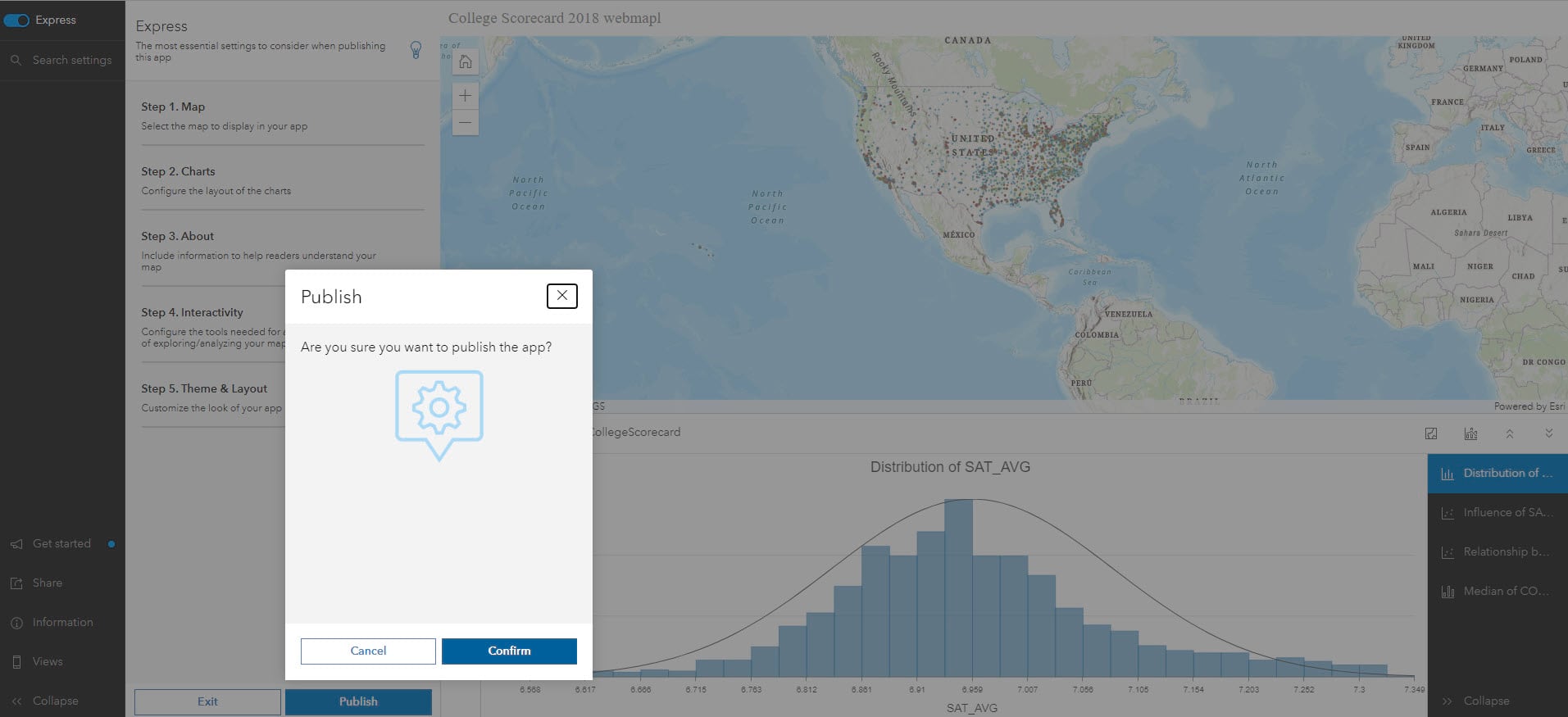

After configuration, select Publish and then Confirm.
Step 5 – Launch the web app

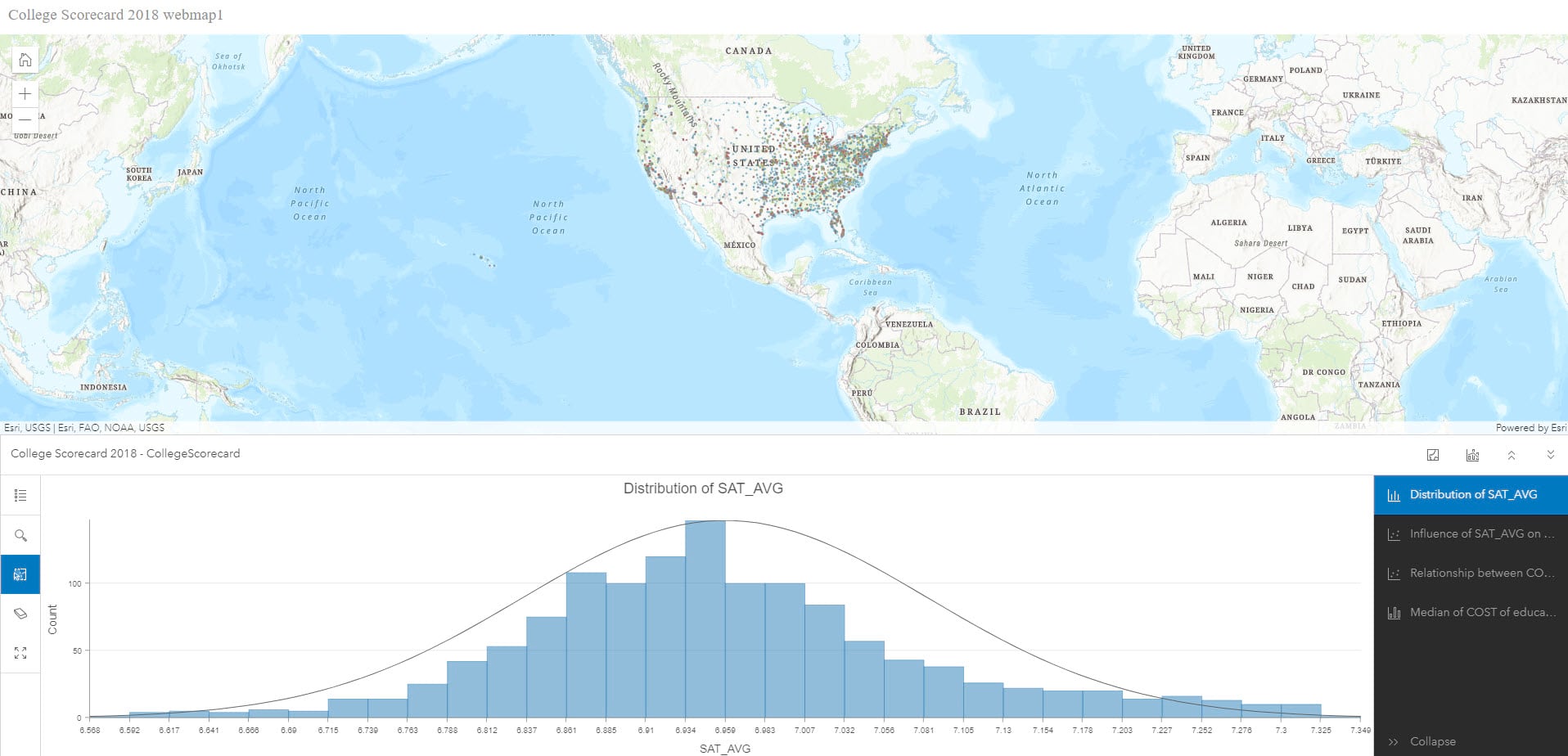

Once your web app is published, a ‘Share’ pop-up will appear. This pop-up will provide several options on how to share the web app. To simply launch the web app, select Launch from the pop-up. The app will be launched in a new window. Voila! Your web app is ready. It should look like this.
Explore your visualizations
So far, we have learned how to set up a template using Chart Viewer but your journey to share your insightful viz doesn’t stop here.

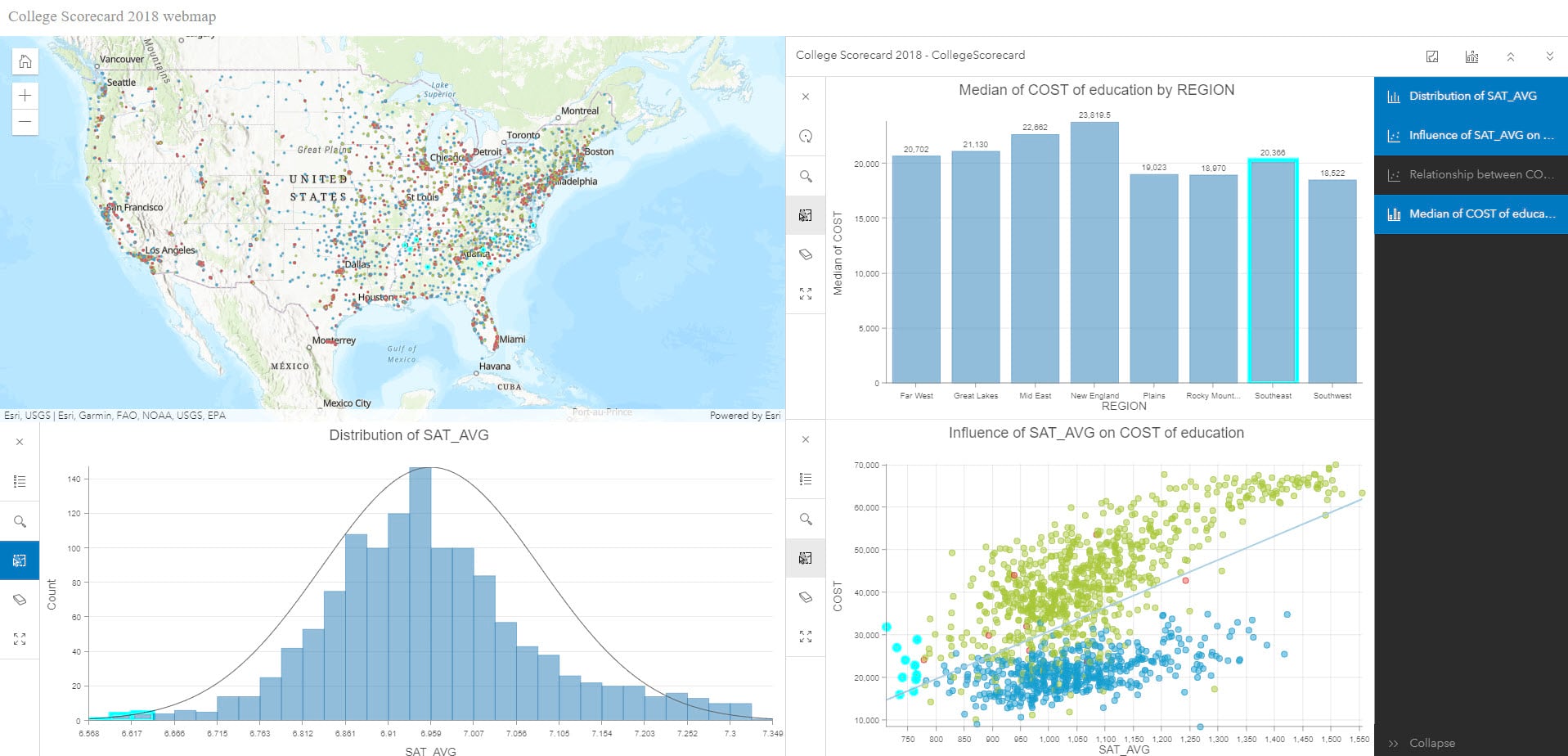

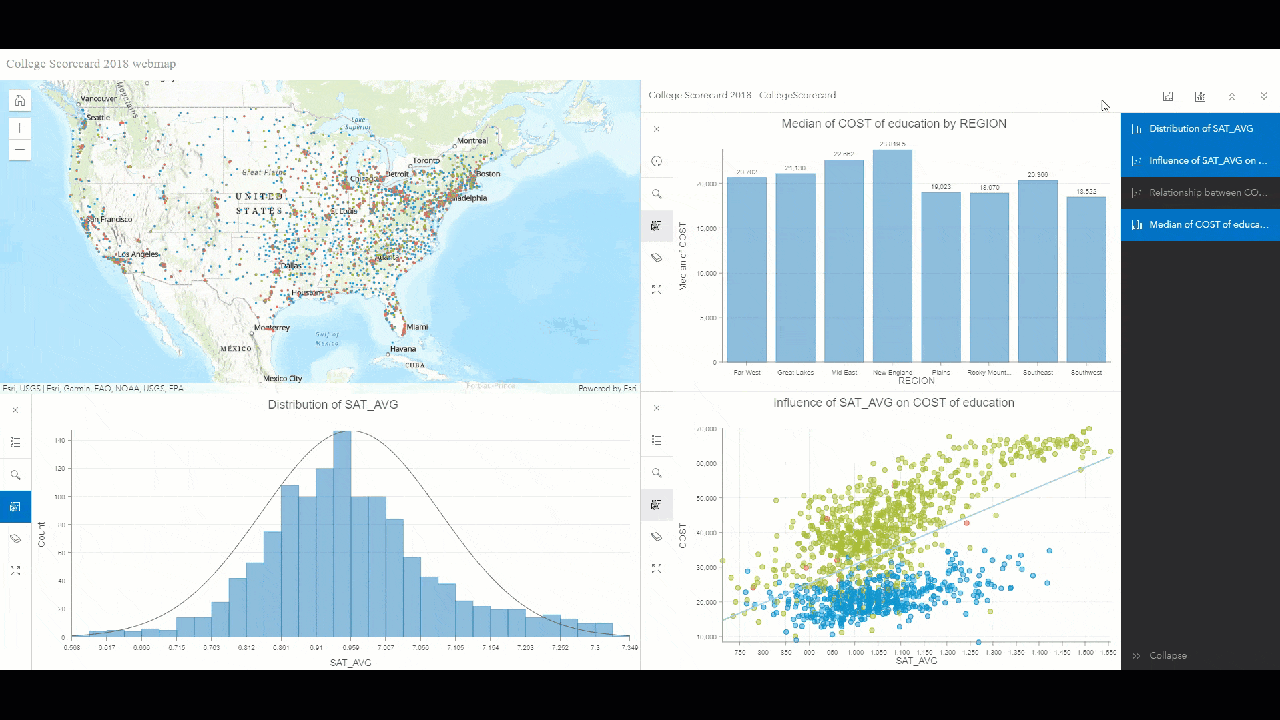

- Make a selection on any displayed chart and the corresponding features will be highlighted across the remaining chart(s) and the map. Clicking on Clear selection control from chart action bar will remove the selection.

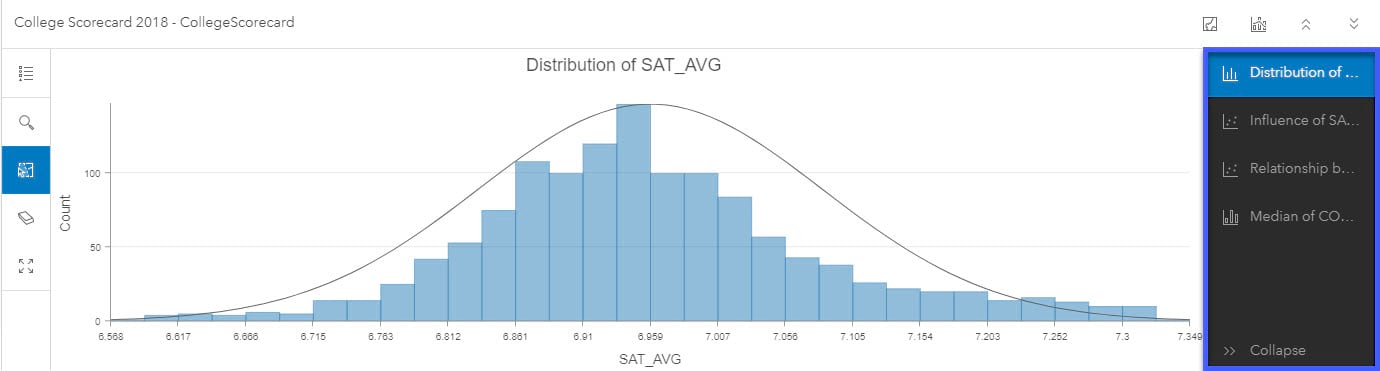

- By default, the template will display one chart along with the map. By clicking on chart names from the list in the bottom right corner, up to three charts can be displayed along with the map. To hide a chart from the view, click on its name again.
- To display only the map or only the chart(s), select View map only or View charts only controls respectively. To return to the view with the map and chart(s) both, click on the selected control again.
To conclude, we learned how to use the Chart Viewer Instant Apps template to quickly create a web app for visually exploring our data through charts and a map. If you have any questions about using Chart Viewer template in Instant Apps, please leave them in the comments down below.
