Map in a minute: Map sea temperature and coral bleaching using ArcGIS Online and ArcGIS Living Atlas

In the news: As much of the U.S. endures record setting heat, ocean temperatures in some areas off the Florida Coast have surpassed 100 degrees Fahrenheit, making the ocean seem more like a hot tub. Coral is highly sensitive to temperature, and while temperatures in the mid-80s can be the norm, the latest surge in temperature causes coral to “bleach,” expelling symbiotic algae and turning white. While bleaching doesn’t necessarily kill coral, it does mean they are stressed and subject to increased mortality especially as warmer than normal temperatures persist. For more information, see NOAA’s What is coral bleaching?

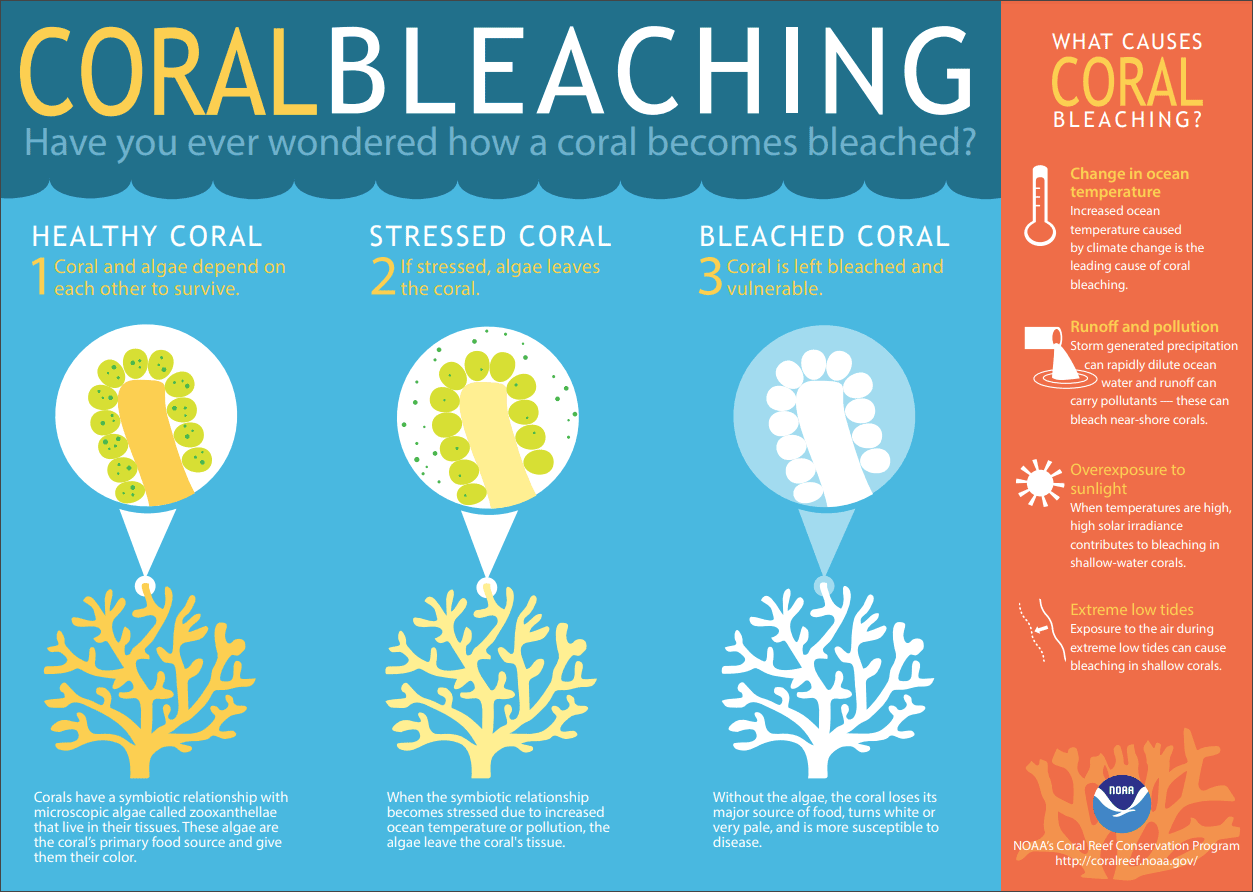

NOAA coral bleaching infographic
View larger image



Make a sea surface temperature and coral bleaching map

ArcGIS Living Atlas of the World includes authoritative content that helps you learn more about current sea temperature and coral bleaching. Follow these steps to make your own sea surface temperature and coral bleaching map in a minute, maybe less.

Step 1 — Sign in to your ArcGIS account and open Map Viewer. There are two ways to add layers from the Content (dark) toolbar:

(1) Click Add, then Browse layers.

Browse layers

or (2) Click Layers, then Add.

Add layers

Step 2 — Choose Living Atlas from the Add layer drop-down.

Add layer from Living Atlas

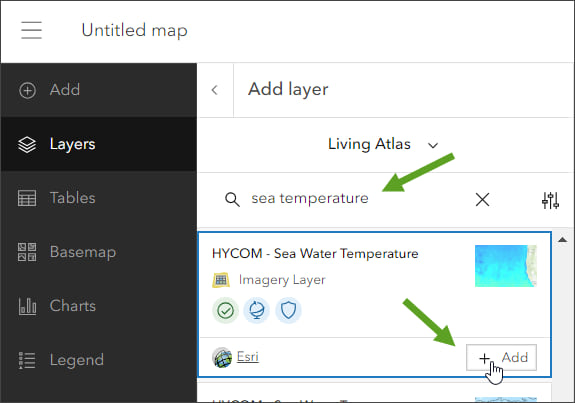

Step 3 — Enter “sea temperature” in search to locate matching layers from Living Atlas. Locate the HYCOM – Sea Water Temperature layer and click [+ Add] to add it to the map.

Add Living Atlas layer

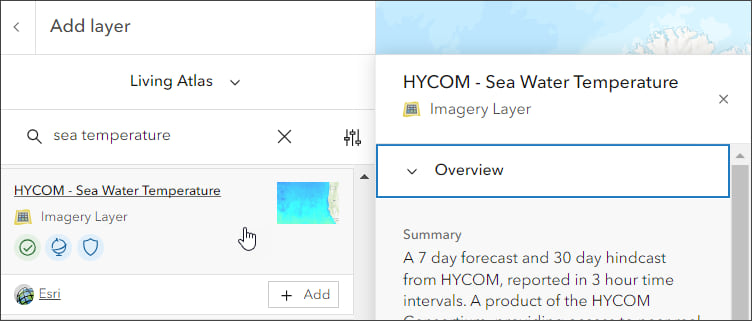

Tip: To learn more about any layer, click the layer card to view the item information, such as overview, description, and more. Click View item at the bottom to open the full item pages.

Layer information

From the HYCOM – Sea Water Temperature item details, we learn that the layer shows a 7-day forecast and 30-day hindcast from the HYbrid Coordinate Ocean Model (HYCOM). The multidimensional imagery layer provides information on a variety of variables, including temperature, temperature at specific depths, and more.

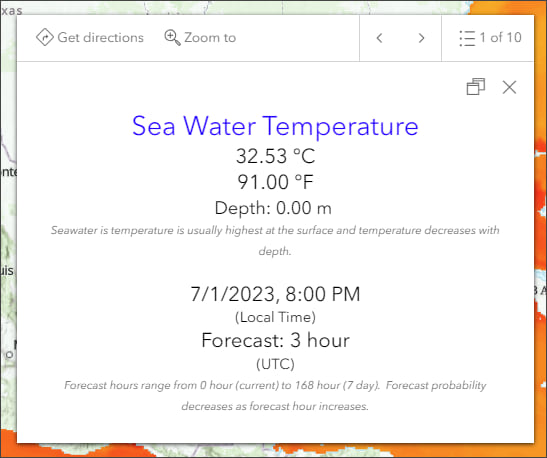

After adding the layer,  a time slider will appear showing the time range encompassing the 30-day hindcast to the the 7-day forecast. Click the layer to view the pop-up. By default the layer displays the information recorded for 30 days ago (the hindcast) and the temperature at the surface.

HYCOM Sea Water Temperature pop-up

Next, we’ll adjust the HYCOM layer settings to show the temperature for the current date, and since temperature at the surface is typically warmer than below, we’ll adjust the depth to show the temperature about 10 to 15 feet below the surface.

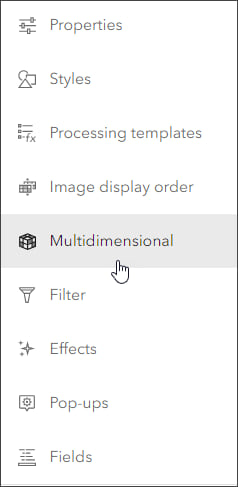

Step 4 — Open the Multidimensional tool from the Settings (light) toolbar.

Multidimensional tool

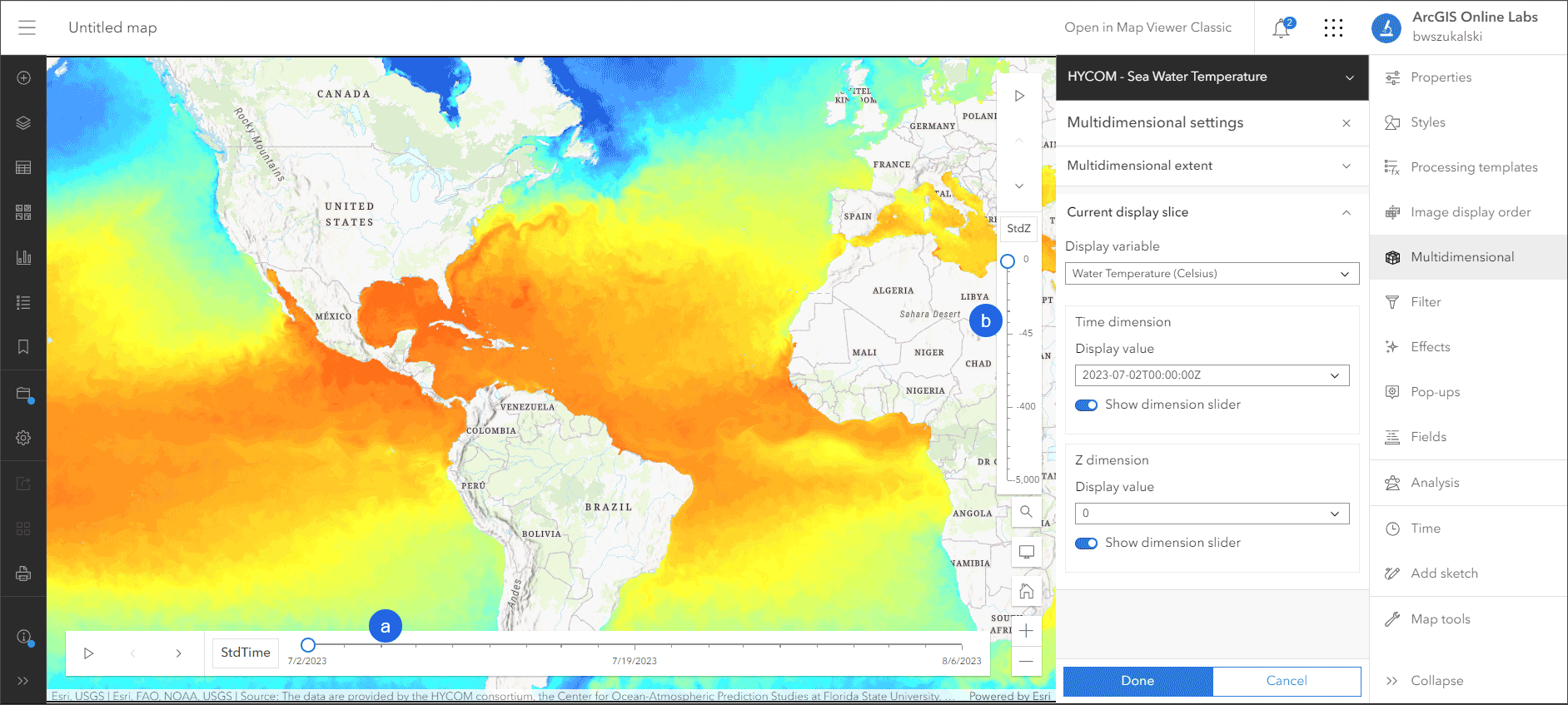

The pane shows the display slice variables, including (a) a time dimension slider and (b) the Z dimension slider, which in this case is depth below surface.

Multidimensional sliders
View larger image

Step 5 — Adjust the the time slider by using the left/right arrows, or grab and move the time slider control, to set the current date and time.

Time slider control

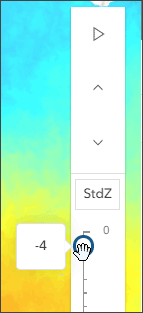

Step 6 — Adjust the the Z dimension (depth below surface) slider using the up/down arrows or use the slider control to set it to -4m, roughly 10 to 15 feet below the ocean surface where coral may be growing.

Z dimension slider

Click Done when finished. You can verify the settings you have made by opening the pop-up to show the temperature at the specified depth and current date.

In the next steps, we’ll add the coral bleaching layer.

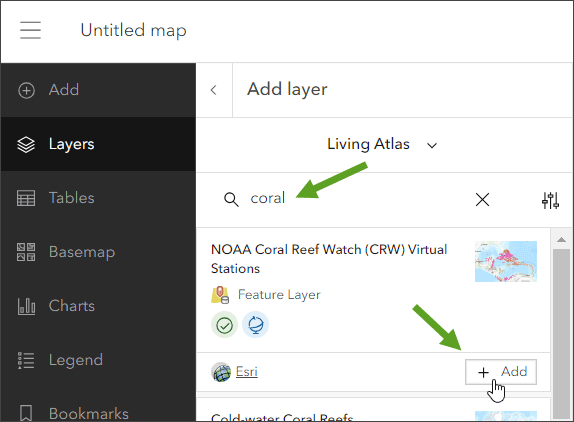

Step 7 — Add another layer from Living Atlas (see Steps 1 and 2 above) and enter “coral” in search to locate matching layers from Living Atlas. Locate the NOAA Coral Reef Watch (CRW) Virtual Stations layer and click [+ Add] to add it to the map.

Add layer from Living Atlas

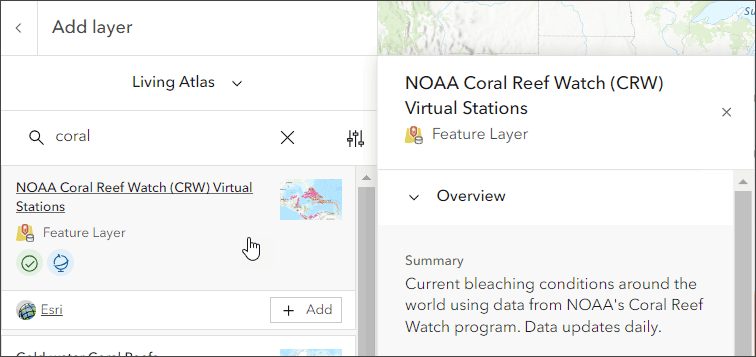

To learn more about the layer, click the layer card to view the item information, such as overview, description, and more. Click View item at the bottom to open the full item pages.

Layer information

From the NOAA Coral Reef Watch (CRW) item details, we learn that the layer shows current coral bleaching conditions around the world with daily updates.

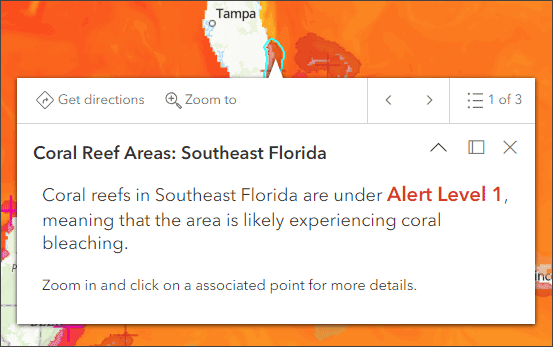

After adding the layer to the map, click to view the pop-up information.

Coral bleaching alert pop-up



The sea temperature and coral bleaching map

Technically, in just about a minute, we’ve created a map showing current temperatures beneath the ocean surface along with current coral bleaching alerts. The layer pop-ups deliver information about current sea temperature and coral bleaching alerts.

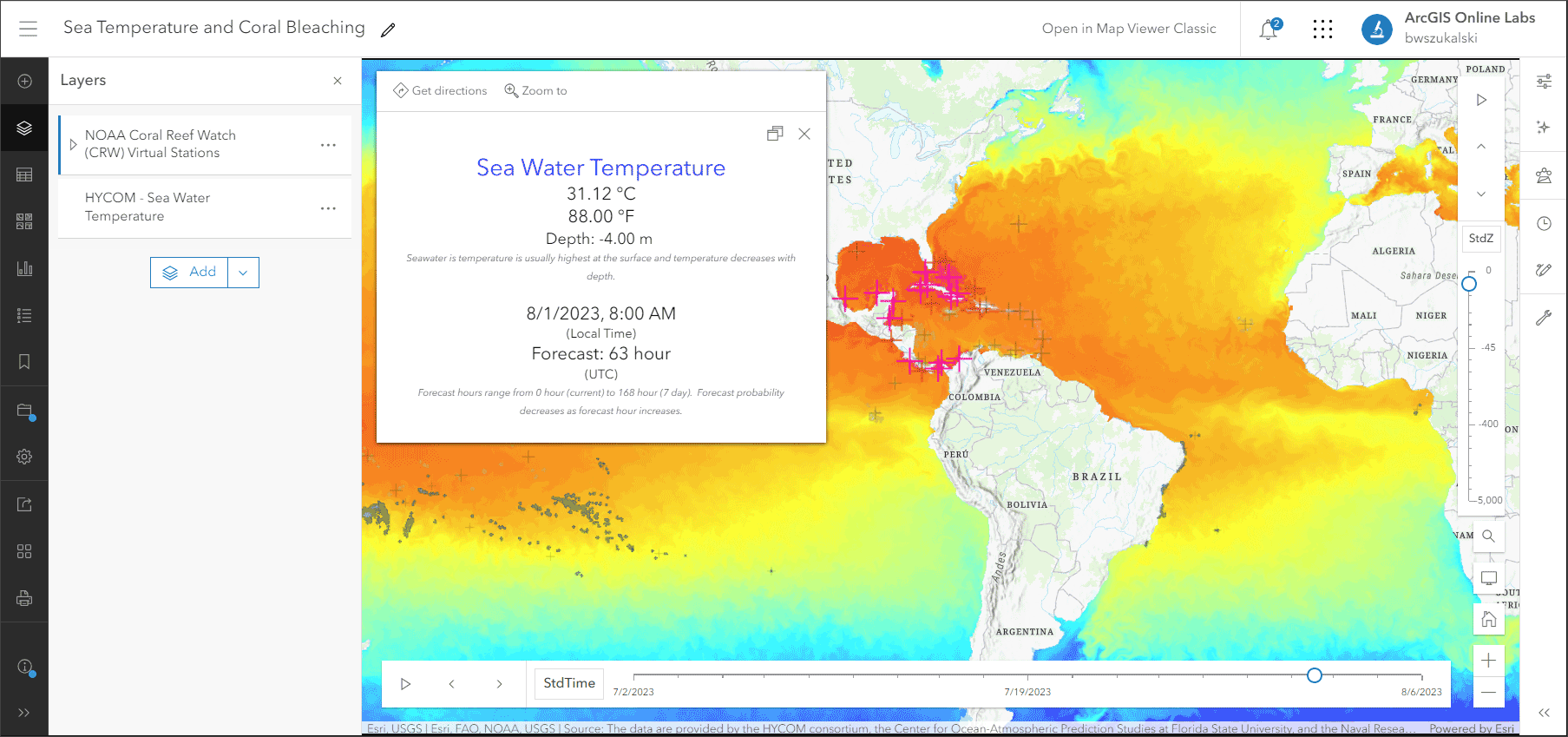

Sea temperature and coral bleaching map
View larger image



Improve the map

With a few additional steps, the map can be improved using styles, effects, and additional layers to make it more expressive.

Experiment with different basemaps to see which you like best. You can alter layer transparency and symbols to emphasize the content you want, and use Effects to emphasize layers or alter their display.

The map shown below was created using the following:

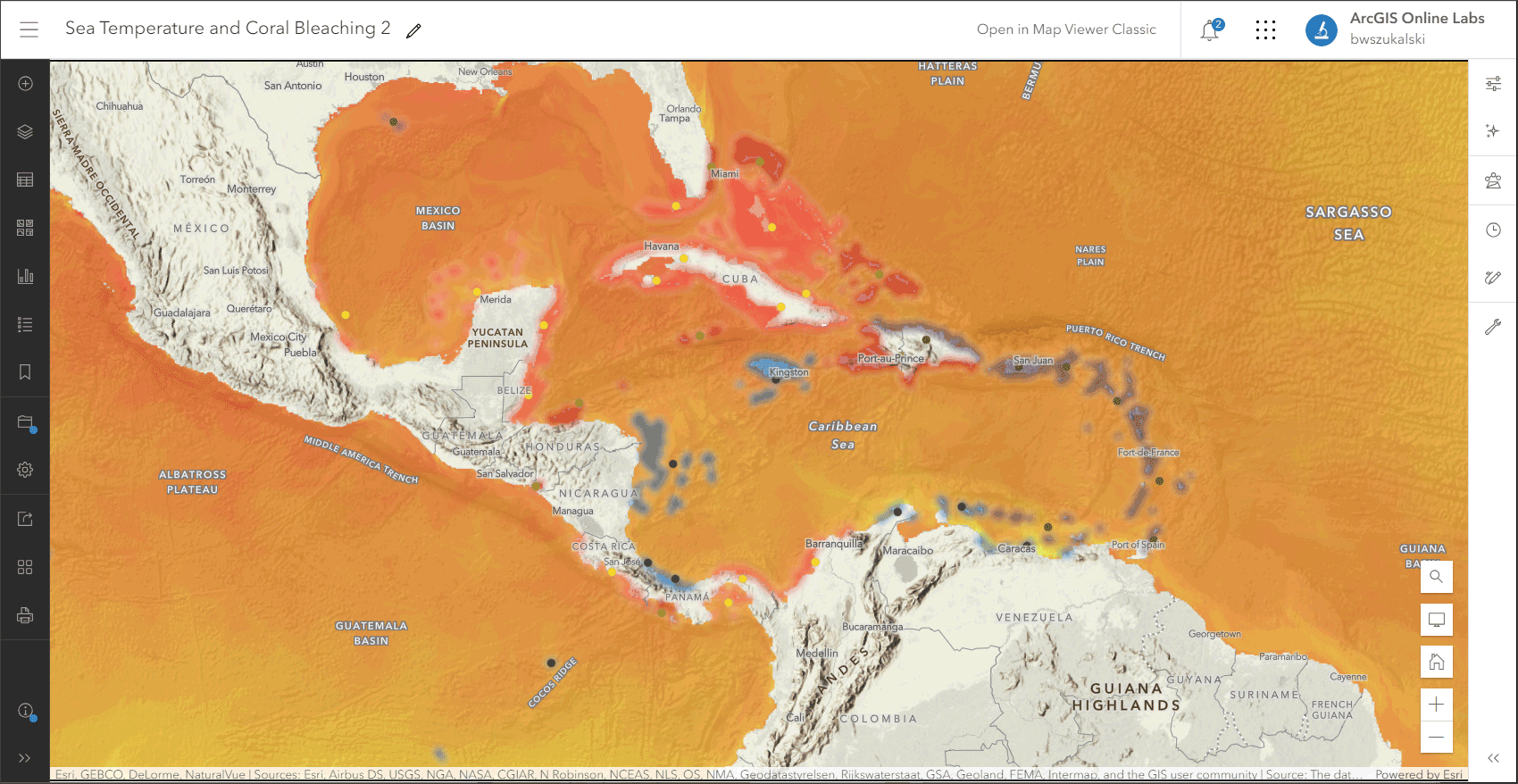

Modified web map
