ArcGIS for AutoCAD | Free Plug-In for Interoperability Between AutoCAD & ArcGIS

ArcGIS for AutoCAD is a free plug-in that simplifies the way you share and synchronize GIS content between AutoCAD and ArcGIS. Enrich your CAD drawings with ArcGIS hosted maps, imagery, and geographic features. Edit geographic features within AutoCAD and use them for navigating the drawing through location.

What Can You Do with ArcGIS for AutoCAD?

Enrich your CAD drawings with maps, background imagery, and geographic features. Edit locally created or imported GIS data within AutoCAD. You get:

Access Maps, Imagery and Data Edit GIS Data Navigate Drawings using Location Integrate with GIS Turn CAD Data into GIS Data Share Between Groups

Access Maps, Imagery and Data

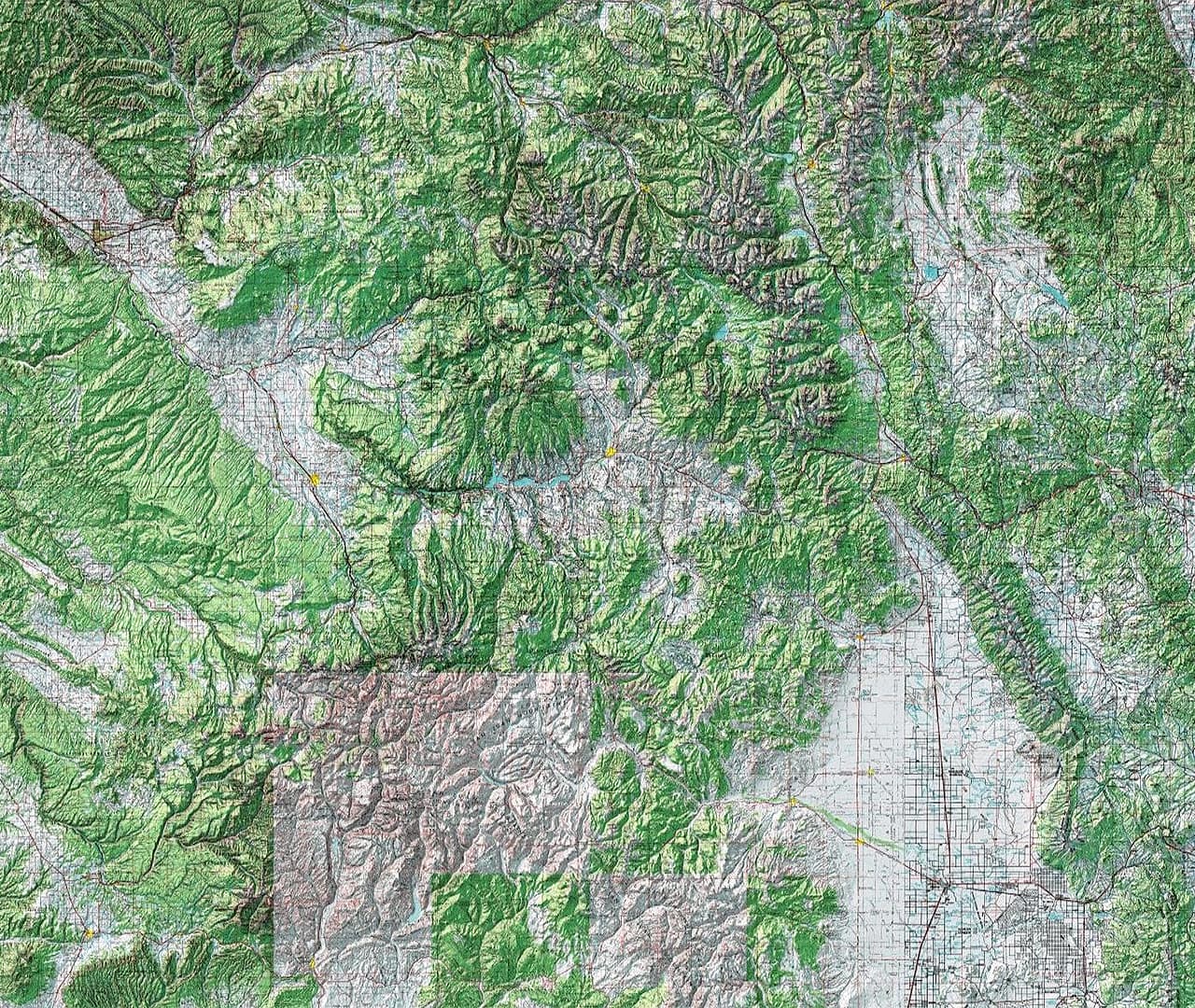

Access GIS maps, imagery, features services and sources within AutoCAD.

Screenshot of edting data within AutoCAD

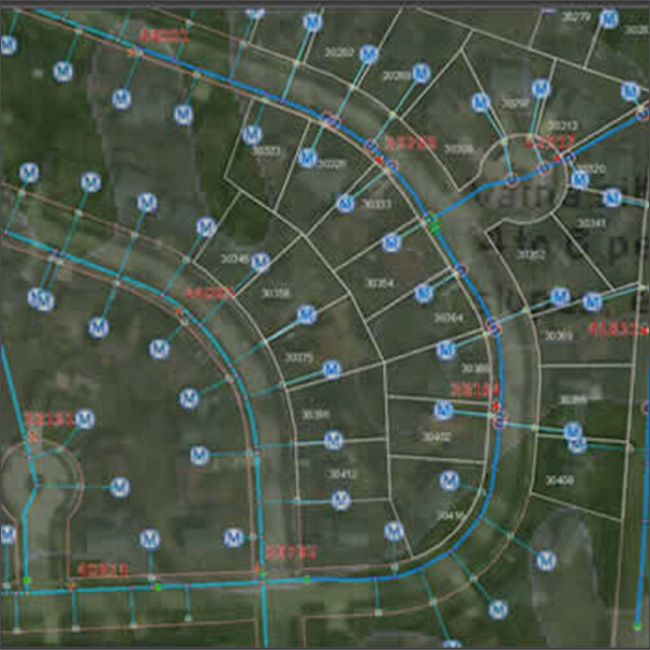

Edit GIS Data

Directly edit GIS data created within AutoCAD or exported from ArcGIS Desktop.

Screenshot of navigating AutoCAD drawings using location

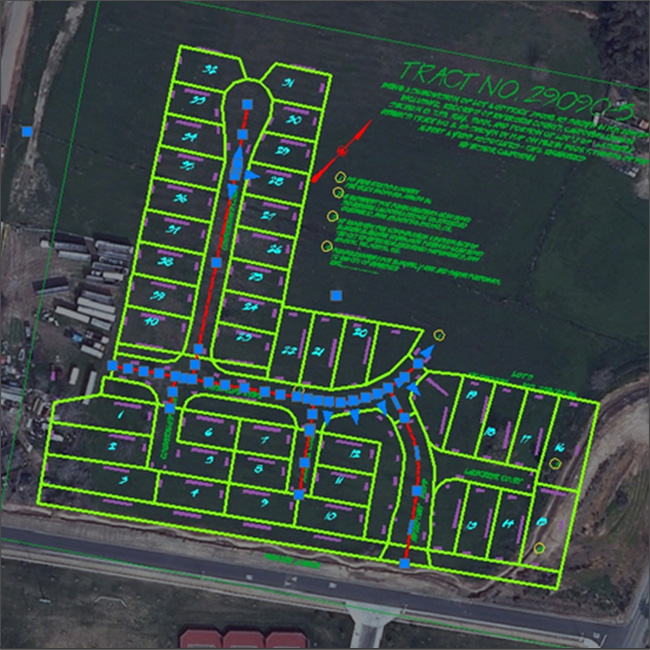

Navigate Drawings using Location

Easy navigation of your AutoCAD drawings based on street addresses or place names.

Mapping software highlights integration of CAD drawings with GIS

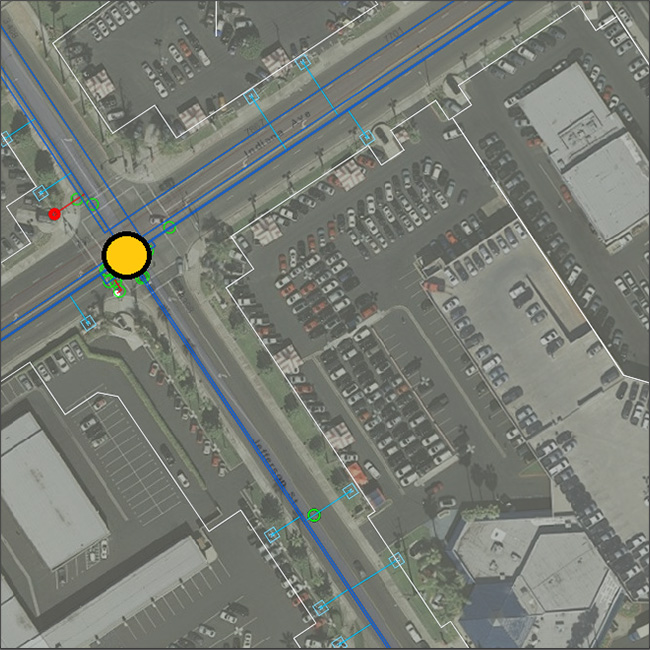

Integrate with GIS

Prepare your CAD drawings for GIS electronic submittal without exchanging shapefiles.

Screenshot of edting GIS data created within AutoCAD

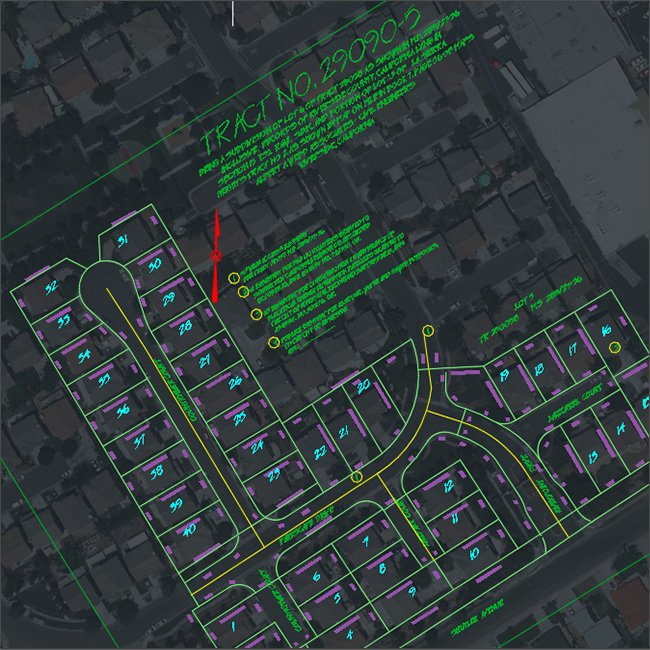

Turn CAD Data into GIS Data

Directly edit GIS data created within AutoCAD or exported from ArcGIS Desktop.

Screenshot of sharing information between GIS and CAD groups.

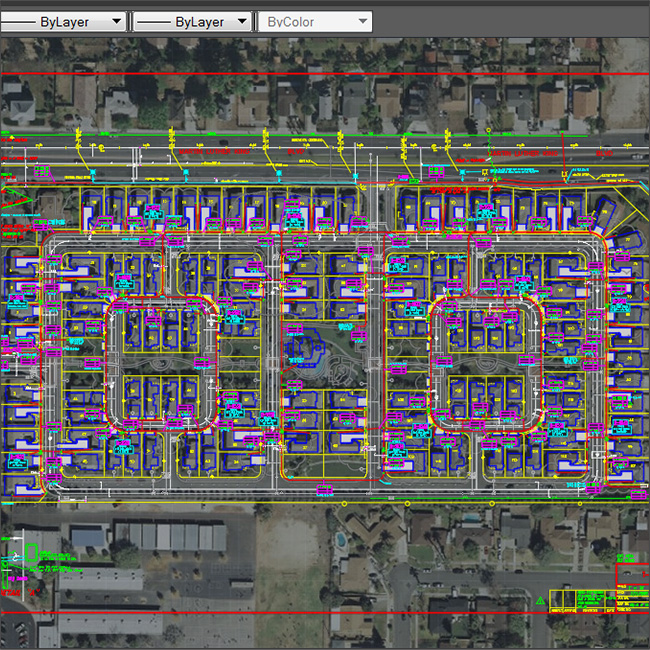

Share Between Groups

Streamlined information sharing between GIS and CAD groups.

CASE STUDY

Speeding up the Workflow

Black & Veatch experiences large gains in productivity across several national fiber infrastructure design projects using ArcGIS for AutoCAD.

Read the case study
