What's new in ArcGIS Enterprise 10.9

Today marks the availability of ArcGIS Enterprise 10.9 as part of the ArcGIS 2021 Q2 release! This release is full of enhancements and new functionality across many areas of the product. In this blog, we will cover a number of key features across content and data management, the ArcGIS Enterprise portal, administration, and more.

For a comprehensive view into everything included with this release, check out the documentation available in the What’s new in ArcGIS Enterprise topic. In addition, keep a look out on the ArcGIS Blog site for additional articles covering specific features in depth.

Content and data management

Shared editing using distributed collaboration

For many years, organizations have been using distributed collaboration to share layers, maps, and apps with other ArcGIS Enterprise and ArcGIS Online environments, facilitating better access to data and content and new ways of working together. With this release comes an exciting new collaboration enhancement enabling organizations to edit and synchronize data updates across environments. Previously, only the organization that originally owned the layer could sync edits. Now, two-way syncing is possible.

This has been a highly requested feature in order to streamline data management workflows and help teams work more closely together. Organizations have shared with us that they plan to use this for field data collection across Enterprise and Online, to contribute to source of truth datasets across departments, and much more. Learn more about this feature in an upcoming blog and the share content with collaboration groups documentation topic.

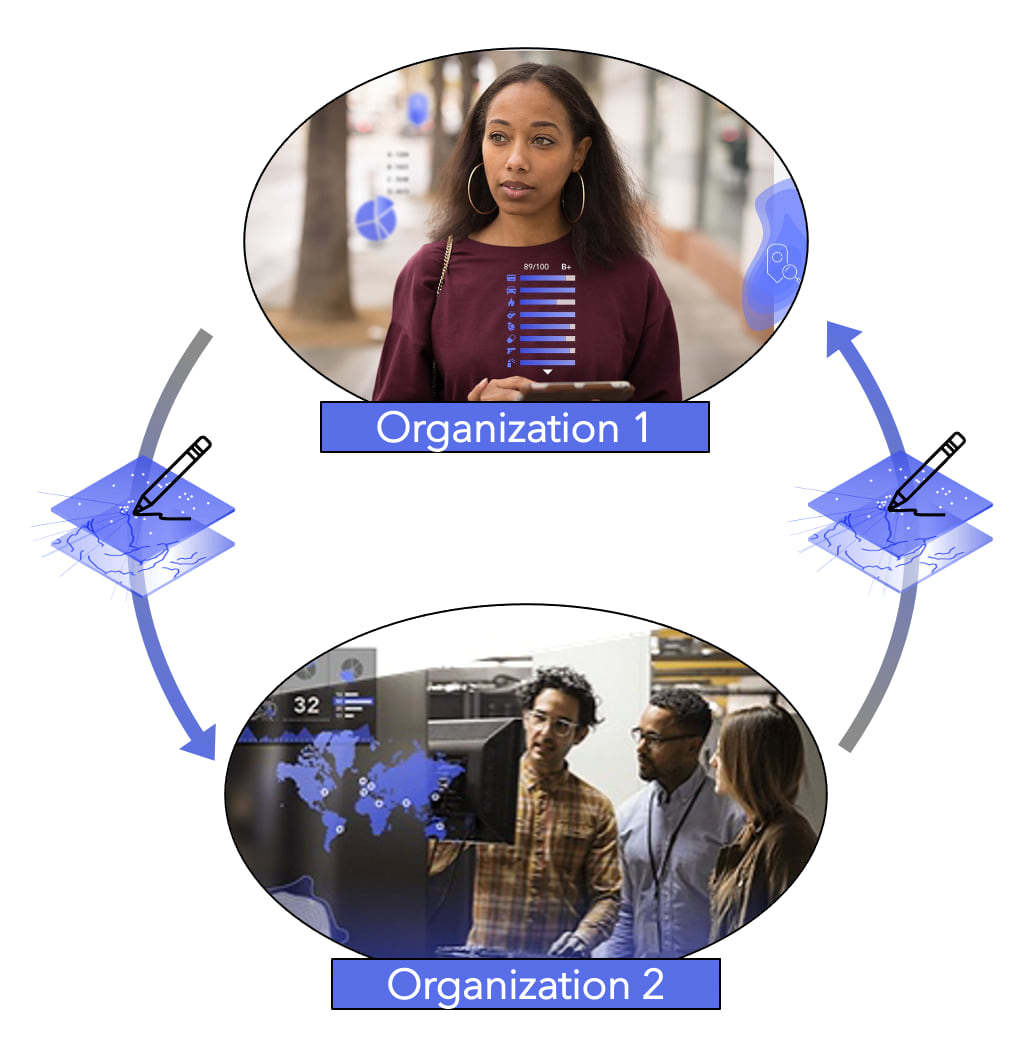

New in collaboration is the ability to edit and sync data changes across organizations.

Group export/import update

At ArcGIS Enterprise 10.8.1, two new REST resources were introduced, /export and /import, to make it easier to move content across development, staging, and production environments. Used together, these resources take the content in a group (layers, maps, and apps) and export them into a package that can be imported into another ArcGIS Enterprise deployment. This process can be done through REST and scripted using the ArcGIS API for Python. Starting with this release, you can now choose to import your content into a specific folder. This avoids having to add items into a folder after the import operation and saves time.

Field-level editing settings

Field-level editing settings allow you to disable editing on certain fields in your editable hosted feature layer. Say you have a layer that includes green roofs (vegetated roofs) on commercial properties in your city. You’d like to enable editing on the layer so that attributes about the roof can be updated, but you wouldn’t want key fields like the building address to be edited. With this setting, you can enable editing on the layer and then disable editing on the specific address field.

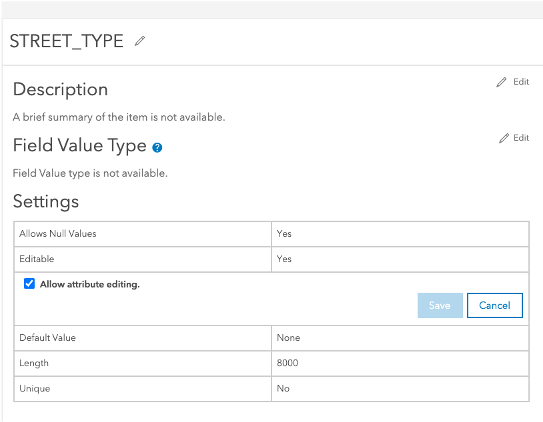

Field-level editing settings give more fine-grained control over editing.

Append data

As new data comes in and is available, there may come a time when you need to append data to an existing hosted layer. With this update, this is now possible using append, where you can add features to your layer or update existing features. Supported formats for appending data include shapefiles, CSVs, Excel sheets, and GeoJSON files.

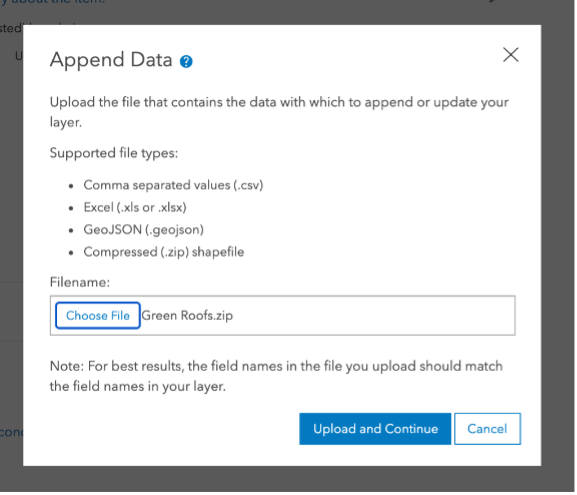

Option to append data to an existing layer
The append option is available on the item details page.

Join Features to a view

Following along the data management theme, many users have asked for the ability to create a joined layer that dynamically updates as the input layers do. To achieve this, you can now run the Join Features analysis tool and set your output to be a hosted feature layer view. The hosted feature layer view will be read-only and will update as your input layers change to reflect the most recent data.

For example, using a layer of green roofs on commercial properties, I could run the analysis tool Join Features to combine attributes from another layer that contains other information about the property—perhaps the year it was benchmarked for energy usage and the date it was constructed. This gives me a result layer with an even more comprehensive understanding of the characteristics of the property. By creating a hosted feature layer view, if an attribute changes, such as the size of the green roof in the green roof layer, this will be reflected in my view so that I do not have to run Join Features again to get the most up to date data.

Simultaneously publish a vector tile layer and associated feature layer

Now using ArcGIS Pro 2.8 you can publish a vector tile layer and an associated feature layer simultaneously!  You will now see this option when sharing a web layer from ArcGIS Pro.

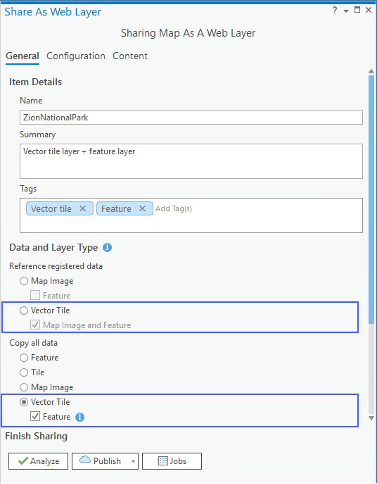

Publishing options from ArcGIS Pro
Option to share a vector tile layer with a feature layer from ArcGIS Pro.

With this new option, editors can update a feature layer with new features and once they are done, you could then rebuild the vector tile cache through the ArcGIS Enterprise portal. This means the edits would be reflected in the vector tile cache layer so any map where this vector tile cache layer is present is now also up to date.

ArcGIS Enterprise portal

Administrative reports

Administrative reports are one of the new features in ArcGIS Enterprise that I am most excited about. These exportable reports have lots of potential when it comes to helping administrators better understand their environments and act on that information. Under Organization > Status > Reports in your Enterprise portal, there are two types of reports that can be generated: member and item. The member report lists various attributes about members in your organization such as username, name, email, profile visibility, user type, last login, and group and item ownership. With member reports, you can answer questions such as:

The item report lists all items in your organization and information about them such as the item type, the date created and last modified, the number of views, owner, sharing settings, and tags and categories. With the item report, administrators are able to tell:

These are just a few examples of the many questions you can answer using the member and item reports. Reports can be exported by members with the default administrator role and downloaded to a CSV for further analysis and integration with other business systems. For more on admin reports, see the related blog: What’s New in ArcGIS Enterprise 10.9: Administrative Reports.

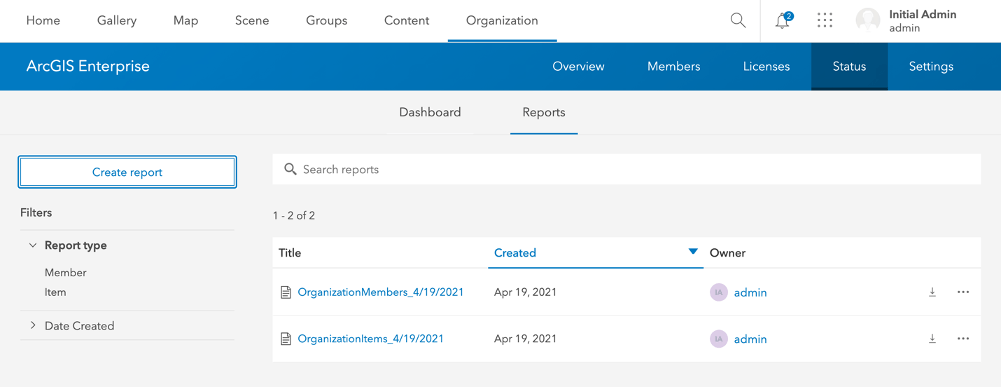

Option to create admin reports from the status tab
Under the status tab, administrators can export admin reports.

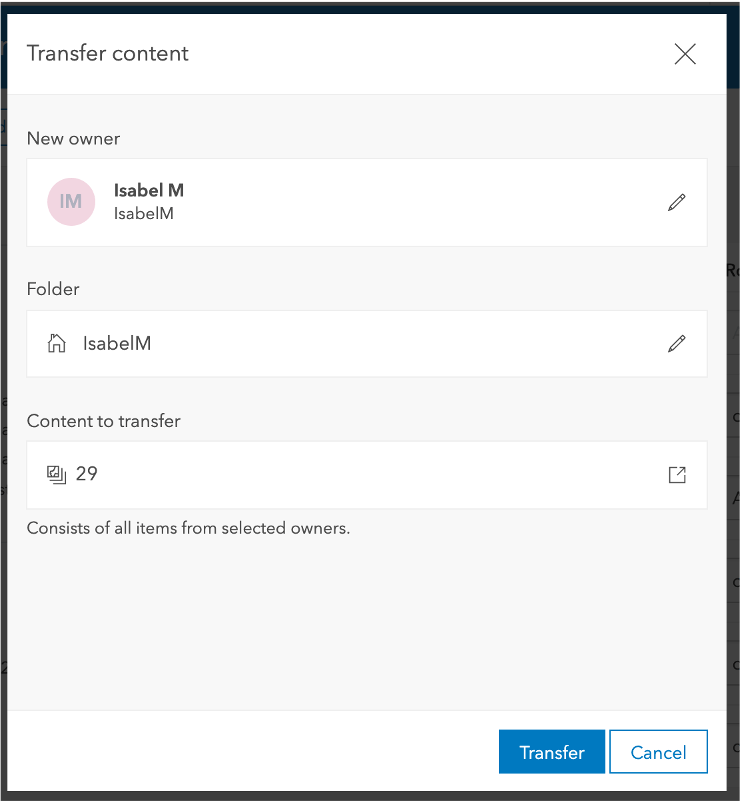

Bulk transfer items

There is now a new operation available that allows admins to quickly and easily transfer content from one owner to another. From Organization > Members in your Enterprise portal, you can select one or more members and then select the option transfer content. This will move all content to the new owner and is very helpful when you need to transfer content in bulk.

Easily transfer content from one or more members to another.

Home page editor

This release introduces a new home page configuration experience.  This new home page editor is component-based, optimized for accessibility, and mobile, desktop, and tablet friendly.  It includes the ability to add website and email links in the body text and in item gallery summaries. When item galleries are configured, you can now display specific item types, for example, maps, layers, or apps. When configuring an item gallery, the configuration panel now shows additional information about the shared state of the group and items inside it. This lets you ensure that the item gallery is visible to the appropriate audience, whether that’s only a group of particular members or all members of your organization.

Note: In ArcGIS Enterprise 10.9.x, both the new and existing home page editors will be available side by side. However, in a future release of ArcGIS Enterprise, only the new home page editor will be available. This is a great release to get familiar with the new home page editor and prepare for this to be the editor moving forward.

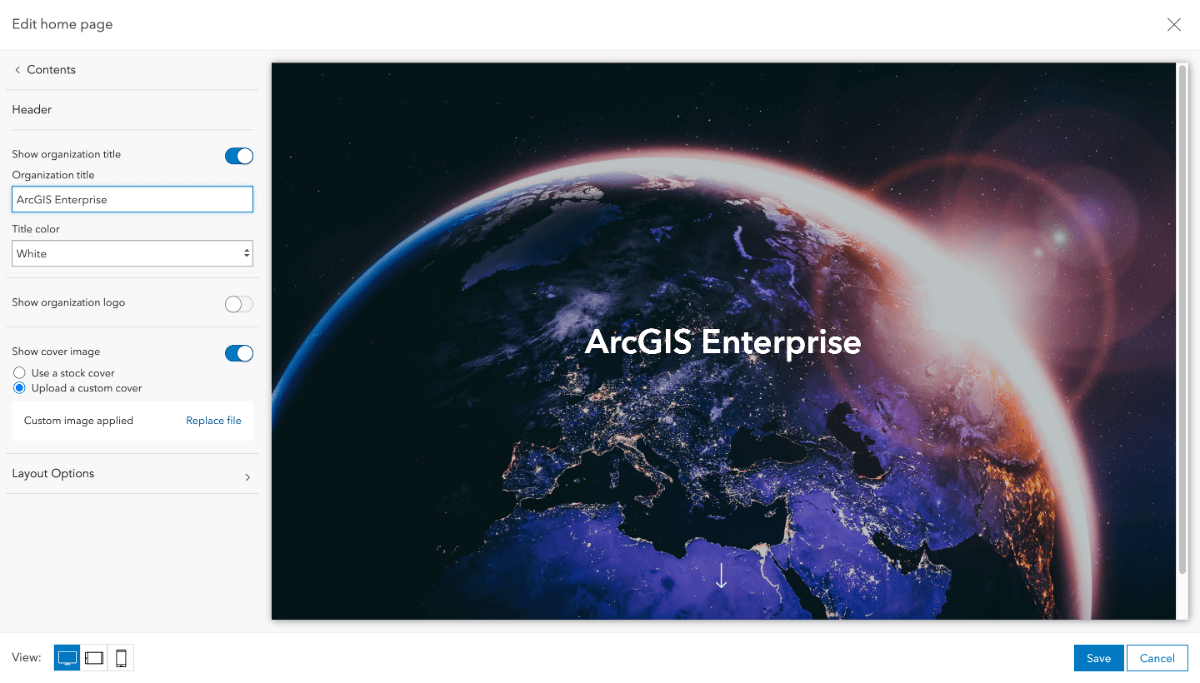

Example of the new home page design with components
Organizations have a flexible new home page to customize.

Navigation page visibility

New is the ability to specify who can access certain tabs within the Enterprise portal. Tabs that can be hidden include gallery, map, scene, and groups. An example of where this is helpful is as an administrator, you can make the Groups tab only visible to organization members, meaning it won’t show up for anonymous users visiting the ArcGIS Enterprise portal. Similarly, you can hide the map and scene tabs for everyone but those users who are able to create maps and scenes. Maps and scenes will still be able to be opened by other users, they just won’t see the tab.

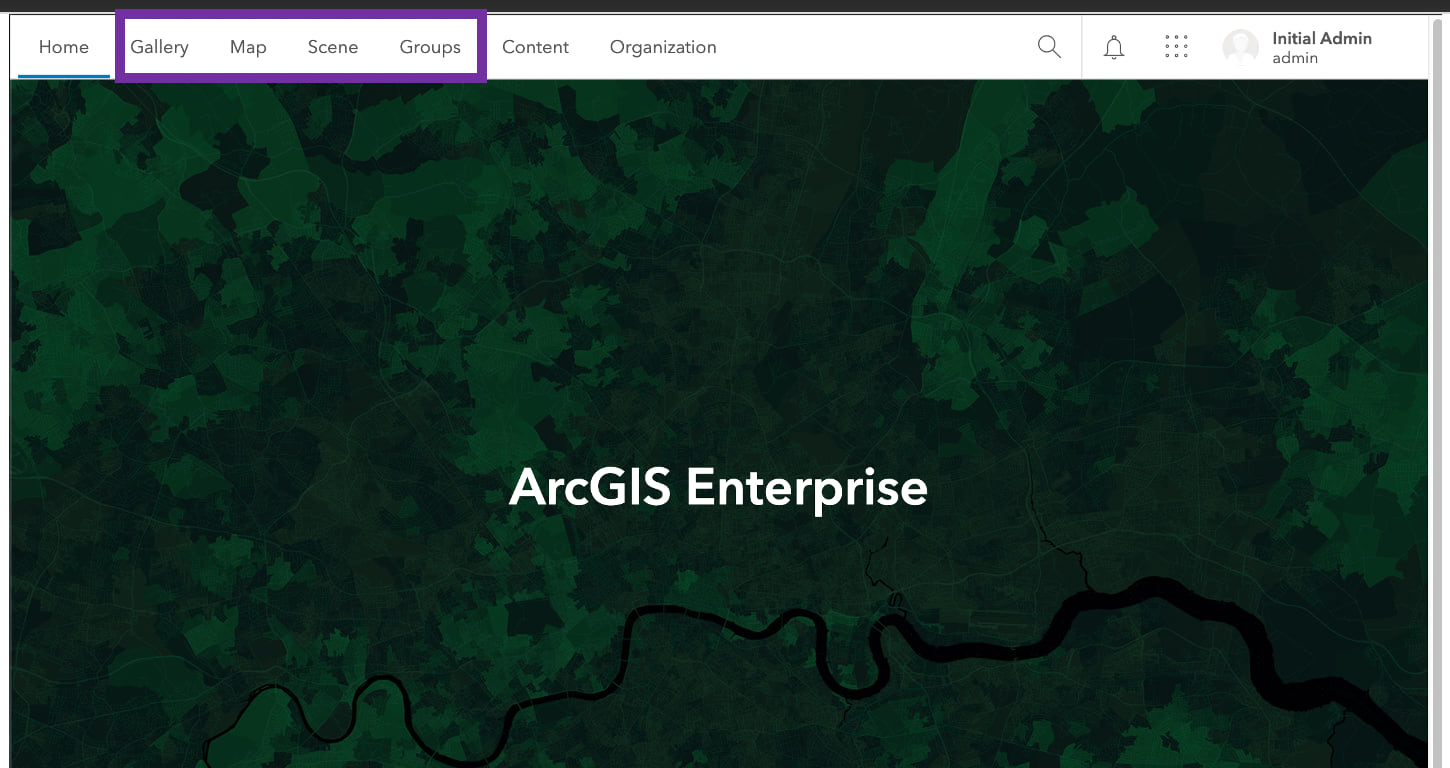

Hide tabs in ArcGIS Enterprise to customize what users can access.

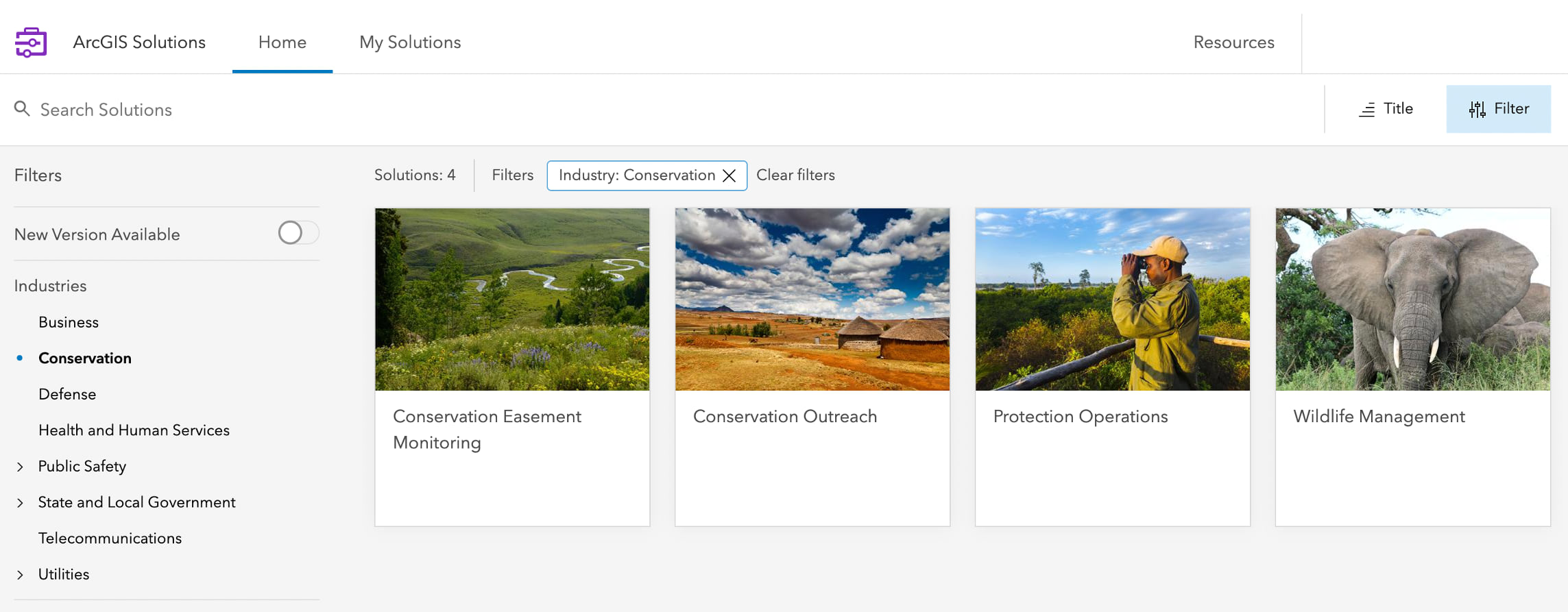

ArcGIS Solutions app

In the May/June 2021 timeframe, the ArcGIS Solutions app will be available for ArcGIS Enterprise 10.9.  This app is a way to quickly deploy solutions directly into ArcGIS Enterprise and will be made available as a separate install. Once the ArcGIS Solutions app is installed, it can then be accessed through the app launcher at the top right of your Enterprise portal. Here you can browse through the solutions, search for a specific solution, or filter the gallery to quickly find a solution. Once you discover a solution you are interested in, the information panel will provide an overview of the solution and an option to deploy it.

ArcGIS Solutions provide configurable ways to get up and running quickly across various industries.

For more information about the ArcGIS Solutions app, take a look at the Introducing the New ArcGIS Solutions App blog.

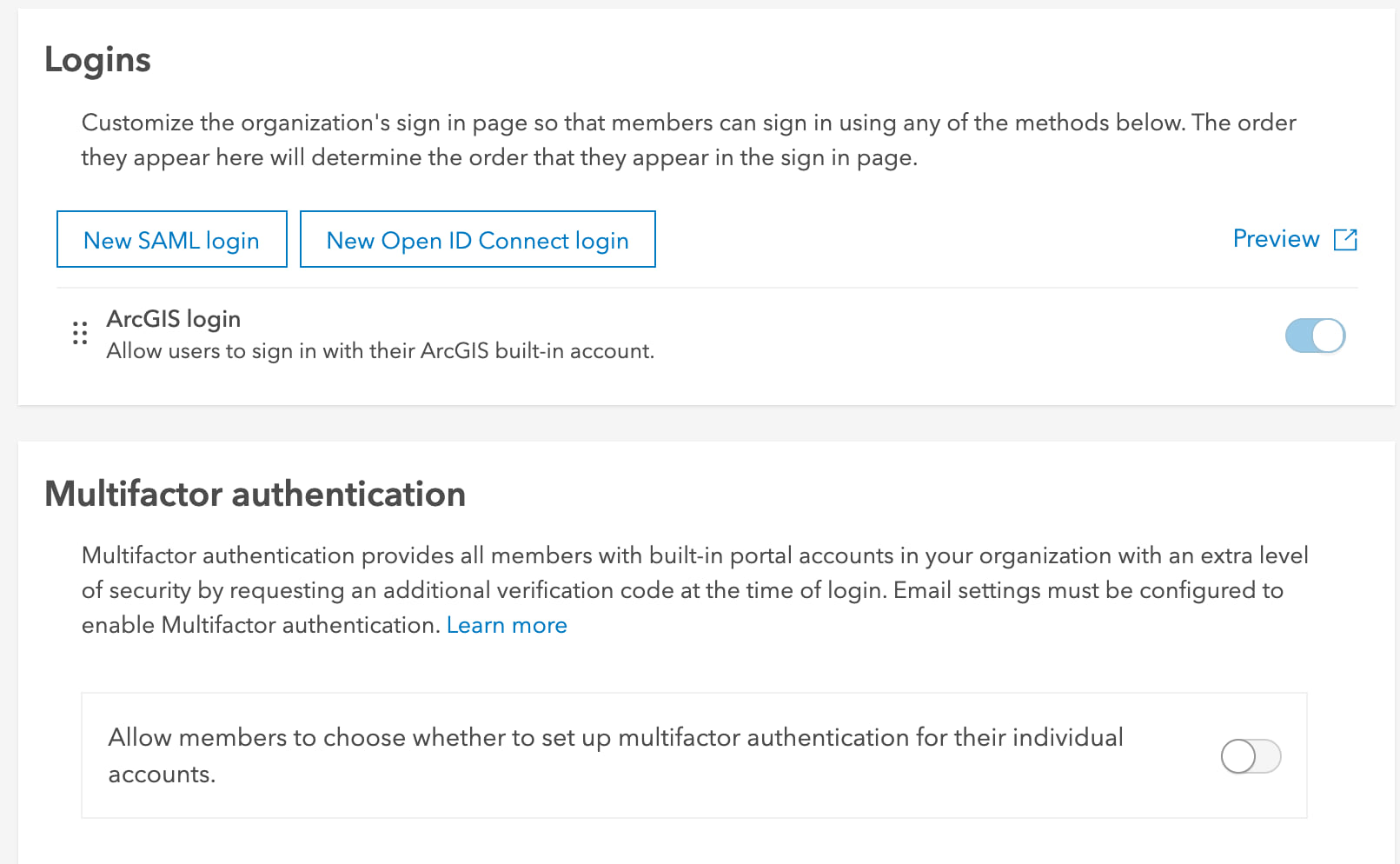

OpenID connect

Starting with this release of ArcGIS Enterprise, administrators can now set up OpenID Connect logins to allow members to sign into ArcGIS Enterprise using the same username and password they use to sign into their organization’s OpenID Connect-based login system.

Multifactor authentication

With this release, ArcGIS Enterprise includes the ability to enable multifactor authentication for built-in ArcGIS Enterprise accounts. This option provides an extra level of authentication at sign-in by requesting a verification code, commonly sent to your mobile phone, in addition to the username and password you traditionally provide. Multifactor authentication can be set up using the authentication provider of your organization’s choice. The options for OpenID connect and multifactor authentication are pictured below:

Updated experience for configuring emails

In the last release, we introduced the ability to send emails from the ArcGIS Enterprise portal. This new feature was helpful for a multitude of reasons—such as when a member of the organization forgets their password and needs a temporary password reset link sent to them, or when your portal license is expiring. In order to configure emails, ArcGIS Enterprise is integrated with your organization’s SMTP server.

Previously, email settings are configured through the Portal Administrator Directory. Now beginning at this release, emails can be configured directly within the ArcGIS Enterprise portal. This release also includes new email-driven workflows, such as notifications when the disk space is low on your portal machine, when items receive comments, and when profile settings are updated.

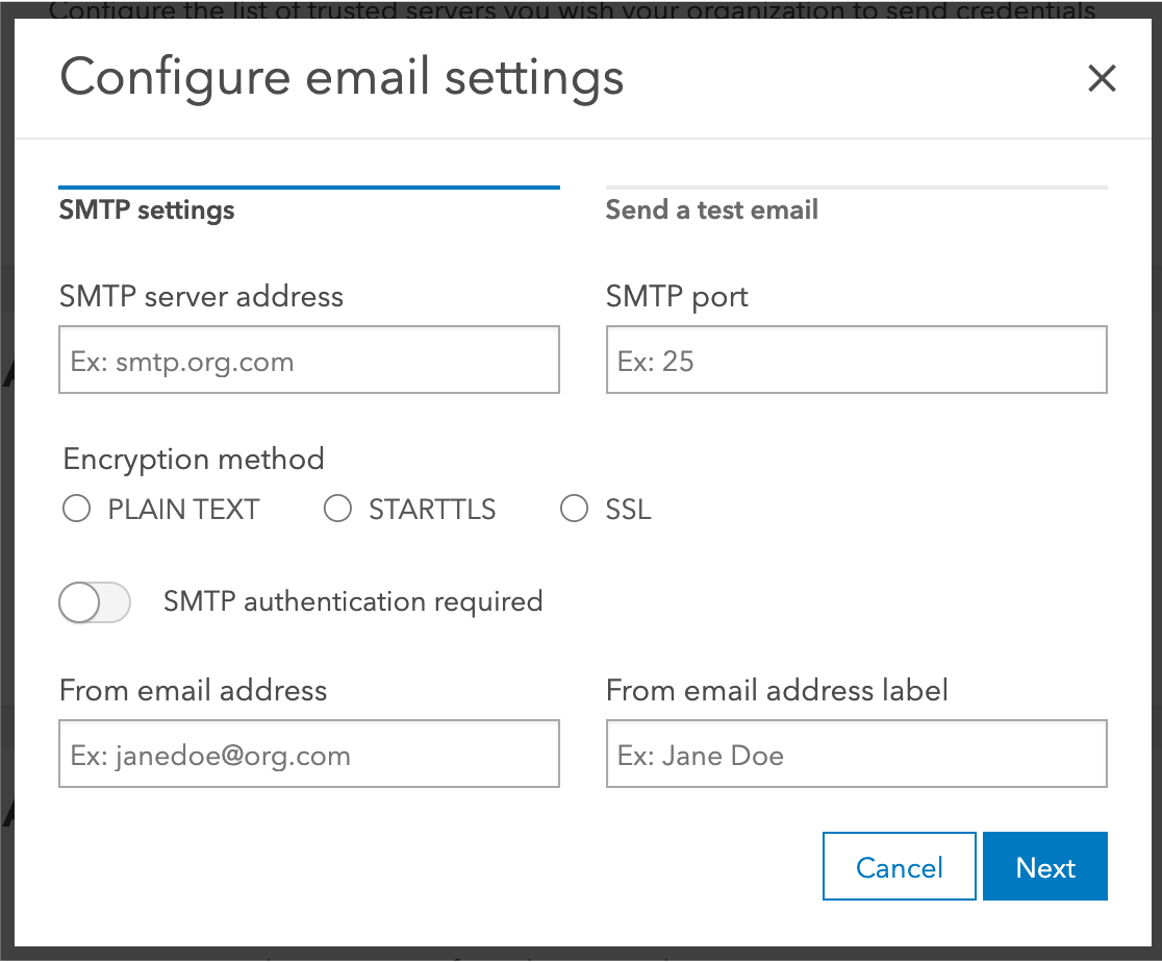

The option to enable emails and set email settings.
The option to enable emails and set email settings.

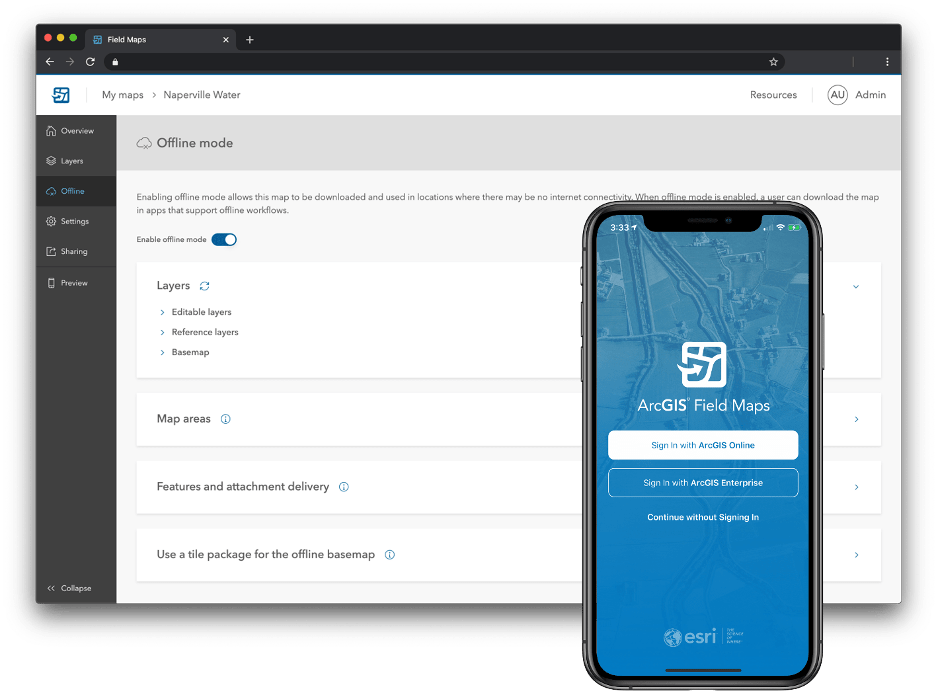

ArcGIS Field Maps included with ArcGIS Enterprise install

ArcGIS Field Maps is a new app that was introduced last year. It that allows you to streamline field workflows and take maps anywhere. Mobile workers can use Field Maps to explore the maps you make in ArcGIS, collect and update data, and track their location—all from one app! In previous versions of ArcGIS Enterprise, Field Maps was a separate install in addition to ArcGIS Enterprise. Starting in 10.9, ArcGIS Field Maps is now included with ArcGIS Enterprise by default, no separate installation necessary. For more information on ArcGIS Field Maps, see the ArcGIS Field Maps documentation.

Map Viewer Beta

The new Map Viewer was first available as a beta at the ArcGIS Enterprise 10.8.1 release. At ArcGIS Enterprise 10.9, the new Map Viewer will be available in a beta capacity as well. For more information on installing the beta, visit the Map Viewer Beta in ArcGIS Enterprise 10.9 blog.

We encourage ArcGIS Enterprise organizations to try out the new Map Viewer! A few of the key capabilities include new symbology styles such as dot density, improved color ramps, the ability to group layers, new clustering functionality, dynamic filtering, enhancements to pop-ups, and much more.

ArcGIS Enterprise Sites updates

ArcGIS Enterprise sites are a great way to showcase your maps, data, and apps to a wide audience using tailored websites and pages. There are many new features in ArcGIS Enterprise Sites.  These new features include the ability to:

For more, be sure to take a look at what’s new in ArcGIS Enterprise Sites.

ArcGIS Experience Builder updates

Introduced in the last release of ArcGIS Enterprise, ArcGIS Experience allows you to create unique web experiences using flexible layouts, content, and widgets that interact with 2D and 3D data. New features for ArcGIS Experience Builder in ArcGIS Enterprise include:

To see what all is new for ArcGIS Experience Builder at this release of ArcGIS Enterprise, check out what’s new in ArcGIS Experience Builder.

ArcGIS StoryMaps updates

ArcGIS StoryMaps is a simple map making application that enables you to create custom maps to enhance your digital storytelling. Updates to ArcGIS StoryMaps in ArcGIS Enterprise include:

For more information on ArcGIS StoryMaps, take a look at what is ArcGIS StoryMaps.

Server roles

⁃ GeoAnalytics Server introduces three new tools: Calculate Motion Statistics, Trace Proximity Events, and Summarize Center and Dispersion. With this release also includes the ability to use Arcade expressions to calculate speed, acceleration, and distance on tracks using the following tools: Reconstruct Tracks, Calculate Field, and Detect Incidents. In addition, the Join Features tool now supports the ability to keep all target features. See what’s new in GeoAnalytics Server.

In GeoEvent Server you can now take advantage of improved event throughput for complex GeoEvent services, quality improvements for service designer and GeoEvent Sampler interfaces, and ArcGIS GeoEvent Gateway service resiliency improvements. See what’s new in GeoEvent Server.

With Notebook Server, you will notice a new and improved ArcGIS Notebooks experience for creating new notebooks, viewing notebooks you own and those that have been shared with you, managing notebooks, and Esri sample notebooks access. Notebook snapshots are also now available, which allow ArcGIS Notebooks authors to preserve up to five point-in-time, full snapshots of a notebook. See what’s new in Notebook Server.

New in Image Server are two new parameters that assist with managing imagery data: Allow Copy and Allow Analysis. Raster analysis includes updates to a number of existing tools as well as new tools such as Distance Allocation, Distance Accumulation, Optimal Region Connections and more. See what’s new in Image Server.


Migrate services from the ArcMap-based runtime to the ArcGIS Pro-based runtime

With this release comes not only new features and functionality but also a reminder that ArcGIS Enterprise 10.9.x, part of the ArcGIS 2021 releases, will be the last release series that supports publishing and consuming of services from ArcMap.  This means it’s time to start migrating any services using the ArcMap-based runtime to the ArcGIS Pro-based runtime. For more on this, see the announcement from earlier this year regarding the removal of the ArcMap-based runtime from ArcGIS Enterprise.

This release of ArcGIS Enterprise includes tooling to assist you in migrating your services’ runtimes:

1) Edit Runtime operation – this operation is available through ArcGIS Server Manager and allows for compatible service runtimes to be migrated one at a time.

2) UpdateArcMapServices utility – this utility is a command line utility that comes installed with ArcGIS Server and allows for compatible service runtimes to be analyzed and to be migrated all at once.

To learn more about the migration tooling introduced at this release, be sure to check out the blog on migrating services to the ArcGIS Pro-based runtime in ArcGIS Enterprise. Also visit the technical paper for more information on manually migrating your services: Manually migrating services from the ArcMap-based to the ArcGIS Pro-based runtime.

Introducing ArcGIS Enterprise on Kubernetes

ArcGIS Enterprise on Kubernetes is now available, Esri’s new cloud-native deployment option for ArcGIS Enterprise based on microservices and containerization! This deployment option is optimized for scalability, maintainability, and resiliency, and is managed and orchestrated using Kubernetes, an open-source system for automating deployment, scaling, and management of containerized applications.

ArcGIS Enterprise on Kubernetes is another deployment option, offered in addition to the current deployment methods of Windows and Linux. If you are interested in Kubernetes and this new deployment option, please have a conversation with your Esri representative. For more information on ArcGIS Enterprise on Kubernetes, visit the Kubernetes blog series on the blog site.

This concludes an overview of some of the key features and capabilities in this release of ArcGIS Enterprise! For a comprehensive look at everything included in this release visit the What’s new in ArcGIS Enterprise help topic and associated subtopics. Also visit the What’s New in ArcGIS Enterprise 10.9 video:

We hope that you find inspiration in this new release and are beginning to think about ways you can apply these new features to your own workflows!

– Jill & Hilary

About the authors

Hilary is a Product Manager for ArcGIS Enterprise and loves urban ecology, biking and her dog Ada.

Jill leads the ArcGIS Enterprise product management team. She works to make sure ArcGIS Enterprise users get the most they can out of their self-hosted software. In her free time, Jill loves to be outside in the California sunshine.
