The great indoors: floor awareness and mobile operations

Mobile GIS capabilities have grown significantly over the last 10 years, with ArcGIS Field Maps being a large part of that growth. Whether it’s supporting sophisticated, form-based data collection or high-accuracy GPS positioning, Field Maps has evolved with the growing needs of the mobile workforce. Yet, mobile GIS has historically been confined to outdoor locations—outside of the facilities you work in and around every day. With the more recent releases of Field Maps, I’m happy to say that we can start to broaden where mobile workflows take place. After a couple of key enhancements, Field Maps can now support indoor workflows.

In the 21.4 release, Field Maps started to support floor-aware maps, introducing the Floor tool that empowered mobile workers to change which floor was visible in the map. This allowed mobile workers to filter which floor they were viewing, seeing only the floor plan and features on that specific floor. This instantly enabled Field Maps to adapt to more nuanced indoor data models and offer greater operational awareness when working indoors.

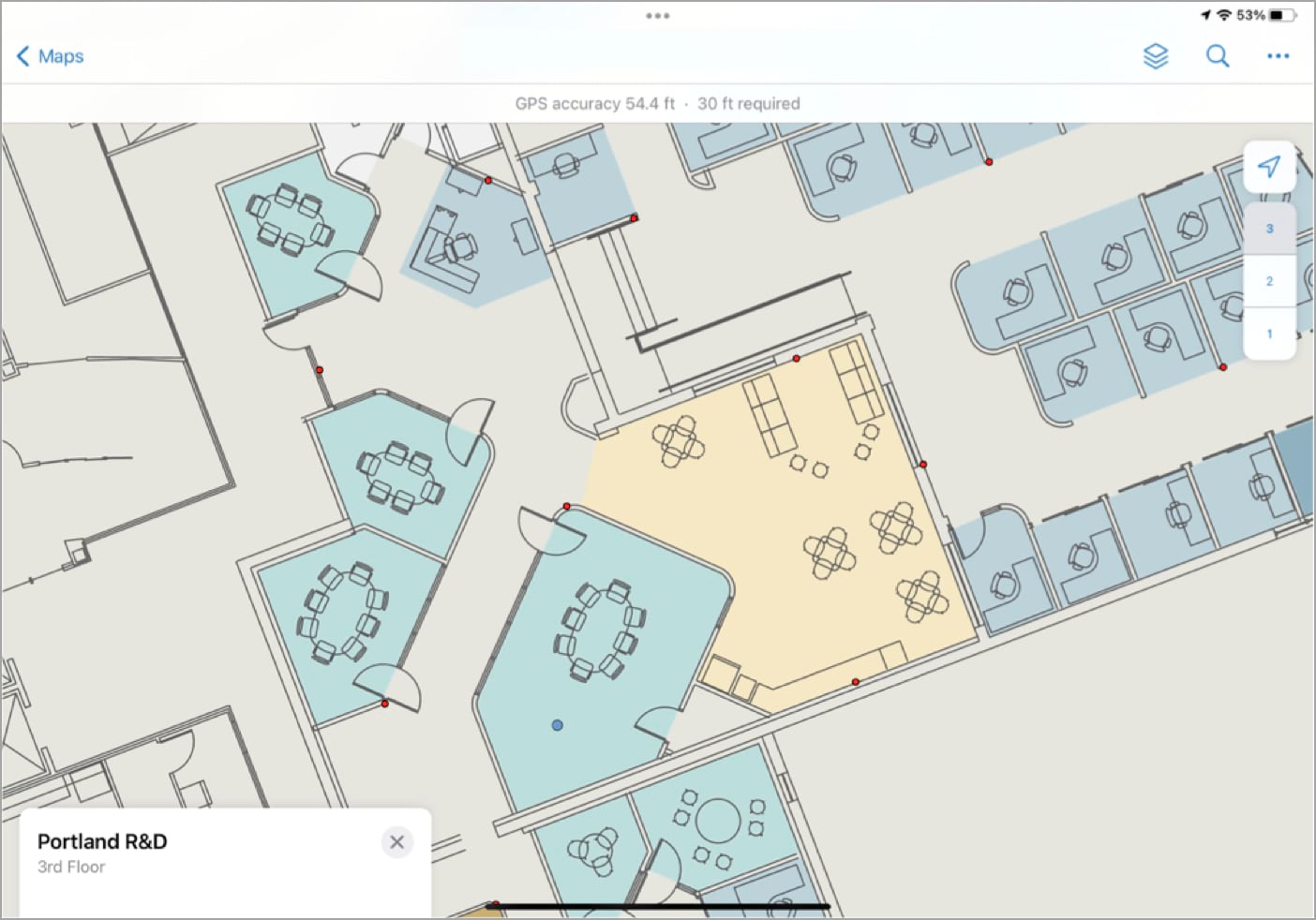

Floor tool in ArcGIS Field Maps
Floor tool in ArcGIS Field Maps

With the 22.2 release in June, Field Maps added support for indoor positioning systems or IPS. At its simplest, if you take the time to survey your facilities, the indoor position in Field Maps will be drastically improved. Placing the “blue dot” exactly in the hall or room you’re currently standing in.

At our current 22.4 release, we made other tools and capabilities in Field Maps “floor-aware.” For example, editing is a very popular capability of Field Maps. Now, if the map you are editing is floor-aware, floor information will be stored with new features when they are captured. This includes a streamlined experience for changing the floor attribute when editing existing features.

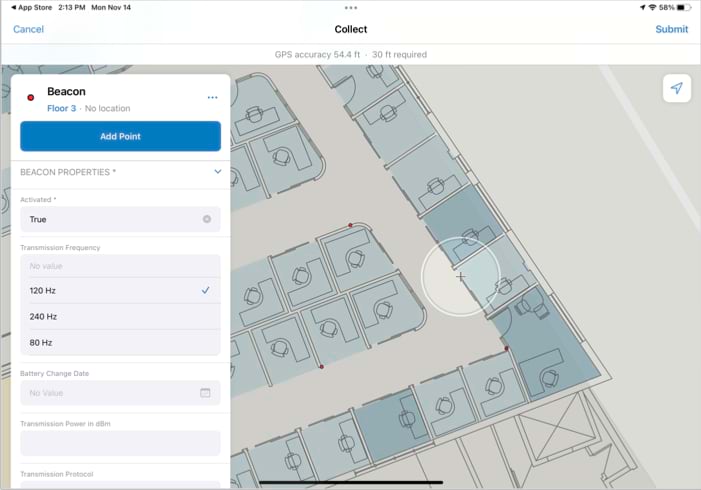

Indoor editing in ArcGIS Field Maps
Indoor editing in ArcGIS Field Maps

Other capabilities of the app, like geofences and location sharing are also now floor-aware at this release. This ensures, for example, that mobile workers will only get notified by a geofence when they are on the specific section of the floor that the geofence was authored to be on. Location sharing has also been improved to store floor information—not only will the X and Y location of a mobile worker be recorded, but also the floor that the mobile worker is on when they share their location.

Bringing Field Maps indoors reflects our desire to expand mobile workflows, allowing all the capabilities of the application to work wherever you work.
