Introducing Zone Lookup

Web mapping applications can help community members easily answer questions about their location. What resources are available in my county? Is my house near a park? What school would my children go to if I purchased a house in a specific neighborhood? A new configurable app Zone Lookup was added to ArcGIS Online during the June 2019 update which will help community members answer questions about their location in reference to zones. Zone Lookup is a responsive app that is optimized on a variety of screen sizes and devices, allowing users to easily interact and view valuable information from any device. When describing zones in the context of this application, zones are polygon layers that represent a specific characteristic, like flood zones, school districtselectoral precincts, service areas, etc. This article will demonstrate how to configure the application to enable your users to quickly answer questions about zone data.

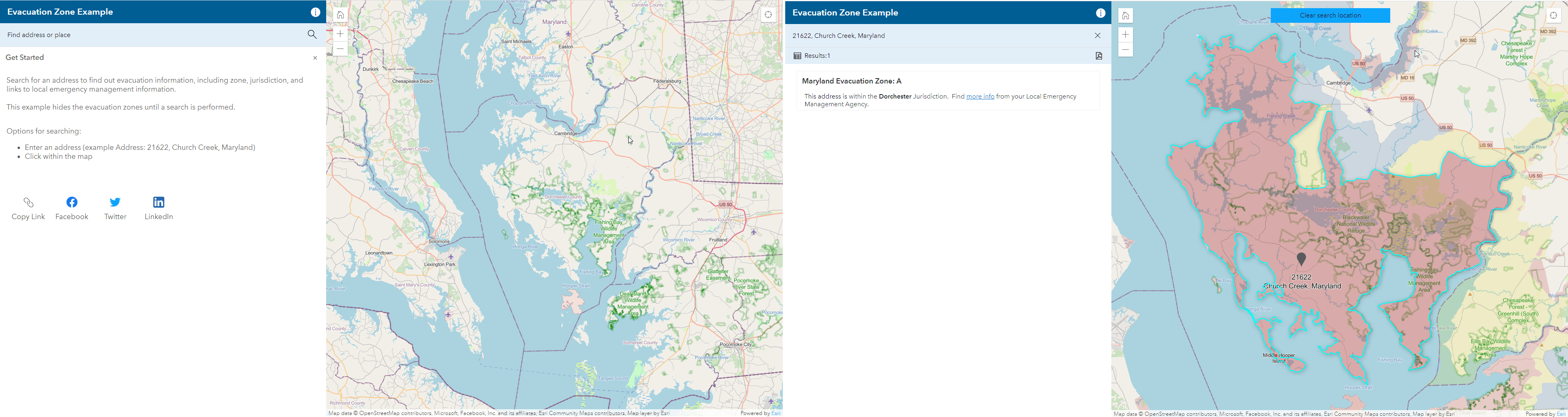

Results of a searched address in the zone lookup app.

The Zone Lookup app requires that your user inputs a location. They can search for an address or definthe location by clicking on the map or using the geolocation service on their mobile device. The app will determine if the location falls within (intersects) the available zones or not.  If the searched location is within the zone, information about zones (Search Results) will be returned, if not you will be notified the location is outside of the zoneThis may seem complicated to explain with words, but the user interaction is simple. All the user needs to do is input their address and view the search results. Let’s look at how to configure a Zone Lookup app.

Step 1. Create a map

The map must contain one or more polygons of your zone dataFor this example, three polygon layers showing High School, Middle School, and Elementary School Districts have been added to the map used in the app.

Take time to configure the pop-up. The information returned about the zones comes directly from the popup in your map.  When creating the pop-up ensure that relevant information is displayed in a way that your intended users would understand. In the app, the zone title will be the popup title and zone description will be the popup information. The image below shows the map pop-up next to the zone information from the Zone Lookup app. In this example, attributes from the results layers are constructed into a sentence to make the information easy to understand.

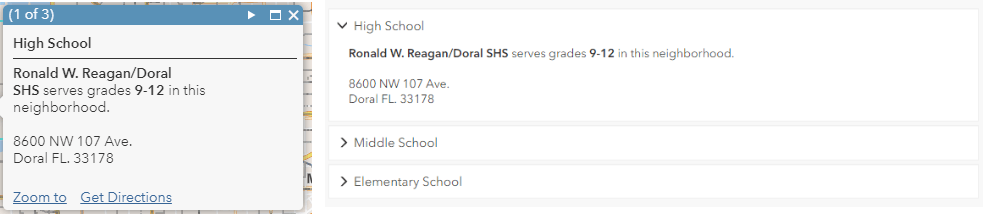

High School boundary pop-up in the web map and High School zone information in the Zone Lookup app.

Chose meaningful symbology and review it at multiple scales. When users visit your Zone Lookup app, they will start at full extent, when location is searched the map will zoom to the Search Results.  Consider transparency, as zones can cover a large area. There may be instances where you want your users to see additional layers for reference or be able to view details like street names in the basemap.

Note. There is a configuration option to hide layers until a search is performed.

Step 2. Pick the Zone Lookup Template

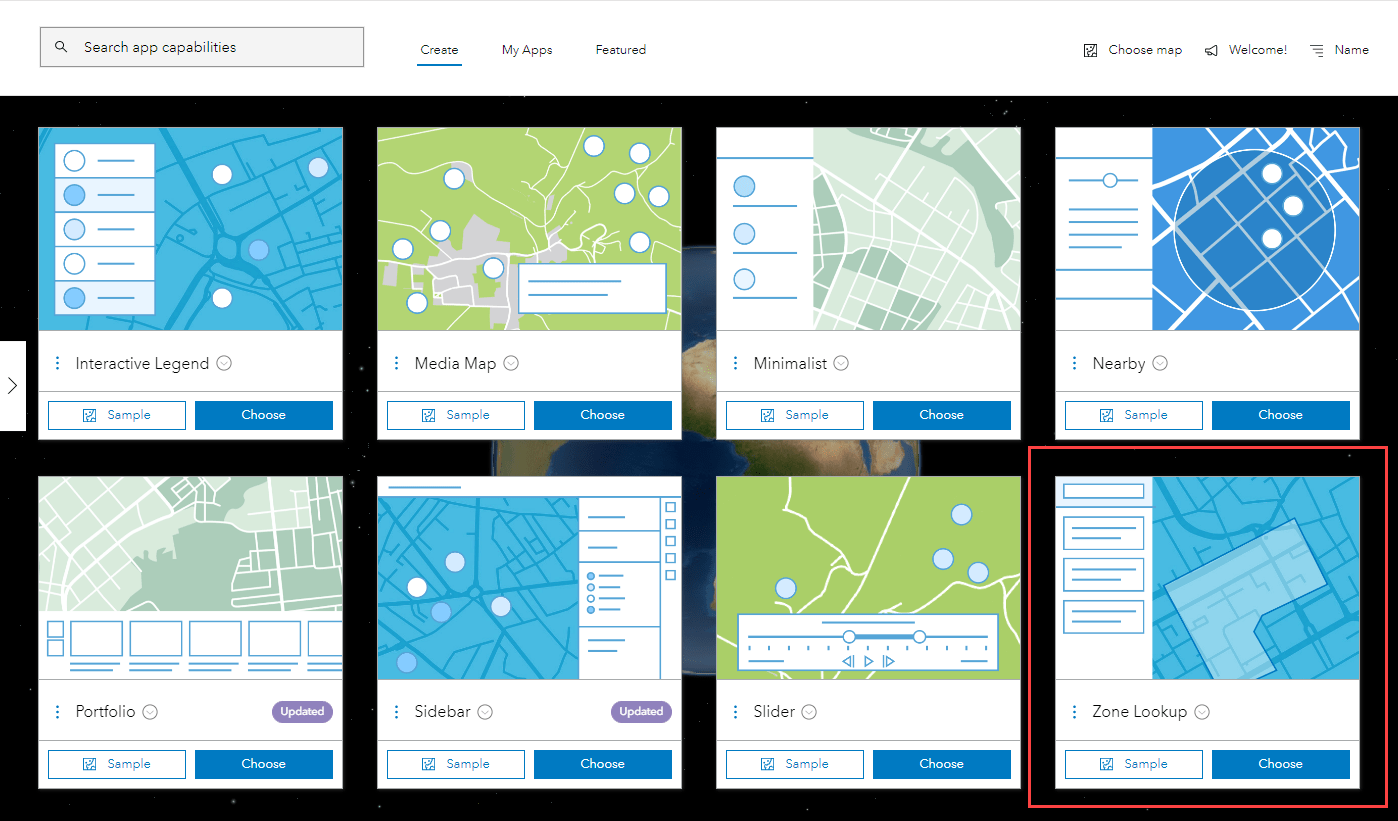

Once your map created and saved, click Share in the Map Viewer and click Create a Web App.  Select Zone Lookup as your app.

(Tip: Z is the last letter in the alphabet and apps are listed in alphabetical order, so this app is the last in the list. To quickly find the app, scroll directly to the bottom of the Select a Configurable dialog or type Z in the search.)

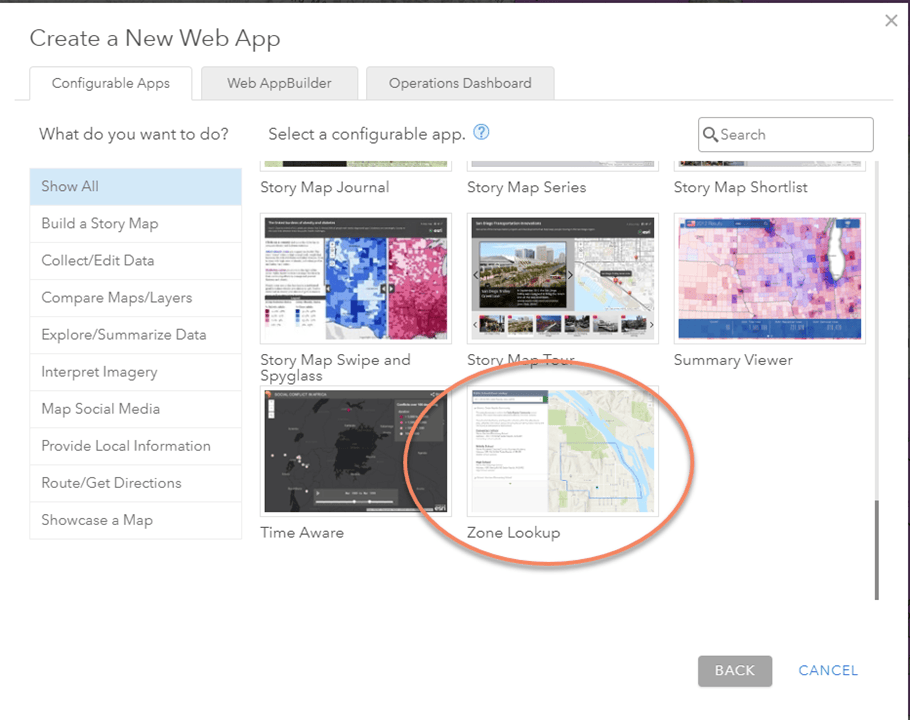

Zone Lookup selected in the Configurable Apps tab of the Create a New Web App window.

Step 3. Configure the application

The Zone Lookup app has a variety of configurable options, the information below will highlight a few along with examples of configured apps.

Express Setup

On the Step 2 – About set the title, and the onboarding text for the app.  Onboarding text by default provides generic instructions for how users should interact with the app. Configuring your onboarding text that is specific to your app and data can help provide context and call to action for your users.

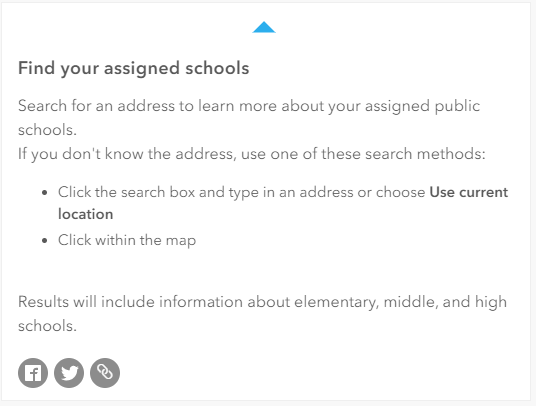

Customized text for the onboarding panel.

Step 3 – Theme and Layout is where you can chose the look and feel of your app.  Options include a light and dark theme, in addition if your organization has shared theme enabled, you can chose to use it within your app. Zone Lookup has two layout options, by default the map will be shown or you can choose to hide the map.  In some cases, the map isn’t required to answer the users questions. For a simplified app without a map, you can select the hide map in application setting. Your users will still be able to answer the spatial questions from the layers in the map, but the results will be returned as text, without a visual display of the map. Try out the World Time Zone Lookup app to use an app without a map.

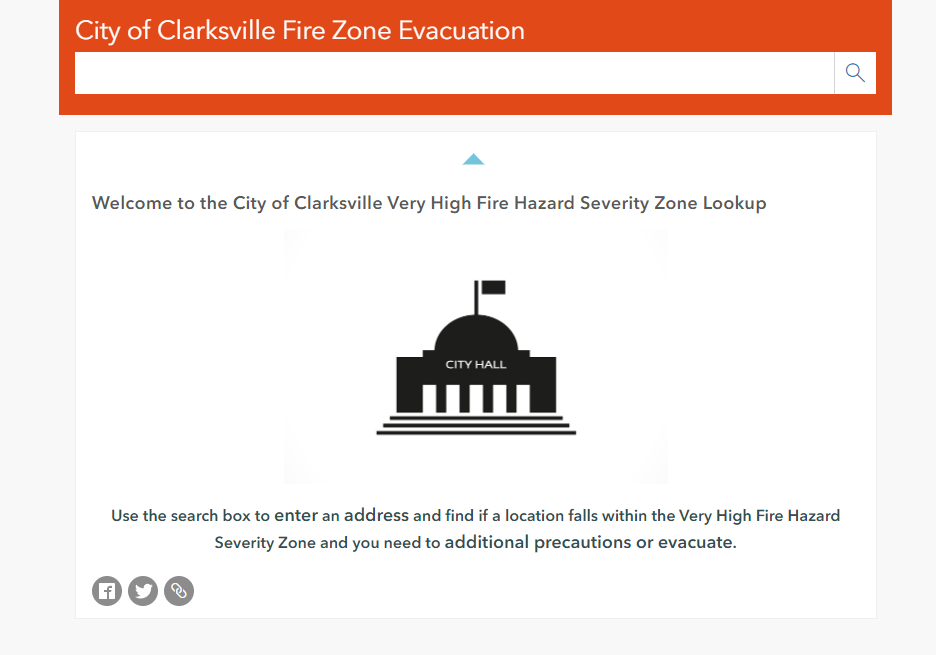

Information panel of a Zone Lookup app without a map.

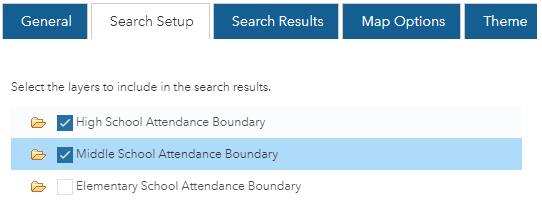

Step 4 – Interactivity is where you can configure the app interactions.  First, select any layers you want returned in the search results by checking on layers from the list options.

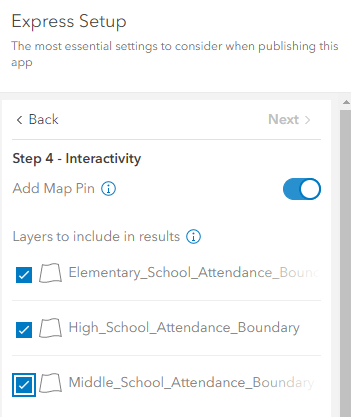

Layer result selection area

When search results are returned, you have the option to include custom text if no results are returned. Configure a message to indicate to users when no results are returned. This way users will see that there were no results, instead of just having nothing returned in the results. Full text options (which include before and after custom text) are available in full setup mode.  Below is an example of custom before and after text.

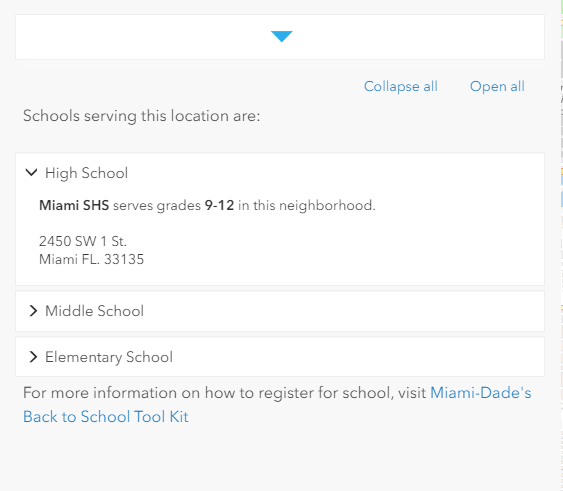

Results from a school attendance boundary with custom text before and after the results.

Next, set the Search Configuration. Configure the search locators used by the app to provide in a clear searching experience. To prevent users from selecting a source before searching, configure the app to only use one locator source. In this example, additional locators available in the organization were disabled, the world Geocoding service was configured to be the only available search within the map. This way users can only search for locations relevant for this area.

This completes the express setup; the app is ready to publish and share.  For more options switch to full setup. Full Setup contains advanced options as well as app-specific options particular to the chosen app.

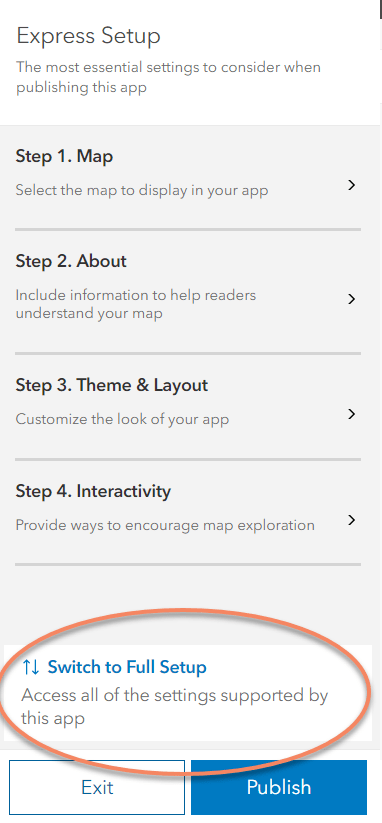

Switch to full setup option highlighted in the Configuration Panel

In full setup mode, navigate to the Interactivity section and select Modify, this section offers the full list of options to modify the map.  One option is to hide layers in the map. Sometimes layers of overlapping zones look confusing. If the display of all the potential resulting layers is confusing, consider selecting the option to hide the layers when the app loads. This way a blank map will appear when the app loads and the layers will only appear when the search results are selected, as shown in this example.

Two Zone Lookup apps, one with feature layers visible and one showing searched address with only the intersected zone appearing.

An additional configuration option exists to limit locations returned by a polygon. This will refine results by using a polygon layer as the search boundary. Only results within the searched polygon will be returned.   Polygon search is used in this example, showing features within the selected zone. This option is available in full setup under Interactivity – Results.

More Options

These are just a few of the highlights of the Zone Lookup Configurable App template.  There are more configurable options available within the full setup mode of the app, take a look for yourself and explore all the options.
