Announcing ArcGIS Maps SDK 1.4 for Unity

Version 1.4 of ArcGIS Maps SDK for Unity continues our dual-purpose mission to bring accurate real-world geospatial data to Unity and to integrate GIS capabilities seamlessly with your game engine app development. Highlights in this release include filtering of building scene layers by category, discipline, or SQL expression, as well as the ability to replace areas of terrain with a constant elevation value. In addition, previously released support for scene layer filtering and mesh modifications is now available on mobile platforms, and all these capabilities are made available both via the API and through a low-code/no-code experience within the Unity editor.

Building scene layer filtering

Building scene layers enable you to view one or more building models together in their spatial context and to work with the component parts of these buildings by querying and filtering different aspects. The ability to visualize building scene layers was already available in a previous release, but these layers are visually complex and contain highly detailed representations of real-world structures. With the incredible level of detail a building scene layer may include, you often to want to interactively filter elements or parts of a building to see only the information that is important and necessary for them to complete their work. For example, you may want to see only the parts of a building that are on the second floor, show only the load-bearing walls, or just the electrical system. As a developer using either the low-code/no-code tools or programming with the API, you can support these user requirements by applying a filter to a building scene layer. Filters give you access to the full structure of a building scene layer including the discipline, such as architectural, the categories, such as walls, and custom queries to filter elements based on their attribute values such as the material type or manufacturer.

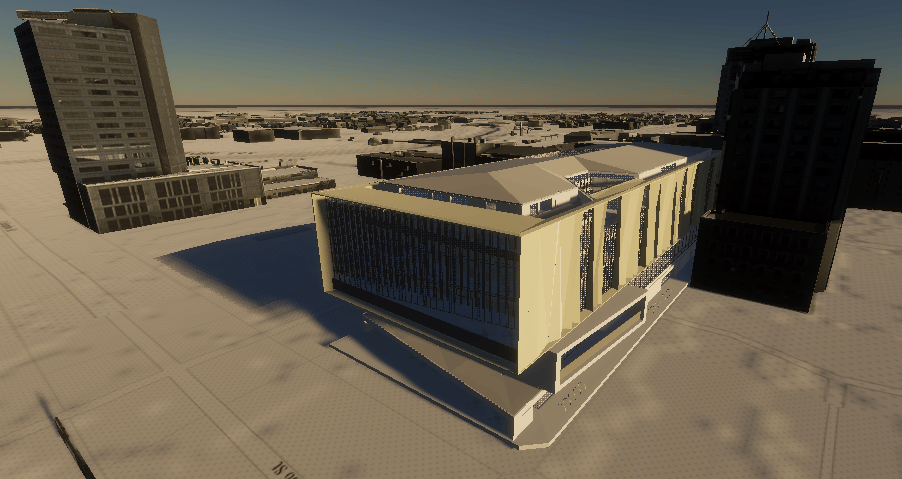

Building scene layer representing the Turanga Library in Christchurch, New Zealand (building data provided by Christchurch City Council).

Opened in October 2018 and covering approximately 10,000 square meters over 5 floors, the Turanga Central Library in Christchurch, New Zealand is a good example of a complex, modern structure digitally designed and recorded in great detail. It has been published as a building scene layer, derived from an original Revit Model by Christchurch City Council, enabling us to use the new tools in the latest release of the Maps SDK for Unity to explore the building. For example, by filtering out the primary aspects within the architectural discipline such as the walls, floors, ceiling, and roofs we can show all the interior aspects and various adornments.

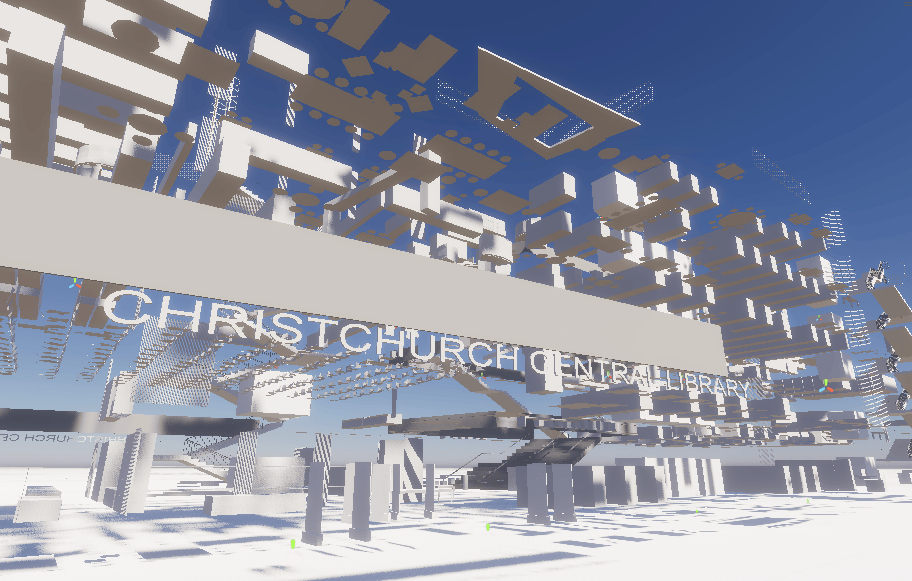

Filtered building scene layer (building data provided by Christchurch City Council).

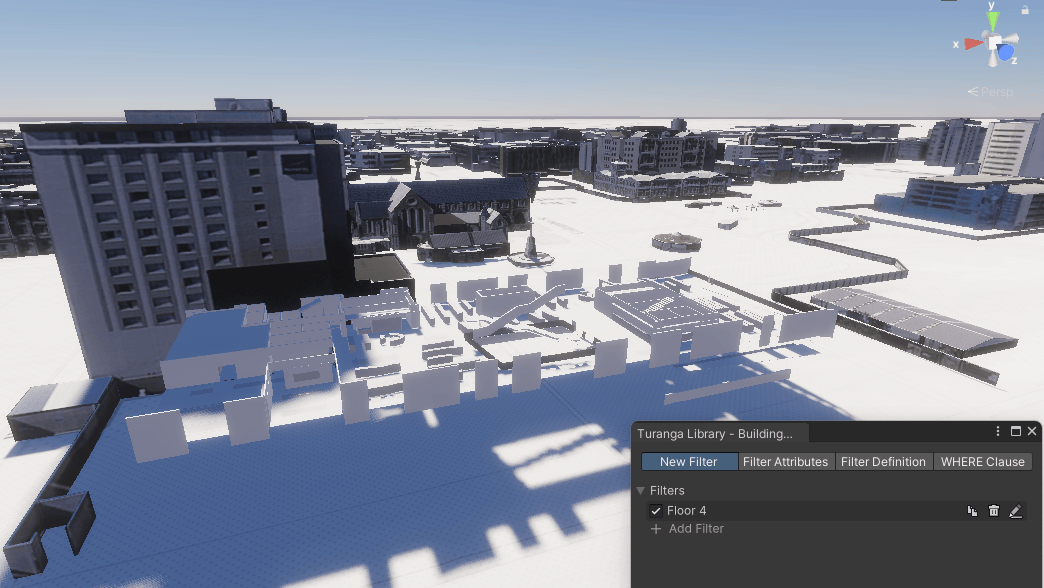

In addition to filtering by discipline and category, these new UI tools enable you to create custom filters based on SQL expressions. Here we’ve used this capability to filter the entire building by the building level and show just the content for a single floor.

Custom filter expression for a building scene layer (building data provided by Christchurch City Council).

Spatial filtering and mesh modification

The ability to spatially filter scene layers and modify meshes was already available in a previous release, but only when using the API, and only on the supported desktop platforms (macOS and Windows). With this release, this powerful capability can now be accessed through a new UI in the Unity editor as part of our ever-increasing support for no-code/low-code workflows. The UI tools enable you to interactively draw and modify polygon areas to be applied as spatial filters for 3D object scene layers and building scene layers, and applied as mesh modifications for integrated mesh scene layers and terrain datasets. This feature can now also be included in applications deployed on the mobile platforms Android and iOS.

A further valuable addition for mesh modifications is the new ability to simply apply a constant elevation value to the polygon areas you have defined, avoiding the need to replace with another existing terrain dataset. A corresponding new modification type replace has been added, enabling you to apply a new constant value to the specified area and specify a new altitude.

ArcGIS Maps SDK for Unity now available in the Unity Asset Store

The ability to bring real-world location data from ArcGIS directly into your Unity application development experience is easier than ever now the Maps SDK for Unity is available in the Unity Asset Store. To take advantage of this new convenient way to import the Maps SDK for Unity to your projects, follow the Unity doc topic Importing an Asset Store Package.

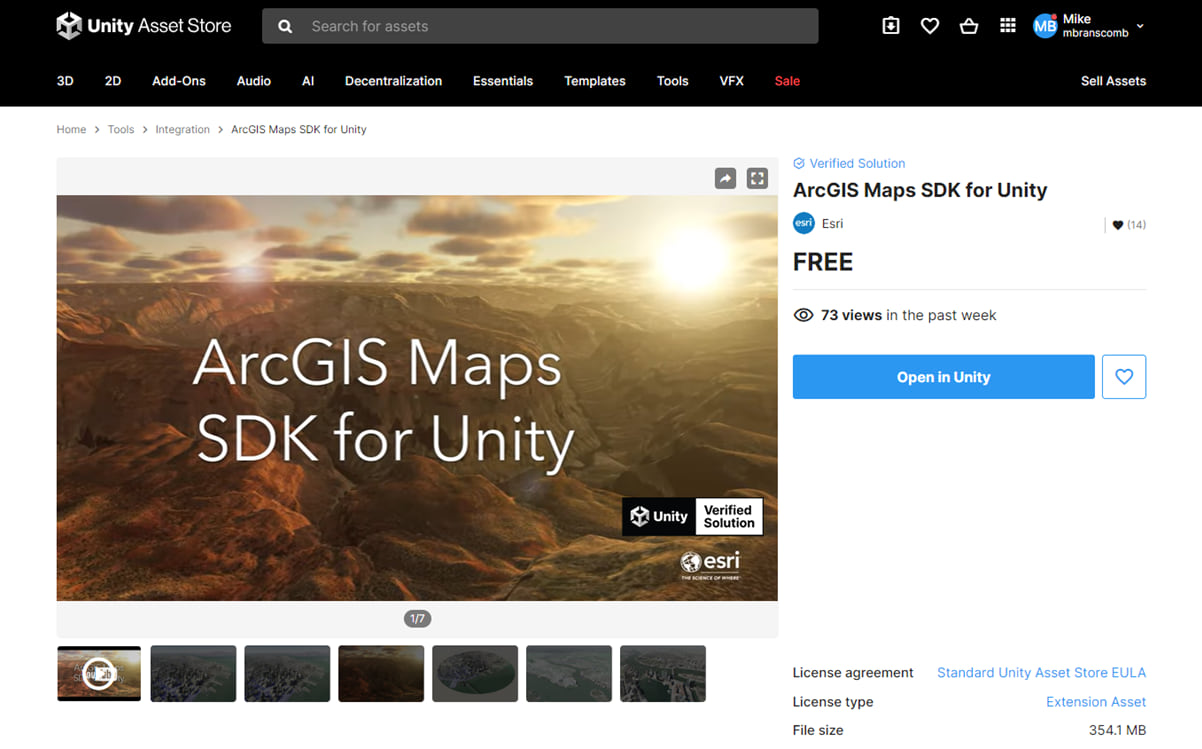

ArcGIS Maps SDK for Unity in the Unity Asset Store
ArcGIS Maps SDK for Unity now available in the Unity Asset Store

Download and get started

To get the latest version, simply add the Maps SDK for Unity to your projects from the Unity Asset Store. Or alternatively, go to the ArcGIS Developers site, sign in, and download ArcGIS Maps SDK for Unity. See the Release Notes for more details about enhancements, deprecations, resolved issues, and known issues in this release. If you’re new to developing with our SDK, simply sign up for a free ArcGIS Developer account then go to the Get Started page in the Guide doc.
