Advanced Attribute Rules - Editing features on another class with attribute rules

With ArcGIS Pro 2.4 and Enterprise 10.7.1, we have introduced the ability to author geodatabase attribute rules that edit features on other classes using special dictionary keywords and syntax. This blog will provide an overview of this functionality with examples on how this can be configured. To learn more on the topic, see Attribute rule dictionary keywords in the help. All Arcade scripts and examples are available as a file geodatabase in this blog for you to download and work with here.

Create new features on another class

In this example we have two feature classes: `pointClass` and `polygonClass`. We want to create an attribute rule that accomplishes three goals:

  1. Buffer each point feature created in the pointClass by 40 feet to create a circle polygon.
  2. Insert the polygon buffer geometry into the polygonClass.

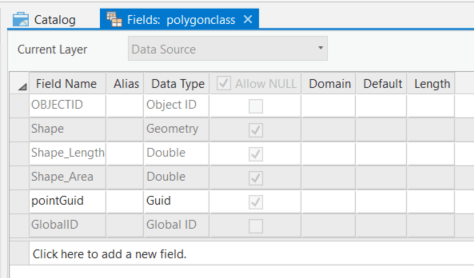

  3. Maintain relation between the two classes through creation of a pointGuid field in the polygonClass which points to the Global ID of the pointClass.
attribute rules geodatabase
attribute rules geodatabase
point feature class
point feature class
polygon class
polygon class

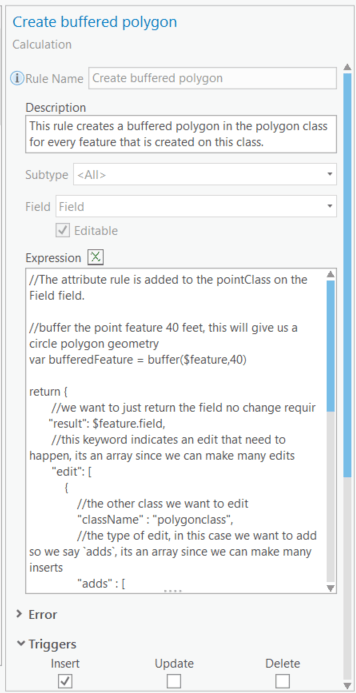

We will create a new immediate calculation attribute rule using the following expression with a triggering event on insert. Make sure to exclude evaluation on the client by checking the option Exclude from application evaluation.

Immediate Attribute Rule
Immediate Attribute Rule

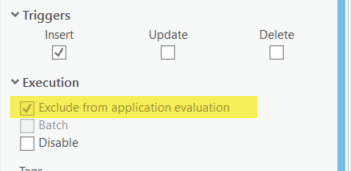

Exclude from application evaluation has to be turned on for any attribute rule that returns dictionary
Exclude from application evaluation has to be turned on for any attribute rule that returns dictionary

//The attribute rule is added to the pointClass on the Field field on insert

//buffer the point feature 40 feet, this will give us a circle polygon geometry
var bufferedFeature = buffer($feature,40)

return {
       //we want to just return the value of field `Field` no change require
      "result": $feature.field,
       //this keyword indicates an edit that need to happen, its an array since we can make many edits
       "edit": [
           {
               //the other class we want to edit
               "className" : "polygonclass",
               //the type of edit, in this case we want to add so we say `adds`, its an array since we can make many inserts
               "adds" : [

                      {
                            //the attribute of the feature we want to add,
                            // we only want to populate the pointGuid with the globalId of the feature being created
                            "attributes":
                             {
                                   "pointGuid": $feature.globalid

                               },
                            //we want to use the buffered geometry to insert the polygon
                            "geometry": bufferedFeature

                      }

             ]


            }

     ]

}

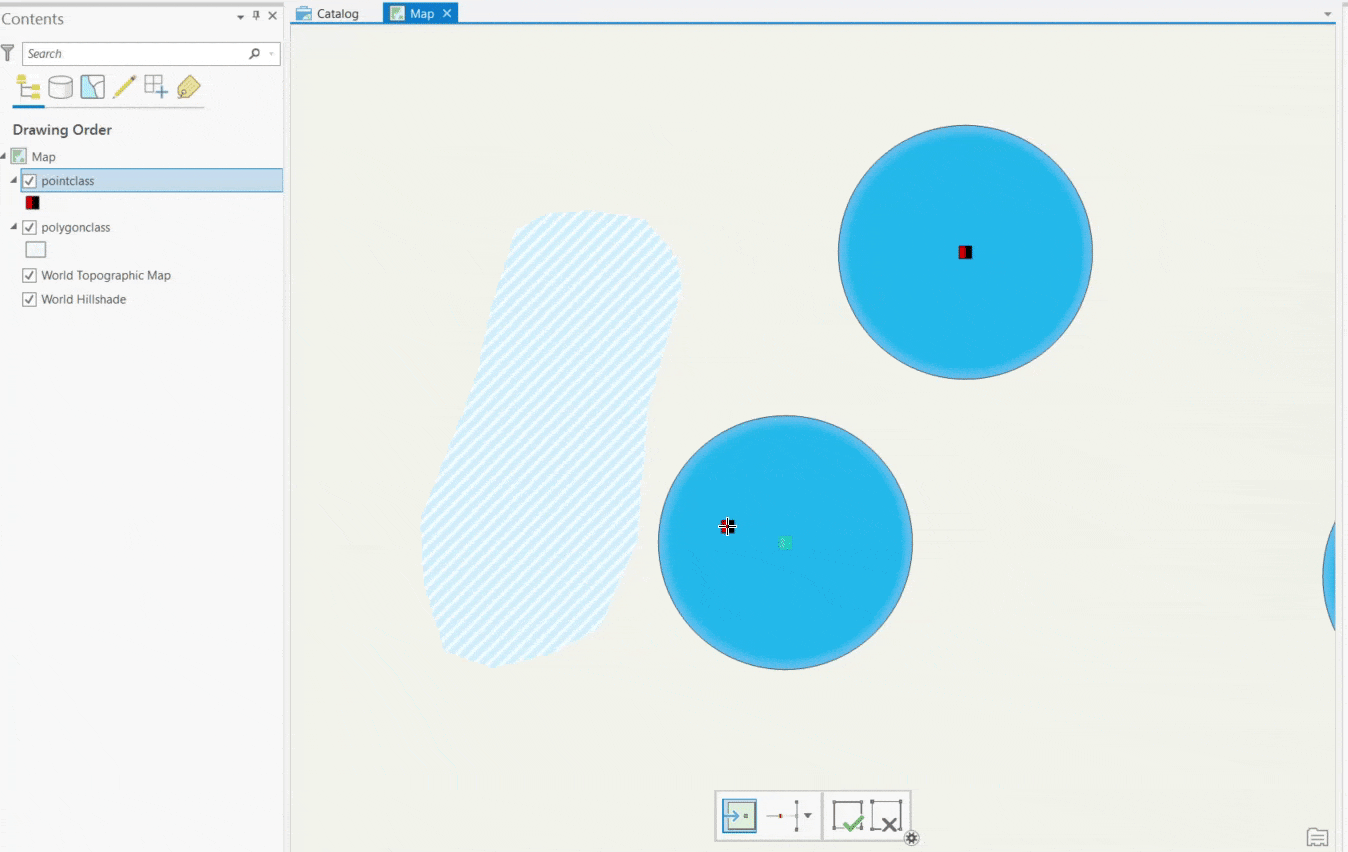

Creating features with attribute rules
Creating features with attribute rules

Note: The `result` key is used to return the value to persist in the field `Field` which the attribute rule is assigned to. In this case I really didn't do anything to the feature being created so I just returned the same value of the field `Field` (I know, terrible name for a field sorry). When returning the same value, the system will detect that there is no change and will not perform an additional edit to the feature. This is useful to avoid triggering behavior associated with the field (if any) such as extension specific behavior, e.g. dirty area management in utility network.



Update existing features in another class

Now we want to add another attribute rule that performs an update. With this rule we want to ensure that the buffered polygon moves along with the point feature when it is moved.  The best solution to achieve this would be to update the buffered polygon feature geometry with a new buffer after the update.




//The attribute rule is added to the pointClass on the Field field on update

//buffer the point feature 40 feet, this will give us a circle polygon geometry
var bufferedGeometry = buffer($feature,40)
//get the guid of the point feature being updated
var globalId = $feature.globalid

//find the buffered geometry feature
var fs = FeatureSetbyName($datastore, "polygonclass")
//by filtering on the pointGuid
var bf = filter(fs, "pointGuid = @globalId")
//if we couldn't find it exit (someone might've deleted it)
if (count(bf) == 0) return $feature.field;
//get the feature row (we should only have one )
var bufferedFeature = first(bf)

return {
      //we want to just return the value of field `Field` no change require
      "result": $feature.field,
      //this keyword indicates an edit that need to happen, its an array since we can make many edits
       "edit": [
           {
              //the other class we want to edit
               "className" : "polygonclass",
               //the type of edit, in this case we want to update so we say `updates`, its an array since we can make many updates
               "updates" : [
                      {
                            //what feature we need to update? we can either find it by the globalid or the objectId
                            "globalID" : bufferedFeature.globalId,
                            //what do we want to update (we can optionally add attributes property and update properties there)
                            "geometry": bufferedGeometry

                     }

             ]


            }
     ]

}

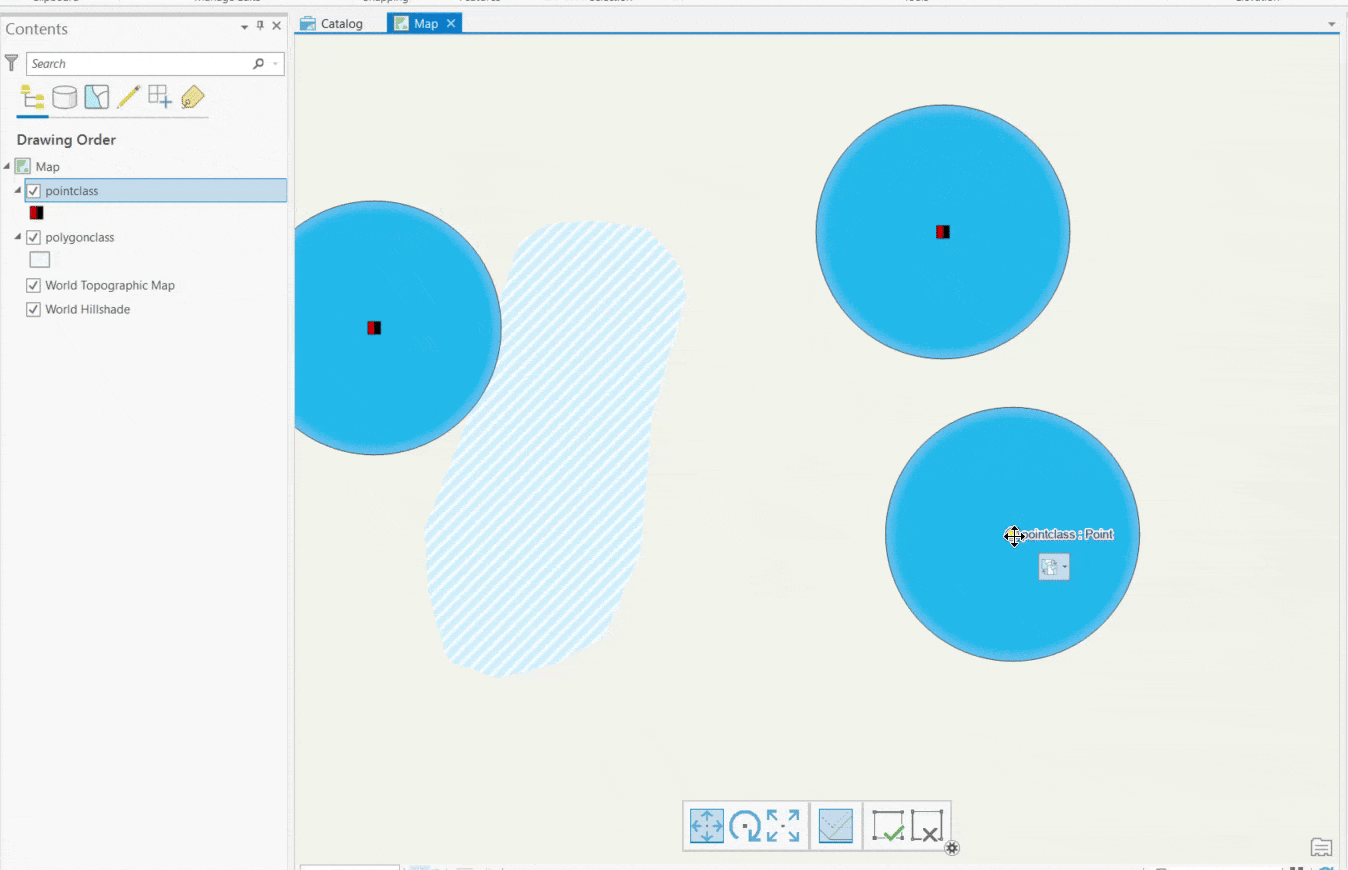

updating features with attribute rules
updating features with attribute rules

Note: This attribute rule will be executed for any update on the point feature. That means we will be updating the geometry of the buffered feature for every update to the point feature and this could be unnecessarily expensive. In ArcGIS Pro 2.5 we will introduce the concept of $originalfeature in Arcade which will allow us to compare the state of the feature before it was edited so we only proceed with the edit if the geometry has change. A following blog will be written detailing this capability.

Delete existing features on another class

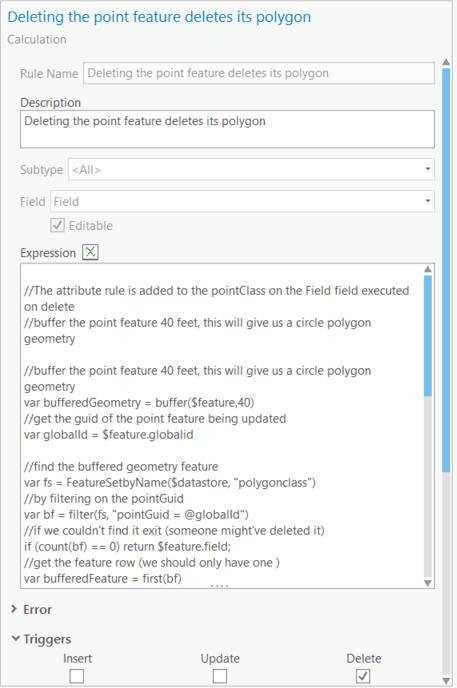

Finally, we want to create an attribute rule that will delete other features.  We want to use the same example used above so that the buffered geometry feature is removed from the polygonClass if the corresponding point feature is removed from pointClass.


//The attribute rule is added to the pointClass on the Field field executed on delete

//buffer the point feature 40 feet, this will give us a circle polygon geometry
var bufferedGeometry = buffer($feature,40)
//get the guid of the point feature being updated
var globalId = $feature.globalid

//find the buffered geometry feature
var fs = FeatureSetbyName($datastore, "polygonclass")
//by filtering on the pointGuid
var bf = filter(fs, "pointGuid = @globalId")
//if we couldn't find it exit (someone might've deleted it)
if (count(bf) == 0) return $feature.field;
//get the feature row (we should only have one )
var bufferedFeature = first(bf)


return {
       //we want to just return the value of field `Field` no change require
      "result": $feature.field,
       //this keyword indicates an edit that need to happen, its an array since we can make many edits
       "edit": [
           {
              //the other class we want to edit
               "className" : "polygonClass",
               //the type of edit, in this case we want to delete so we say `deletes`, its an array since we can make many deletes
               "deletes" : [
                      {
                            //what feature we need to delete?
                            "globalID" : bufferedFeature.globalId
                      }

             ]


            }



     ]

}

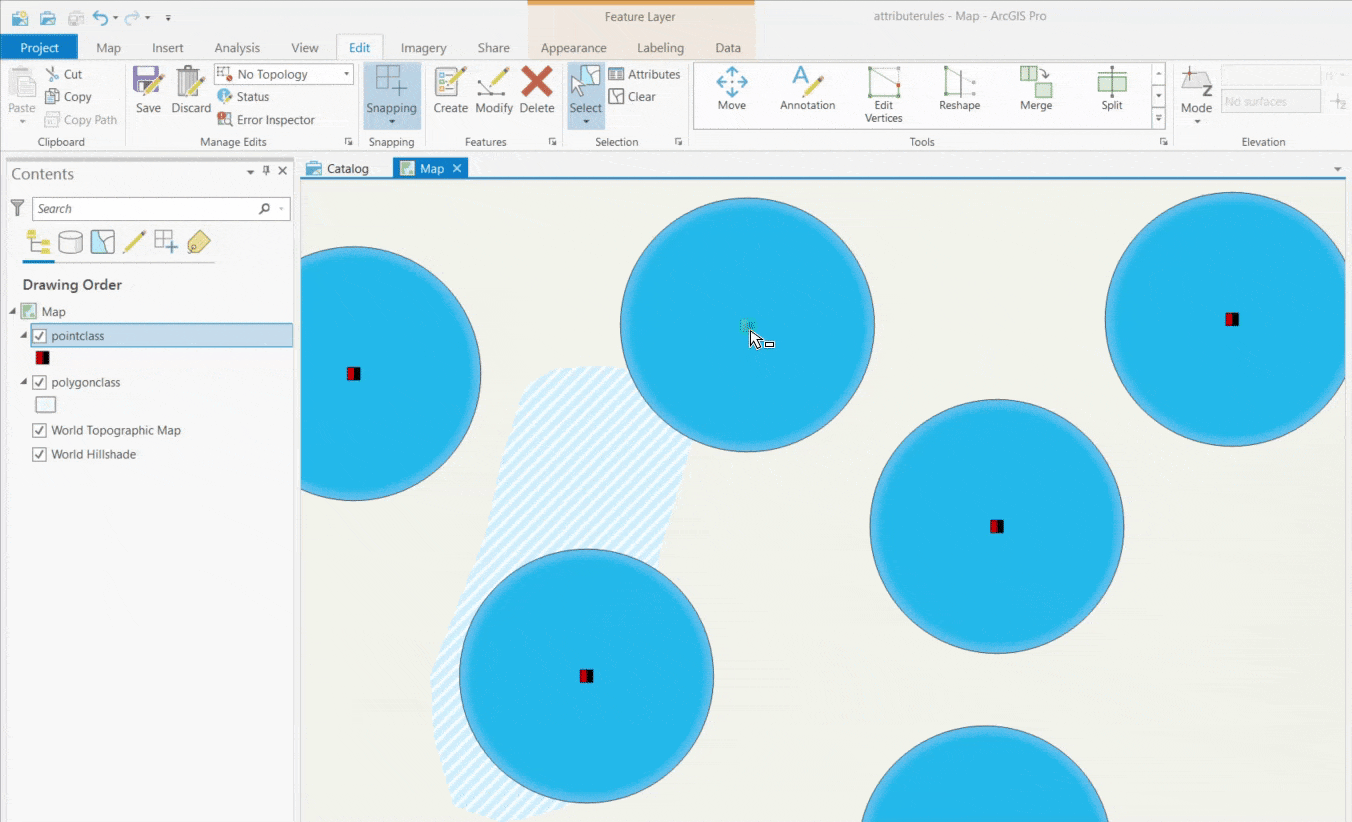

Deleting features with attribute rules
Deleting features with attribute rules

In this blog we outlined the building blocks that can enable you to build interesting and powerful Arcade expressions.  With great power comes great creativity.  Go forth and write cool attribute rules!



You can download the file geodatabase with the examples discussed in this blog here.
